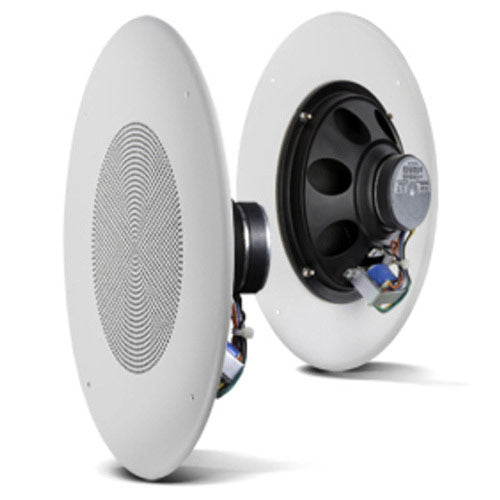

JBL CSS8018 8" Commercial Series Ceiling Speaker
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
JBL's Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.
Features:
- Very high 97 dB sensitivity
- 10 Watt multi-tap transformer for 100V, 70V, and 25V distributed speaker lines
- Driver Size (dual-cone): 200 mm (8 in)
- Driver Sensitivity (mid-range, 1W, 1m): 97 dB
- Frequency Range (installed in CSS backcan): 90 Hz - 16 kHz
- Coverage: 110 degrees
- 100V Taps: 10W, 5W, 2.5W
- 70V Taps: 10W, 5W, 2.5W, 1.3W
- 25V Taps: 10W, 5W, 2.5W, 1.3W
- Connection: Bare wire
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA70, when installed with corresponding UL Listed backcan. S7232/UL LIsted, Signaling Speaker, Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
* Note: Requires CSS-BB8 pre-install backcan
| Driver Size (dual-cone) | 200 mm (8 in) |
| Driver Sensitivity (mid-range) (1W [2.83V], 1m, 2k Ð 6k Hz) | 97 dB |
| Frequency Range (-10 dB) Driver/Grille Assembly: | 50 Hz Ð 17 kHz |
| Frequency Range (-10 dB) Installed in CSS-BB backcan: | 90 Hz Ð 17 kHz |
| Coverage (2 kHz) | 110¡ |
| Driver Continuous Power Handling [Continuous Pink Noise Rating (IEC-shaped pink noise with a 6 dB crest factor, for 100 hrs continuously), 2.83V input level] | 20 Watts |
| 100V Taps | 10W, 5W, 2.5W |
| 70V Taps | 10W, 5W, 2.5W, 1.3W |
| 25V Taps | 10W, 5W, 2.5W, 1.3W |
| Transformer Insertion Loss | 1.5 dB Maximum |
| Transformer Connection | Bare wire |
| Motor Mass | 283 g (10 oz) |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 / NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Matching CSS Backcan | CSS-BB8 (0.15 cu ft) |
| Other Compatible Backcans | MTC-81BB8 (0.26 cu ft) MTC-200BB6 (0.5 cu ft) MTC-300BB8 (1.0 cu ft) |
| Bolt Mounting Circle to Backcan | 4 points on 286 mm (11.25 in) diameter |
Cutout Diameter | 216 mm (8.5 in) |
| Cutout Diameter In CSS-BB backcan : | 295 mm (11.7 in) |
| Depth (behind grille) | 73 mm (2.9 in) |
| Grille Diameter | 327 mm (12.9 in) |
| Net Weight (ea) | 1.58 kg (3.5 lb) |
| Shipping Weight (ea) | 2.25 kg (5.0 lb) |
| Included Accessories | 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan. |
JBL's Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.
Features:
- Very high 97 dB sensitivity
- 10 Watt multi-tap transformer for 100V, 70V, and 25V distributed speaker lines
- Driver Size (dual-cone): 200 mm (8 in)
- Driver Sensitivity (mid-range, 1W, 1m): 97 dB
- Frequency Range (installed in CSS backcan): 90 Hz - 16 kHz
- Coverage: 110 degrees
- 100V Taps: 10W, 5W, 2.5W
- 70V Taps: 10W, 5W, 2.5W, 1.3W
- 25V Taps: 10W, 5W, 2.5W, 1.3W
- Connection: Bare wire
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA70, when installed with corresponding UL Listed backcan. S7232/UL LIsted, Signaling Speaker, Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
* Note: Requires CSS-BB8 pre-install backcan
| Driver Size (dual-cone) | 200 mm (8 in) |
| Driver Sensitivity (mid-range) (1W [2.83V], 1m, 2k Ð 6k Hz) | 97 dB |
| Frequency Range (-10 dB) Driver/Grille Assembly: | 50 Hz Ð 17 kHz |
| Frequency Range (-10 dB) Installed in CSS-BB backcan: | 90 Hz Ð 17 kHz |
| Coverage (2 kHz) | 110¡ |
| Driver Continuous Power Handling [Continuous Pink Noise Rating (IEC-shaped pink noise with a 6 dB crest factor, for 100 hrs continuously), 2.83V input level] | 20 Watts |
| 100V Taps | 10W, 5W, 2.5W |
| 70V Taps | 10W, 5W, 2.5W, 1.3W |
| 25V Taps | 10W, 5W, 2.5W, 1.3W |
| Transformer Insertion Loss | 1.5 dB Maximum |
| Transformer Connection | Bare wire |
| Motor Mass | 283 g (10 oz) |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 / NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Matching CSS Backcan | CSS-BB8 (0.15 cu ft) |
| Other Compatible Backcans | MTC-81BB8 (0.26 cu ft) MTC-200BB6 (0.5 cu ft) MTC-300BB8 (1.0 cu ft) |
| Bolt Mounting Circle to Backcan | 4 points on 286 mm (11.25 in) diameter |
Cutout Diameter | 216 mm (8.5 in) |
| Cutout Diameter In CSS-BB backcan : | 295 mm (11.7 in) |
| Depth (behind grille) | 73 mm (2.9 in) |
| Grille Diameter | 327 mm (12.9 in) |
| Net Weight (ea) | 1.58 kg (3.5 lb) |
| Shipping Weight (ea) | 2.25 kg (5.0 lb) |
| Included Accessories | 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan. |
