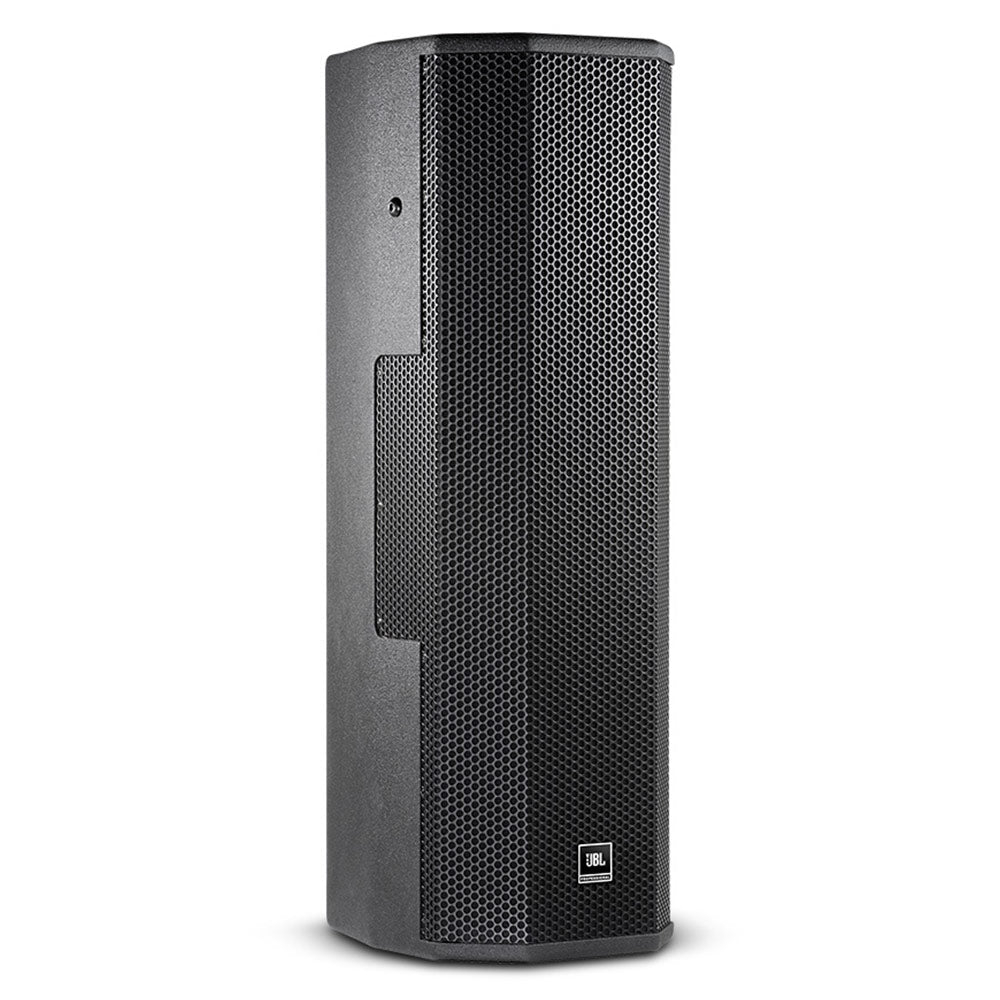

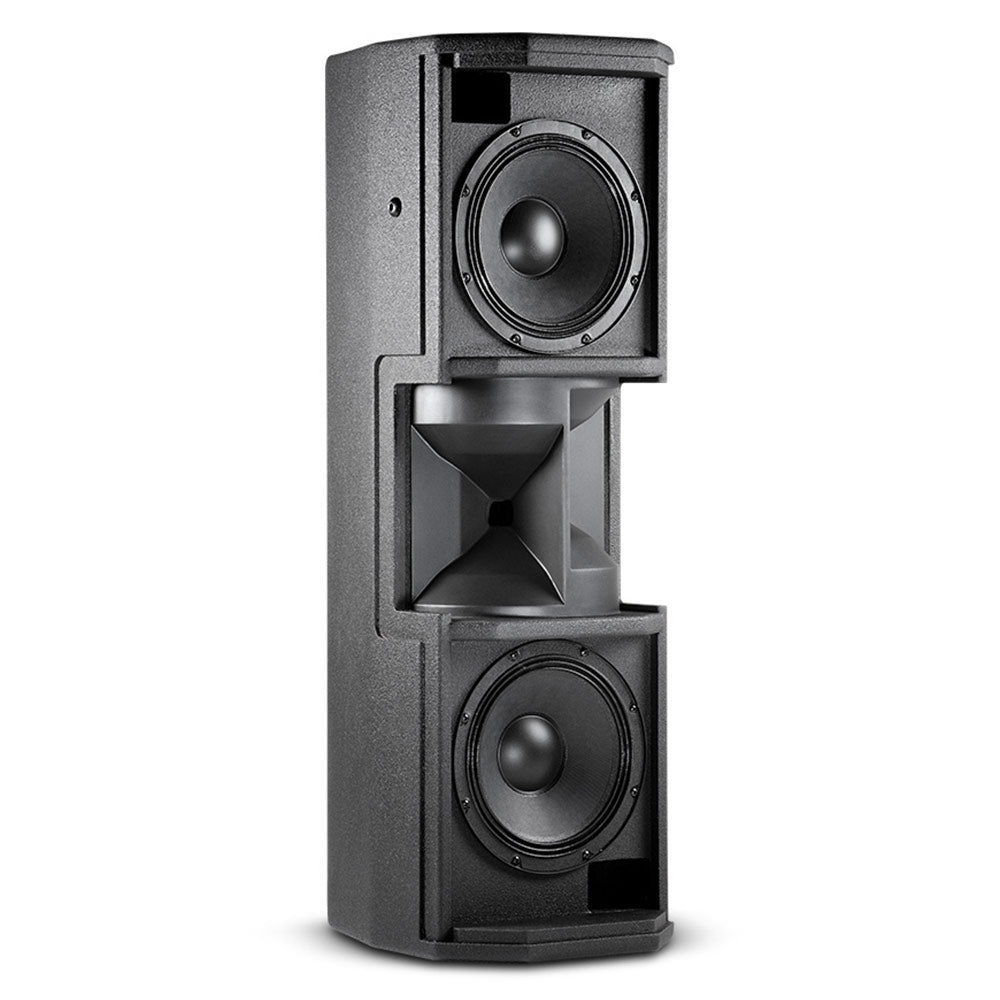

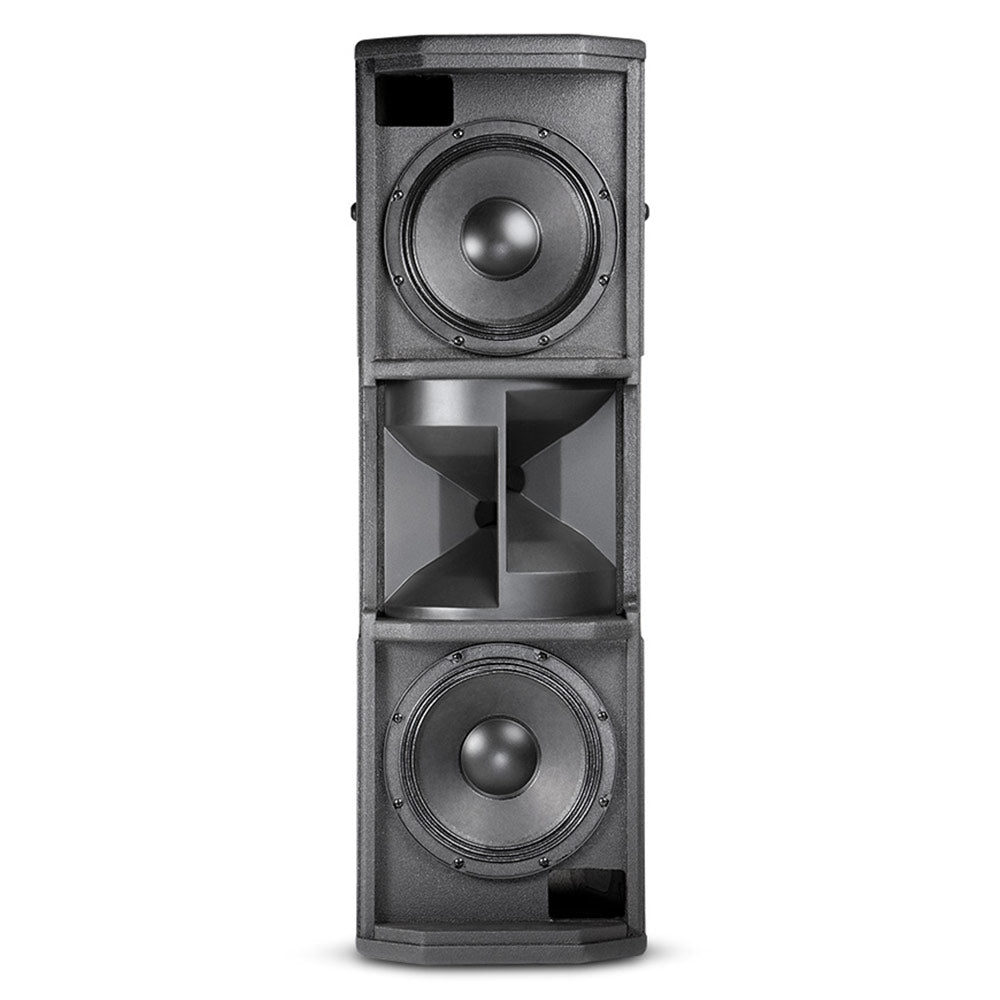

JBL CWT128 Dual 8" 2-Way Extremely Wide-Angle Passive Loudspeaker - Black
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Drawing on its vast experience in the art and science of loudspeaker technology, JBL continually sets new standards for the audio industry while creating elegant solutions for the challenges that face all sound professionals. A typical challenge of many sound reinforcement applications is to provide high quality, full bandwidth sound evenly dispersed across a coverage area greater than 100 degrees. This is often addressed by mounting two speaker systems splayed to achieve wider horizontal coverage. But this approach produces interference where the coverage patterns overlap, resulting in uneven sound fields and compromised intelligibility. JBL engineers created an innovative solution to this problem: the CWT128 Dual 8 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology.
| System Format | Extremely Wide Angle Coverage Dual 8" 2-Way Loudspeaker System |
| Frequency Range (-10 dB) | 71 Hz - 20 kHz |
| Frequency Response (+/-3 dB) | 96 Hz - 19 kHz |
| Coverage Pattern | 160¡ x 60¡ |
| System Sensitivity | 94 dB SPL/1W/1m |
| Rated Maximum SPL (1m) | 129 dB |
| System Nominal Impedance | 8 Ohms |
| Long-Term System Power Rating | 450W (1800W Peak) |
| System Power Rating | 850W/1700W/3400W Continuous/Program/Peak |
| Crossover | 1.5 kHz |
| Low Frequency Driver | 2 x JBL 228J, 205 mm (8 in) SFGª driver with 64 mm (2.5 in) edge wound voice coil |
| High Frequency Driver | 2 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil |

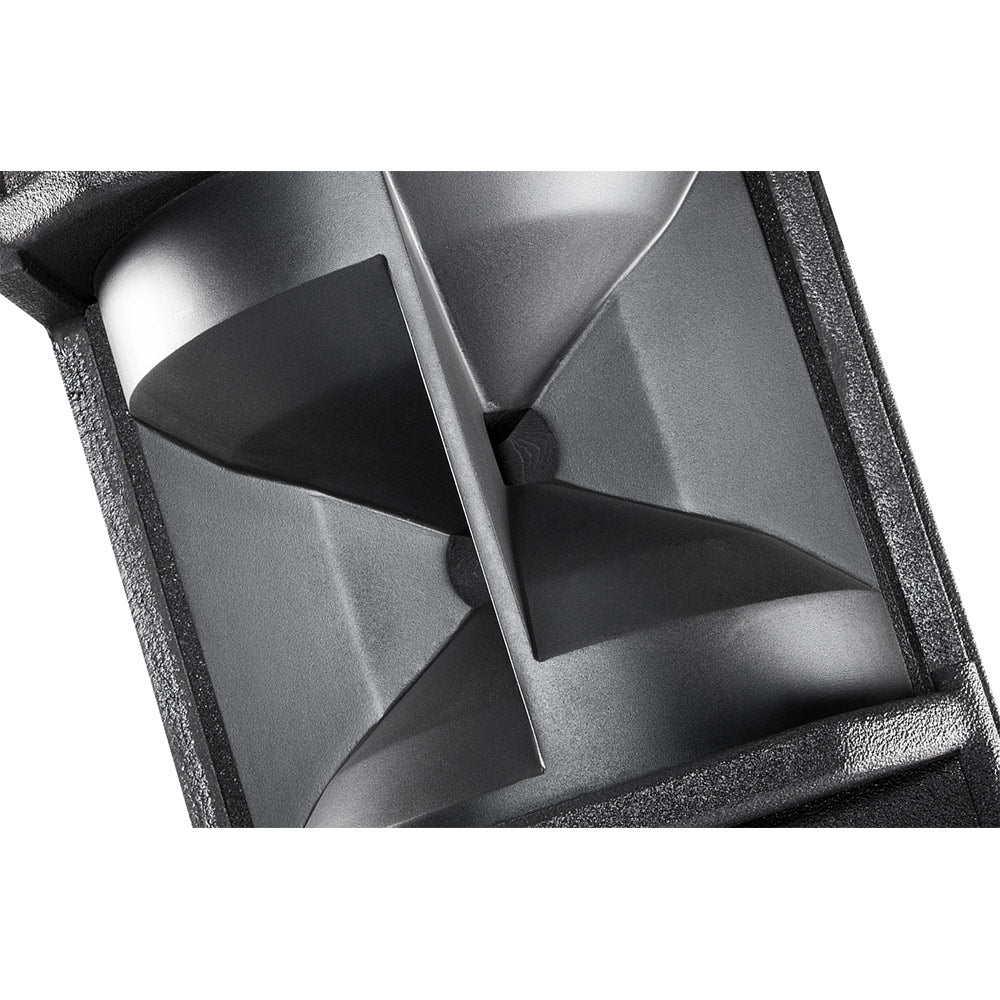

| High-Frequency Waveguide | Crossfired Waveguide |
| Finish | Black DuraFlexª finish. White (-WH) available upon request |
| Dimensions (W x H x D) | 811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in) |
| Weight | 18.6 kg (40.9 lb) |
Drawing on its vast experience in the art and science of loudspeaker technology, JBL continually sets new standards for the audio industry while creating elegant solutions for the challenges that face all sound professionals. A typical challenge of many sound reinforcement applications is to provide high quality, full bandwidth sound evenly dispersed across a coverage area greater than 100 degrees. This is often addressed by mounting two speaker systems splayed to achieve wider horizontal coverage. But this approach produces interference where the coverage patterns overlap, resulting in uneven sound fields and compromised intelligibility. JBL engineers created an innovative solution to this problem: the CWT128 Dual 8 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology.
| System Format | Extremely Wide Angle Coverage Dual 8" 2-Way Loudspeaker System |
| Frequency Range (-10 dB) | 71 Hz - 20 kHz |
| Frequency Response (+/-3 dB) | 96 Hz - 19 kHz |
| Coverage Pattern | 160¡ x 60¡ |
| System Sensitivity | 94 dB SPL/1W/1m |
| Rated Maximum SPL (1m) | 129 dB |
| System Nominal Impedance | 8 Ohms |
| Long-Term System Power Rating | 450W (1800W Peak) |
| System Power Rating | 850W/1700W/3400W Continuous/Program/Peak |
| Crossover | 1.5 kHz |
| Low Frequency Driver | 2 x JBL 228J, 205 mm (8 in) SFGª driver with 64 mm (2.5 in) edge wound voice coil |
| High Frequency Driver | 2 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil |
| High-Frequency Waveguide | Crossfired Waveguide |
| Finish | Black DuraFlexª finish. White (-WH) available upon request |
| Dimensions (W x H x D) | 811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in) |
| Weight | 18.6 kg (40.9 lb) |
