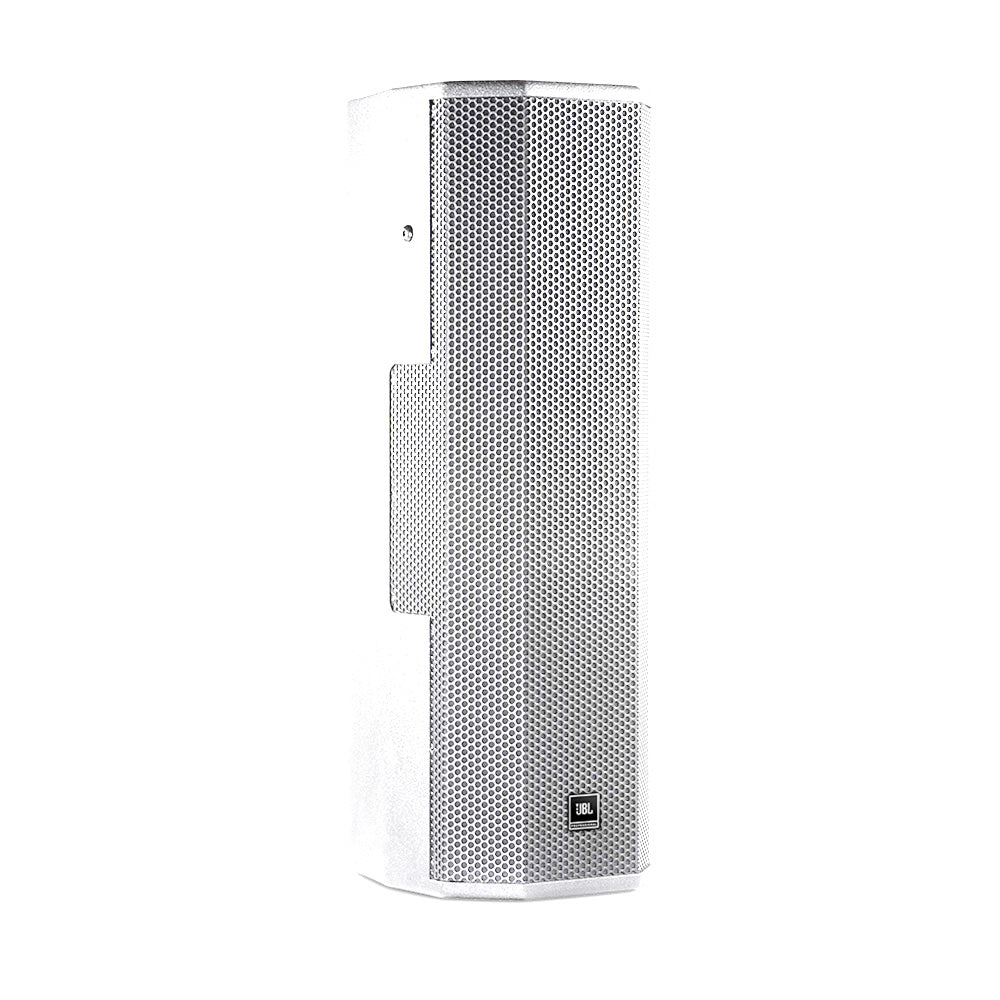

JBL CWT128-WH Dual 8" 2-Way Extremely Wide-Angle Passive Loudspeaker - White


  • Dale #:

    JBL-CWT128WH
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Drawing on its vast experience in the art and science of loudspeaker technology, JBL continually sets new standards for the audio industry while creating elegant solutions for the challenges that face all sound professionals. A typical challenge of many sound reinforcement applications is to prov... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Drawing on its vast experience in the art and science of loudspeaker technology, JBL continually sets new standards for the audio industry while creating elegant solutions for the challenges that face all sound professionals. A typical challenge of many sound reinforcement applications is to provide high quality, full bandwidth sound evenly dispersed across a coverage area greater than 100 degrees. This is often addressed by mounting two speaker systems splayed to achieve wider horizontal coverage. But this approach produces interference where the coverage patterns overlap, resulting in uneven sound fields and compromised intelligibility. JBL engineers created an innovative solution to this problem: the CWT128 Dual 8 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology.

More +

Product Specs

System Format Extremely Wide Angle Coverage Dual 8 2-Way Loudspeaker System
Frequency Range (-10 dB) 71 Hz - 20 kHz
Frequency Response (+/-3 dB) 96 Hz - 19 kHz
Coverage Pattern 160° x 60°
System Sensitivity 94 dB SPL/1W/1m
Rated Maximum SPL (1m) 129 dB
System Nominal Impedance 8 Ohms
Long-Term System Power Rating 450W (1800W Peak)
System Power Rating 850W/1700W/3400W Continuous/Program/Peak
Crossover 1.5 kHz
Low Frequency Driver 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
High Frequency Driver 2 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
High-Frequency Waveguide Crossfired Waveguide
Finish Black DuraFlex™ finish. White (-WH) available upon request
Dimensions (W x H x D) 811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in)
Weight 18.6 kg (40.9 lb)
