JBL GSF6 - Ground-Stake Landscape Loudspeaker (Green)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Priced individually, but sold in pairs.
The mid-size, weather-resistant JBL GSF6 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 6-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 30-watt multi-tap transformer for use on 70V/100V distributed systems and is switchable for 8-ohm direct operation.

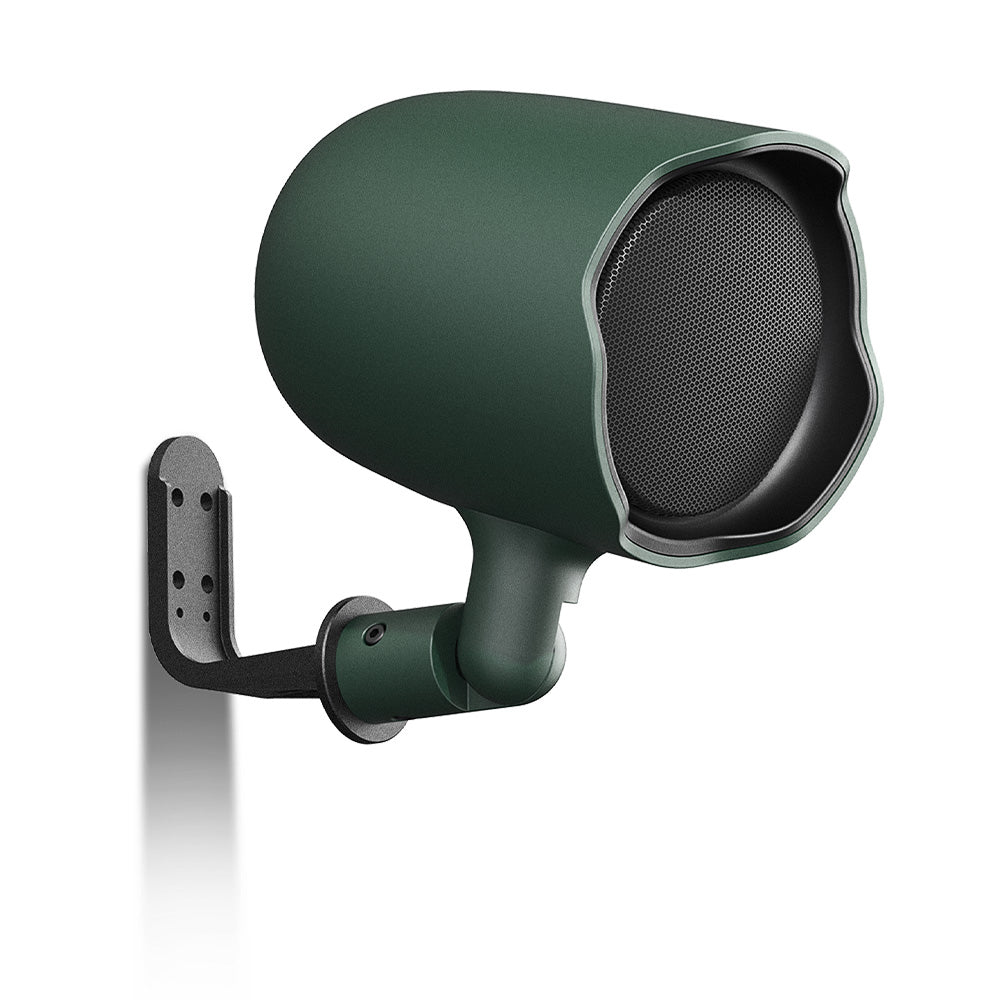

Versatile mounting options include a ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces (both are included). A low-profile, unobtrusive speaker, the GSF6 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.
The elegant, discreet GSF6-winner of the prestigious RedDot international design award for industrial design excellence-is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.
Features:
- Transducers: 165 mm (6.5") woofer with polypropylene cone and 25 mm (1") voice coil on aluminum voice coil former; 25 mm (1.0") titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former
- Frequency range: 65 Hz-20 kHz
- Power handling (at 8 ohm setting): 50W continuous pink noise, 100W continuous program
- Multi-tap 30W transformer is switchable for 8 ohm direct operation or use in 70V/100V distributed systems
- IP56 rated against water and dust ingress
- Bottom drip hole provides drainage for drivers
- Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
- Aimable via adjustable hinge

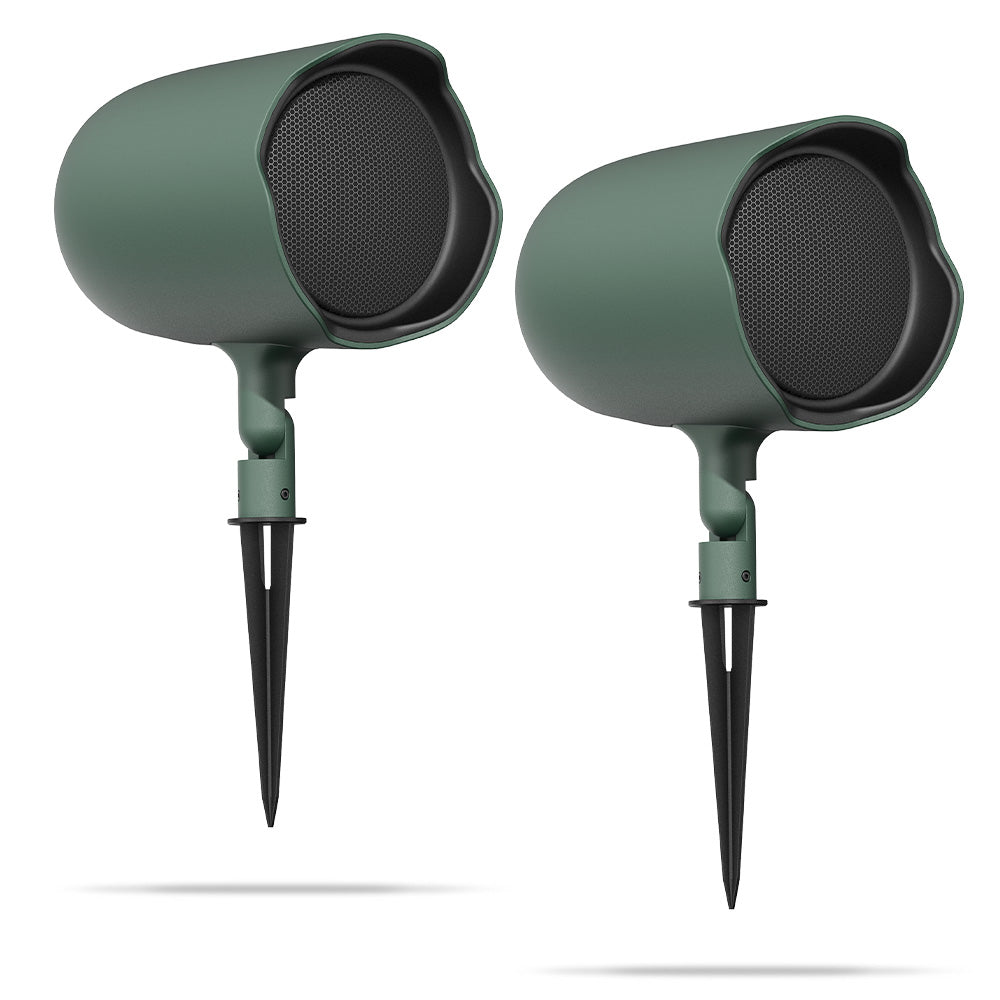

- Includes ground stake and L-bracket for surface mounting
- Includes tap selector located on bottom of speaker, away from water incursion
- UL1480A listed
- Available in hunter green or tan finish
| Frequency Range (-10dB) | 65 Hz - 20 kHz |
| Frequency Response (+/-3 dB) | 95 Hz - 20 kHz |
| Power Rating | 100 W Continuous Program (2 hrs) 50 W (200 W Peak), Continuous Pink Noise (2 hrs) 30 W (120 W Peak), Continuous Pink Noise (100 hrs) |
| Sensitivity | 88 dB (ave. 2 kHz - 20 kHz) |
| Maximum SPL | 111 dB peak (105 dB continuous, 2 hr) @ 1m |
| Nominal Coverage | 70 deg. conical |
| Nominal Impedance | 8 ohm (at 8 ohm tap) |
| Transformer Taps | 70V: 30 W, 15 W, 7.5 W 100V: 30W, 15 W |
| Drivers |
|
| Terminals | Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG) |
| Enclosure Material | Polycarbonate + ABS, UL94V-0 flammability rated |
| Color | Hunter Green RAL 6018, or Tan RAL7004 |
| Dimensions | Cabinet 217mm height/diameter x 293mm depth (8.6 x 11.6 in) |
| Net Weight | 3.5 kg (7.7 lbs) |
| Included Accessories | (1) Ground Stake Bracket; (1) L-Bracket |
Priced individually, but sold in pairs.
The mid-size, weather-resistant JBL GSF6 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 6-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 30-watt multi-tap transformer for use on 70V/100V distributed systems and is switchable for 8-ohm direct operation.
Versatile mounting options include a ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces (both are included). A low-profile, unobtrusive speaker, the GSF6 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.
The elegant, discreet GSF6-winner of the prestigious RedDot international design award for industrial design excellence-is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.
Features:
- Transducers: 165 mm (6.5") woofer with polypropylene cone and 25 mm (1") voice coil on aluminum voice coil former; 25 mm (1.0") titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former
- Frequency range: 65 Hz-20 kHz
- Power handling (at 8 ohm setting): 50W continuous pink noise, 100W continuous program
- Multi-tap 30W transformer is switchable for 8 ohm direct operation or use in 70V/100V distributed systems
- IP56 rated against water and dust ingress
- Bottom drip hole provides drainage for drivers
- Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
- Aimable via adjustable hinge
- Includes ground stake and L-bracket for surface mounting
- Includes tap selector located on bottom of speaker, away from water incursion
- UL1480A listed
- Available in hunter green or tan finish
| Frequency Range (-10dB) | 65 Hz - 20 kHz |
| Frequency Response (+/-3 dB) | 95 Hz - 20 kHz |
| Power Rating | 100 W Continuous Program (2 hrs) 50 W (200 W Peak), Continuous Pink Noise (2 hrs) 30 W (120 W Peak), Continuous Pink Noise (100 hrs) |
| Sensitivity | 88 dB (ave. 2 kHz - 20 kHz) |
| Maximum SPL | 111 dB peak (105 dB continuous, 2 hr) @ 1m |
| Nominal Coverage | 70 deg. conical |
| Nominal Impedance | 8 ohm (at 8 ohm tap) |
| Transformer Taps | 70V: 30 W, 15 W, 7.5 W 100V: 30W, 15 W |
| Drivers |
|
| Terminals | Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG) |
| Enclosure Material | Polycarbonate + ABS, UL94V-0 flammability rated |
| Color | Hunter Green RAL 6018, or Tan RAL7004 |
| Dimensions | Cabinet 217mm height/diameter x 293mm depth (8.6 x 11.6 in) |
| Net Weight | 3.5 kg (7.7 lbs) |
| Included Accessories | (1) Ground Stake Bracket; (1) L-Bracket |
