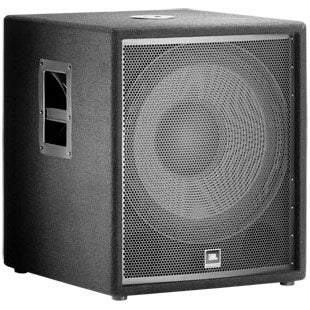

JBL JRX218S 18" Compact Passive Subwoofer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
JBL JRX218S 18" Compact Passive Subwoofer
Sale price$659.00
Regular price$814.18
Description
The JRX218S is driven by a massive JBL 18 woofer with a cast frame and 3 voice-coil.
Features:
- 18 in. compact subwoofer.
- 350 W (continuous), 1400 W (peak) power capacity.
- The rugged enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for durability and improved low-frequency performance. The enclosure is covered in black carpet.
- A top mounted, cast aluminum 35 mm pole mount receptacle can receive an optional SS3BK pole to facilitate use of the JRX218S as a base for a midhigh speaker cabinet.
- Non-resonant, all steel handles are used.
- Attractive 18-gauge perforated steel grille protects components from damage.
| Power Rating | 350 W / 1400 W |
| Frequency Range (-10 dB) | 38 Hz - 300 Hz |
| Frequency Response (+/-3 dB) | 55 Hz - 300 Hz |
| Sensitivity (@1m) | 96 dB SPL |
| Nominal Impedance | 4 Ohms |
| Recommended Amplifier Power | 350 W to 700 W into 4 ohms |
| Recommended Crossover Settings | 30 Hz HPF, 24 dB / octave; 80 - 100 Hz LPF, 24 dB / octave |
| Maximum SPL | 127 dB |
| Dimensions (H x W x D) | 605 mm x 508 mm x 551 mm (23.5 in x 20.3 in x 22 in) |
| Weight | 40.4 kg (89 lb) |
| Low Frequency Driver | JBL 2043-G |
| Input Connectors | Neutrik¨ Speakon¨ NL-4 (x1); .25 in TS phone jack (x1); parallel |
The JRX218S is driven by a massive JBL 18 woofer with a cast frame and 3 voice-coil.
Features:
- 18 in. compact subwoofer.
- 350 W (continuous), 1400 W (peak) power capacity.
- The rugged enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for durability and improved low-frequency performance. The enclosure is covered in black carpet.
- A top mounted, cast aluminum 35 mm pole mount receptacle can receive an optional SS3BK pole to facilitate use of the JRX218S as a base for a midhigh speaker cabinet.
- Non-resonant, all steel handles are used.
- Attractive 18-gauge perforated steel grille protects components from damage.
| Power Rating | 350 W / 1400 W |
| Frequency Range (-10 dB) | 38 Hz - 300 Hz |
| Frequency Response (+/-3 dB) | 55 Hz - 300 Hz |
| Sensitivity (@1m) | 96 dB SPL |
| Nominal Impedance | 4 Ohms |
| Recommended Amplifier Power | 350 W to 700 W into 4 ohms |
| Recommended Crossover Settings | 30 Hz HPF, 24 dB / octave; 80 - 100 Hz LPF, 24 dB / octave |
| Maximum SPL | 127 dB |
| Dimensions (H x W x D) | 605 mm x 508 mm x 551 mm (23.5 in x 20.3 in x 22 in) |
| Weight | 40.4 kg (89 lb) |
| Low Frequency Driver | JBL 2043-G |
| Input Connectors | Neutrik¨ Speakon¨ NL-4 (x1); .25 in TS phone jack (x1); parallel |
