DALE SKU # JBL-JRX225

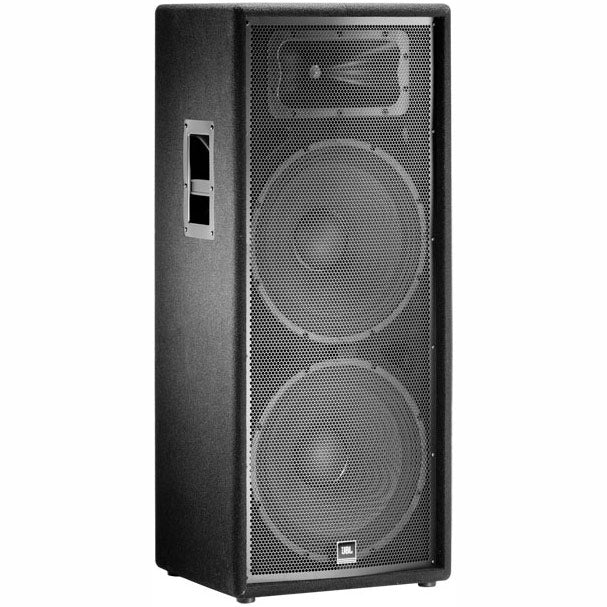

JBL JRX225 Dual 15" Two-Way Passive Loudspeaker

Sale price$629.00 Regular price$733.29
Save $104.29
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The JRX225 is a portable, dual fifteen-inch, two-way speaker syste m designed specifically for applications in live music performance and music playback. The dual fifteen configuration is especially useful for application s in which additional low-frequency power and extension is needed but adding a subwoofer to the system is not practical.

    Features:

    • Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
    • JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
    • The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
    • A Quasi 3-Way design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
    • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
    • Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
    • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
    • SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
    • Non-resonant, all-steel handles are used.
    • Attractive 18-gauge perforated, steel grille protects components from damage.
    Power Rating500 W / 2000 W
    Frequency Range (-10 dB)36 Hz - 19 kHz
    Frequency Response (+/-3 dB)45 Hz - 16 kHz
    Sensitivity (@1m)100 dB SPL (1w/1m)
    Nominal Impedance4 Ohms
    Recommended Amplifier Power500 W to 1000 W into 4 ohms
    Maximum SPL133 dB
    Nominal Dispersion90¼ x 50¼
    Crossover Frequency2 kHz
    Dimensions (H x W x D)1092 mm x 464 mm x 426 mm (43 in x 18.3 in x 16.8 in)
    Weight42.6 kg (94 lb)
    High Frequency DriverJBL 2414H-C 25mm (1 in) polymer diaphragm compression driver mounted on Progressive Transitionª Waveguide
    Low Frequency DriverJBL M128 x 2
    Input ConnectorsNeutrik¨ Speakon¨ NL-4 (x1); .25 in TS phone jack (x1); parallel

    The JRX225 is a portable, dual fifteen-inch, two-way speaker syste m designed specifically for applications in live music performance and music playback. The dual fifteen configuration is especially useful for application s in which additional low-frequency power and extension is needed but adding a subwoofer to the system is not practical.

    Features:

    • Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
    • JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
    • The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
    • A Quasi 3-Way design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
    • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
    • Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
    • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
    • SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
    • Non-resonant, all-steel handles are used.
    • Attractive 18-gauge perforated, steel grille protects components from damage.
    Power Rating500 W / 2000 W
    Frequency Range (-10 dB)36 Hz - 19 kHz
    Frequency Response (+/-3 dB)45 Hz - 16 kHz
    Sensitivity (@1m)100 dB SPL (1w/1m)
    Nominal Impedance4 Ohms
    Recommended Amplifier Power500 W to 1000 W into 4 ohms
    Maximum SPL133 dB
    Nominal Dispersion90¼ x 50¼
    Crossover Frequency2 kHz
    Dimensions (H x W x D)1092 mm x 464 mm x 426 mm (43 in x 18.3 in x 16.8 in)
    Weight42.6 kg (94 lb)
    High Frequency DriverJBL 2414H-C 25mm (1 in) polymer diaphragm compression driver mounted on Progressive Transitionª Waveguide
    Low Frequency DriverJBL M128 x 2
    Input ConnectorsNeutrik¨ Speakon¨ NL-4 (x1); .25 in TS phone jack (x1); parallel
