JBL MTC-CBT-70T-WH Bolt-On Transformer Module - White

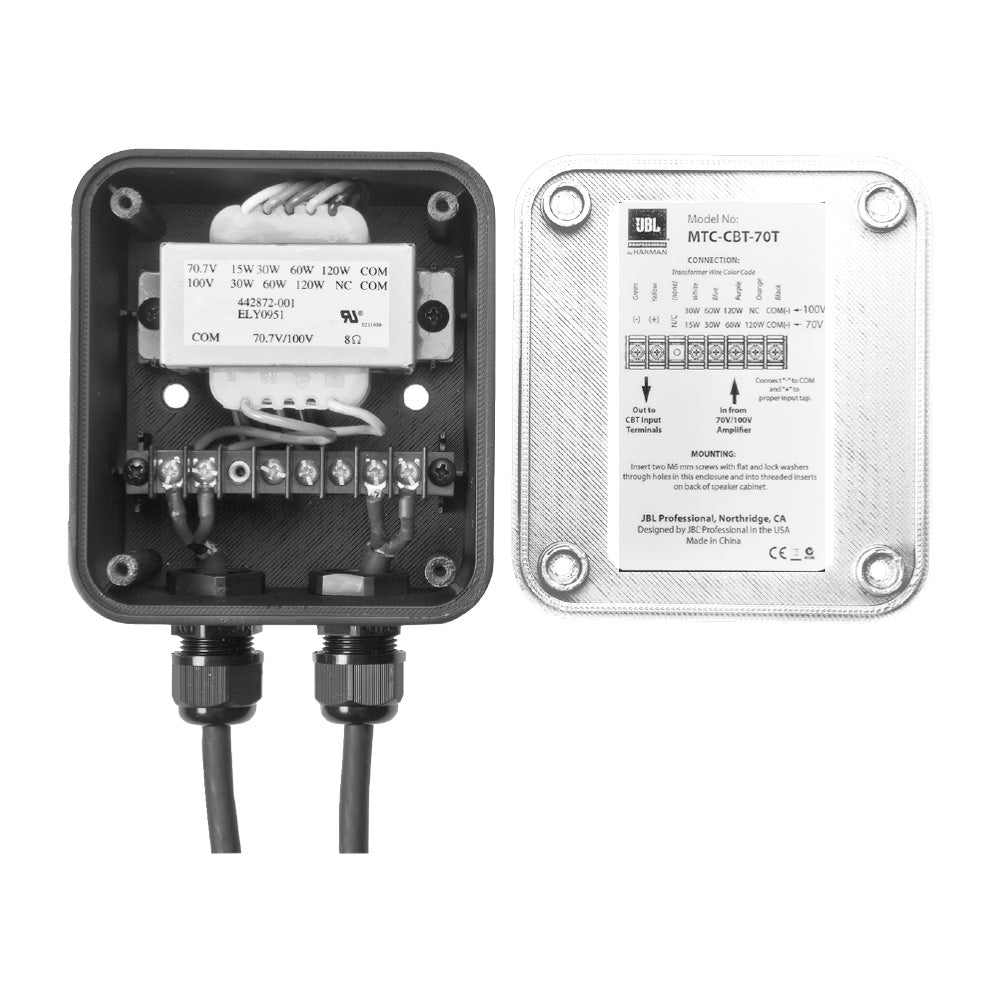

The MTC-CBT-70T is a bolt-on transformer module to adapt CBT 70J-1 and CBT 70JE-1 (and CBT 70J-1/JE-1 arrays) for use on distributed loudspeaker lines. It allows long cable runs and multiple speakers to be driven from a single distributed system amplifier channel. Transformer taps include 120W, 60W, and 30W for 70V and 100V distributed lines, plus 15W for 70V only.

Features:

• Adapts the CBT 70J-1 (and 70JE-1) for Use on Distributed Speaker Lines
• 120W, 60W, 30W for 70V or 100V (plus 15W for 70V)
• Bolts onto Back of CBT 70J-1 or 70JE-1 Speaker
• Gland Nuts Provide Water Tight Seal
