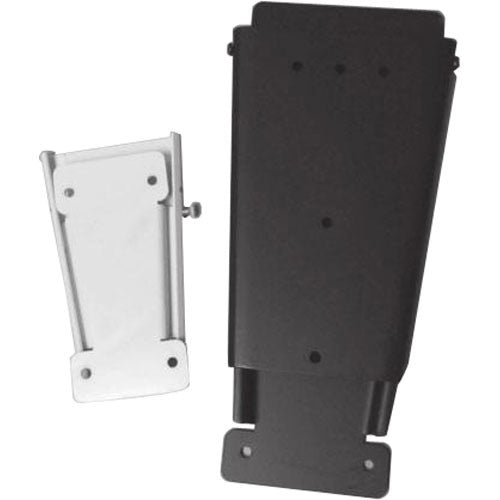

JBL MTC-CBT-FM1 Flush Mount Bracket for CBT50LA-1/CBT100LA-1 (Black)


  • Dale #:

    JBL-MTCCBTFM1
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Features Provides Low-Profile, Close-to-Wall Mounting Brackets for JBL CBT Line Array Column Speakers Drop-In Ease of Assembly with Set Screw(s) for Secure Installation ROHS-Compliant Zinc Plating for Weather Resistance For Mounting Speaker in Typical Vertical Orientation (not for Horizontal Orien... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Features

  • Provides Low-Profile, Close-to-Wall Mounting Brackets for JBL CBT Line Array Column Speakers
  • Drop-In Ease of Assembly with Set Screw(s) for Secure Installation
  • ROHS-Compliant Zinc Plating for Weather Resistance
  • For Mounting Speaker in Typical Vertical Orientation (not for Horizontal Orientation)
  • Available in Black or White (-WH)
  • For Use with CBT 50LA-1 and CBT 100LA-1.
  • Loudspeaker-Mount Section of bracket attaches to the included insert points on the back panel of the speaker (using the M6x15 mm bolts, flat washers & lock washers that come with the speaker). Mounting points are at 107.6 mm x 50.8 mm (4-1/4 x 2 inch) spacing.
  • Wall-Mount Section has 3 aligned holes vertically; 3 aligned holes horizontally.
  • Loudspeaker-Mount Section drops easily into Wall-Mount Section. Set screw holds securely.
  • 2.25 mm thick (13-Gauge AWG) Metal
  • Bracket assembly spaces back of speaker within 16 mm (0.62 inches) of wall (typical).
