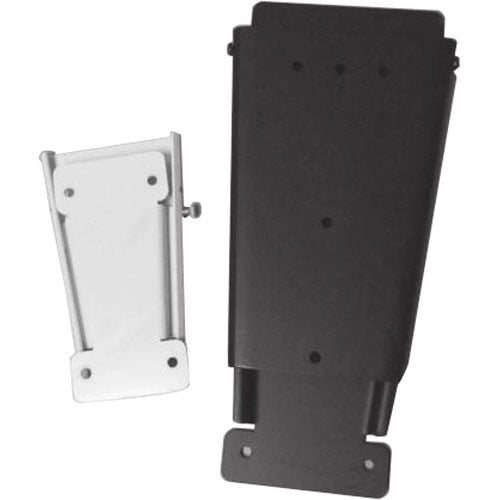

JBL MTC-CBT-FM1-WH Flush Mount Bracket for CBT50LA-1/CBT100LA-1 (White)


  • Dale #:

    JBL-MTCCBTFM1WH
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

Features Provides Low-Profile, Close-to-Wall Mounting Brackets for JBL CBT Line Array Column Speakers Drop-In Ease of Assembly with Set Screw(s) for Secure Installation ROHS-Compliant Zinc Plating for Weather Resistance For Mounting Speaker in Typical Vertical Orientation (not for Horizontal Orien... Read More

Free Shipping (orders over $50)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Features

  • Provides Low-Profile, Close-to-Wall Mounting Brackets for JBL CBT Line Array Column Speakers
  • Drop-In Ease of Assembly with Set Screw(s) for Secure Installation
  • ROHS-Compliant Zinc Plating for Weather Resistance
  • For Mounting Speaker in Typical Vertical Orientation (not for Horizontal Orientation)
  • Available in Black or White (-WH)
  • For Use with CBT 50LA-1 and CBT 100LA-1.
  • Loudspeaker-Mount Section of bracket attaches to the included insert points on the back panel of the speaker (using the M6x15 mm bolts, flat washers & lock washers that come with the speaker). Mounting points are at 107.6 mm x 50.8 mm (4-1/4 x 2 inch) spacing.
  • Wall-Mount Section has 3 aligned holes vertically; 3 aligned holes horizontally.
  • Loudspeaker-Mount Section drops easily into Wall-Mount Section. Set screw holds securely.
  • 2.25 mm thick (13-Gauge AWG) Metal
  • Bracket assembly spaces back of speaker within 16 mm (0.62 inches) of wall (typical).
