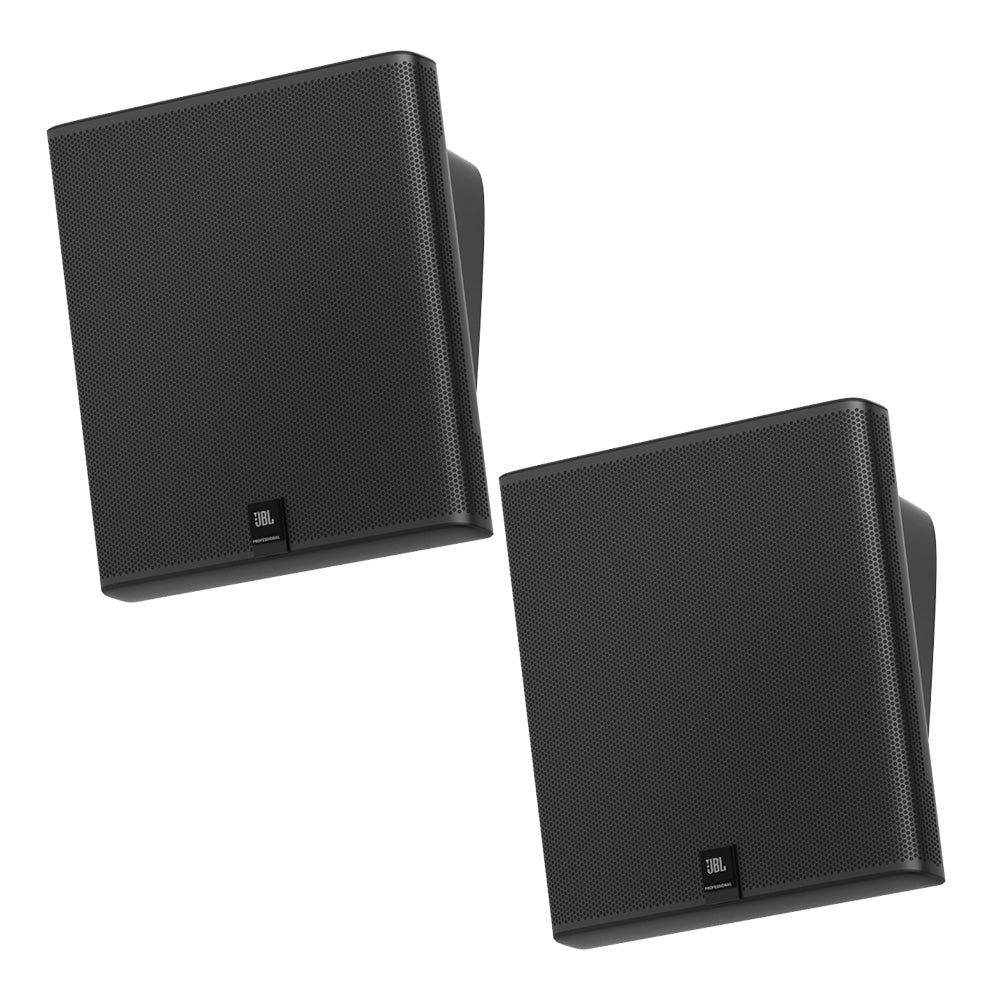

JBL SLP12/T - On-Wall Low-Profile Install Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The SLP12/T full-range on-wall loudspeaker provides superior sound and broad, consistent coverage in a sleek, low-profile enclosure, with a powerful 75mm (3-inch) driver that delivers the legendary sound that JBL is known for. The SLP12/T is an ideal foundation for a range of applications: It features a 15-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation; voicing matches well with JBL Control 12C/T ceiling speaker for consistent sound character, allowing mixing and matching within a single system. This compact-yet-robust speaker boasts 40-watt power handling, delivering clean, clear sound at any volume.
Installation is fast and easy using the included slide-in wall bracket; 15 deg. down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker-winner of the RedDot international design award for industrial design excellence-complements any dŽcor and is available in black or white finishes.
The stylish, highly versatile JBL SLP12/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.
Features:
- Transducer: 75 mm (3 in) full-range
- Power handling: 30W continuous pink noise, 60W continuous program

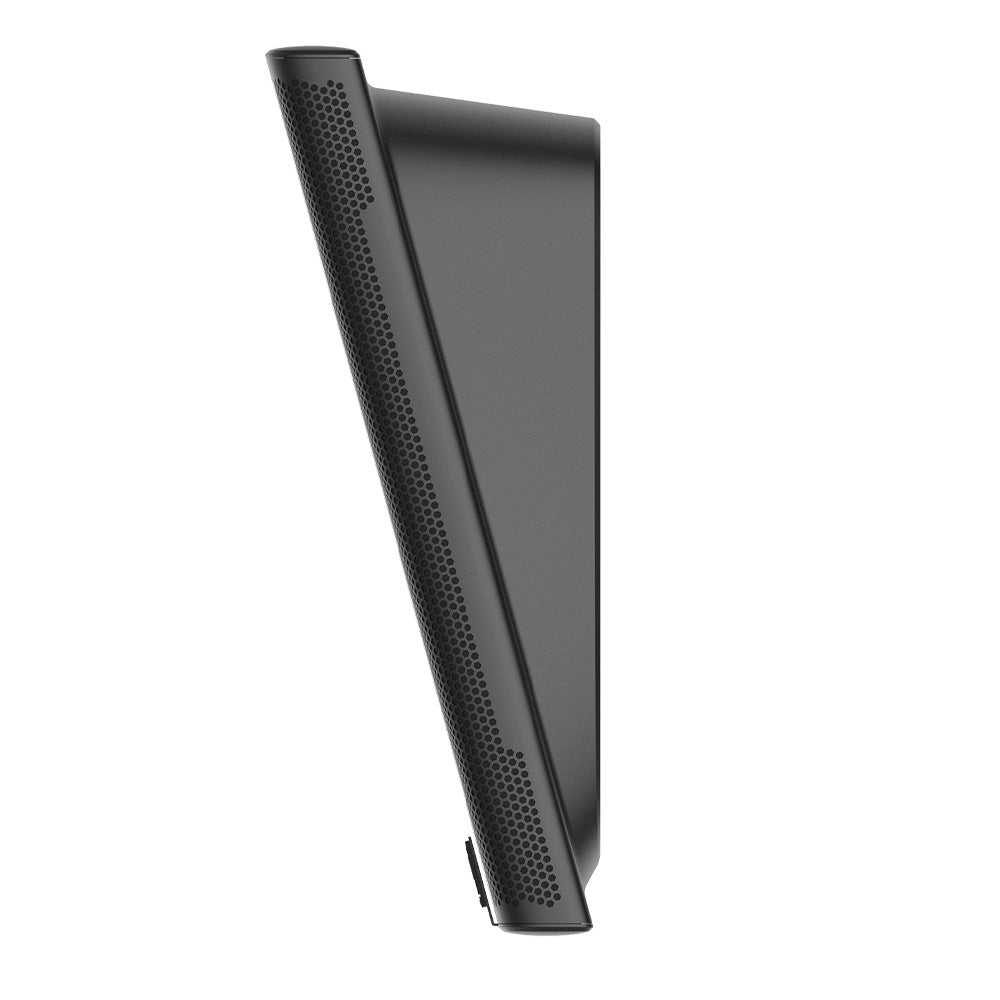

- 15 deg. down-tilted coverage allows flush-to-wall mounting

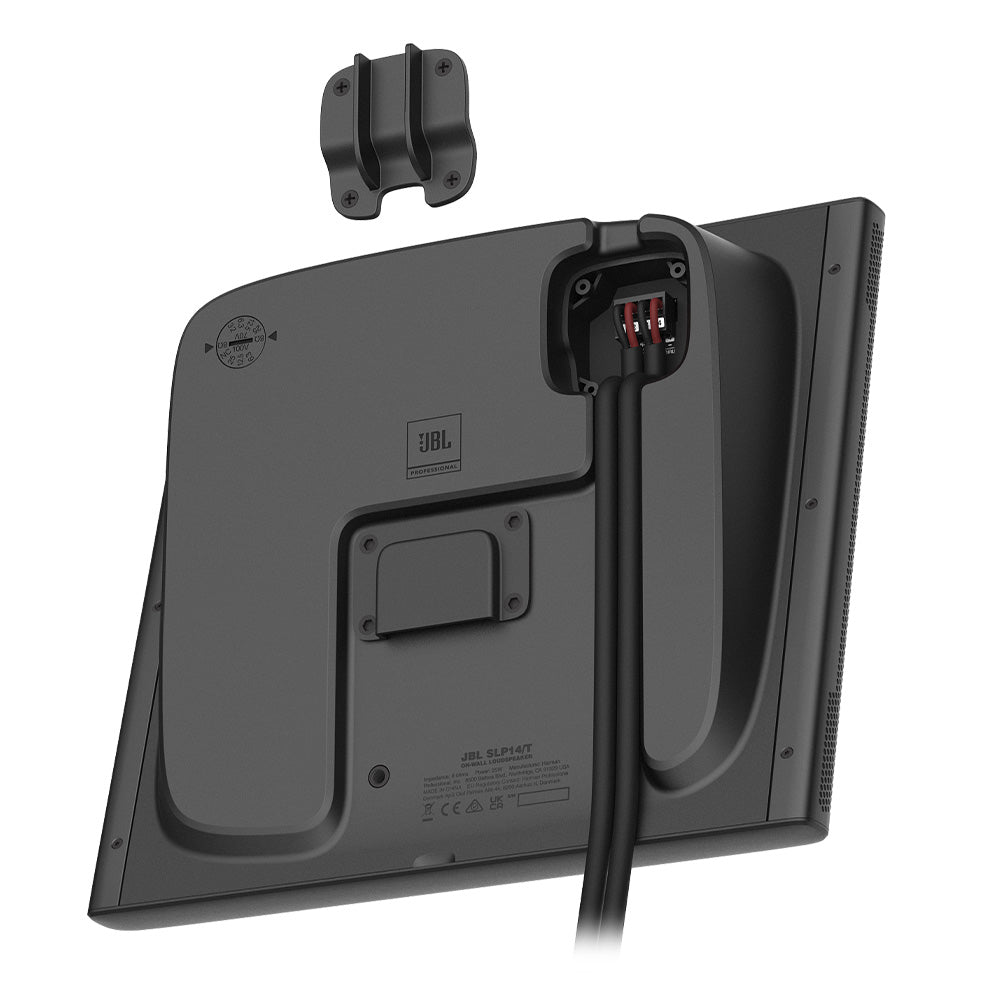

- Included slide-in wall bracket makes installation a breeze
- Sonically matched to JBL Control 12C/T ceiling speakers
- Included rain cover protects terminal compartment in protected outdoor applications
- Multi-tap transformer for use in 70V/100V systems
- ADA-compliant at less than 4 inches deep
- Available in black or white finishes
| Frequency Range (-10dB) | 90 Hz - 20 kHz |
| Frequency Response (+/-3 dB) | 110 Hz - 15 kHz |
| Power Rating | 60 W Continuous Program (2 hrs) 30 W (160 W Peak), Continuous Pink Noise (2 hrs) 20 W (80 W Peak), Continuous Pink Noise (100 hrs) |
| Sensitivity | 84 dB (80 Hz - 20 kHz) half-space (mounted on a wall) |
| Maximum SPL | 105 dB peak (99 dB continuous, 2 hr) @ 1m |
| Nominal Coverage | 130 deg. horizontal x 130 deg. vertical |
| Directivity Factor (Q) | 6.1 |
| Directivity Index (DI) | 7.8 dB |
| Nominal Impedance | 8 ohm (at 8 ohm tap setting) |
| Transformer Taps | 70V: 15 W, 7.5 W, 3.8 W, 1.9W 100V: 15 W, 7.5W, 3.8W |
| Driver | 75mm (3 in) full-range driver, polypropylene cone 20 mm (0.8 in) voice coil on Kapton» voice coil former |
| Terminals | Terminals 4-pin Euroblock connector for bare wire |
| Enclosure Material | Polycarbonate + ABS, UL94V-0 flammability rated |
| Color | Black or white |
| Dimensions | 248mm wide x 230mm high x 100mm deep (9.8 x 9.1 x 3.9 in) |
| Net Weight | 2.1kg (4.6 lbs.) |
| Included Accessories | Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use. |
Priced individually, but sold in pairs.
The SLP12/T full-range on-wall loudspeaker provides superior sound and broad, consistent coverage in a sleek, low-profile enclosure, with a powerful 75mm (3-inch) driver that delivers the legendary sound that JBL is known for. The SLP12/T is an ideal foundation for a range of applications: It features a 15-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation; voicing matches well with JBL Control 12C/T ceiling speaker for consistent sound character, allowing mixing and matching within a single system. This compact-yet-robust speaker boasts 40-watt power handling, delivering clean, clear sound at any volume.
Installation is fast and easy using the included slide-in wall bracket; 15 deg. down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker-winner of the RedDot international design award for industrial design excellence-complements any dŽcor and is available in black or white finishes.
The stylish, highly versatile JBL SLP12/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.
Features:
- Transducer: 75 mm (3 in) full-range
- Power handling: 30W continuous pink noise, 60W continuous program
- 15 deg. down-tilted coverage allows flush-to-wall mounting
- Included slide-in wall bracket makes installation a breeze
- Sonically matched to JBL Control 12C/T ceiling speakers
- Included rain cover protects terminal compartment in protected outdoor applications
- Multi-tap transformer for use in 70V/100V systems
- ADA-compliant at less than 4 inches deep
- Available in black or white finishes
| Frequency Range (-10dB) | 90 Hz - 20 kHz |
| Frequency Response (+/-3 dB) | 110 Hz - 15 kHz |
| Power Rating | 60 W Continuous Program (2 hrs) 30 W (160 W Peak), Continuous Pink Noise (2 hrs) 20 W (80 W Peak), Continuous Pink Noise (100 hrs) |
| Sensitivity | 84 dB (80 Hz - 20 kHz) half-space (mounted on a wall) |
| Maximum SPL | 105 dB peak (99 dB continuous, 2 hr) @ 1m |
| Nominal Coverage | 130 deg. horizontal x 130 deg. vertical |
| Directivity Factor (Q) | 6.1 |
| Directivity Index (DI) | 7.8 dB |
| Nominal Impedance | 8 ohm (at 8 ohm tap setting) |
| Transformer Taps | 70V: 15 W, 7.5 W, 3.8 W, 1.9W 100V: 15 W, 7.5W, 3.8W |
| Driver | 75mm (3 in) full-range driver, polypropylene cone 20 mm (0.8 in) voice coil on Kapton» voice coil former |
| Terminals | Terminals 4-pin Euroblock connector for bare wire |
| Enclosure Material | Polycarbonate + ABS, UL94V-0 flammability rated |
| Color | Black or white |
| Dimensions | 248mm wide x 230mm high x 100mm deep (9.8 x 9.1 x 3.9 in) |
| Net Weight | 2.1kg (4.6 lbs.) |
| Included Accessories | Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use. |
