JBL SRX812 Two-Way 12" Passive Loudspeaker

  • Dale #:

    JBL-SRX812
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

SRX812 is a two-way full range passive portable speaker with a 12" woofer made for use as a light-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX812 is an ideal solution for musicians, bands, and DJs, concert u... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

SRX812 is a two-way full range passive portable speaker with a 12" woofer made for use as a light-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX812 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.

Features:

  • Premium JBL Transducers
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 41Hz-20kHz
  • Frequency Response: 57Hz-20kHz
  • Max SPL: 135dB
  • Coverage Pattern: 90 x 50
  • Amplification options: Passive/Bi-Amp

PURPOSEFUL DESIGN

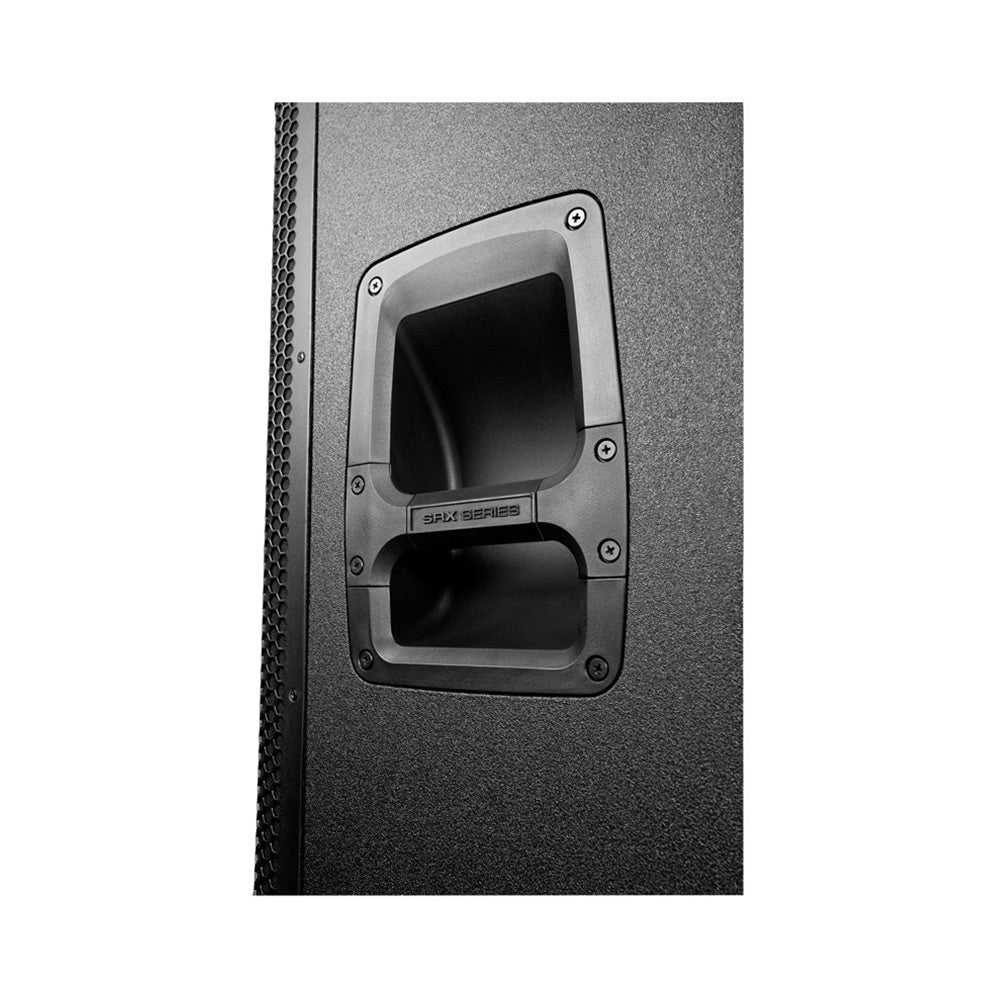

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

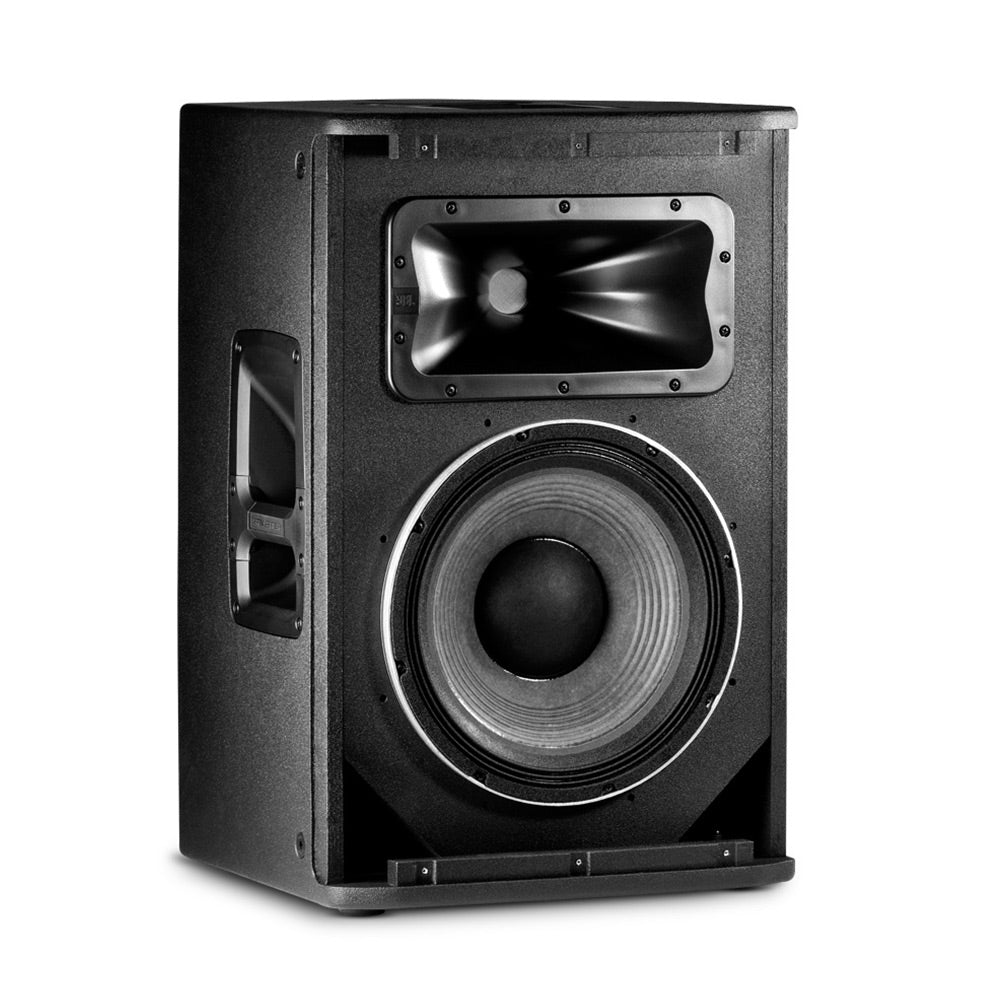

JBL's patented Differential Drive Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL's 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

APPLICATIONS

  • Live performance systems
  • Mobile and fixed DJ systems
  • Sound system rental and tour
  • Permanent installations

More +

Product Specs

System Type Passive 12”, two-way, bass-reflex
Maximum SPL Output 135dB
Frequency Range (-10dB) 41hz - 20khz
Frequency Response (- 3dB) 57hz - 20khz
Sensitivity (1W/1m) 95 dB
System Power Rating 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance 8 Ohm
Connectors NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
LF Driver 2272H
HF Driver 2432H
Coverage Pattern 90 x 50
Crossover Frequency 1.9khz
Enclosure Material 18mm plywood
Monitor Angle 50°
Suspension/Mounting Dual 36mm pole socket, 12 x M10 Suspension points
Handles 3
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (L x W x H) 16.87" x 16.31" x 25.11" (429mm x 415mm x 638mm)
Weight 55.0 lbs (24.9kg)
Shipping Weight 65 lbs (29.3kg)
