DALE SKU # JBL-SRX818S

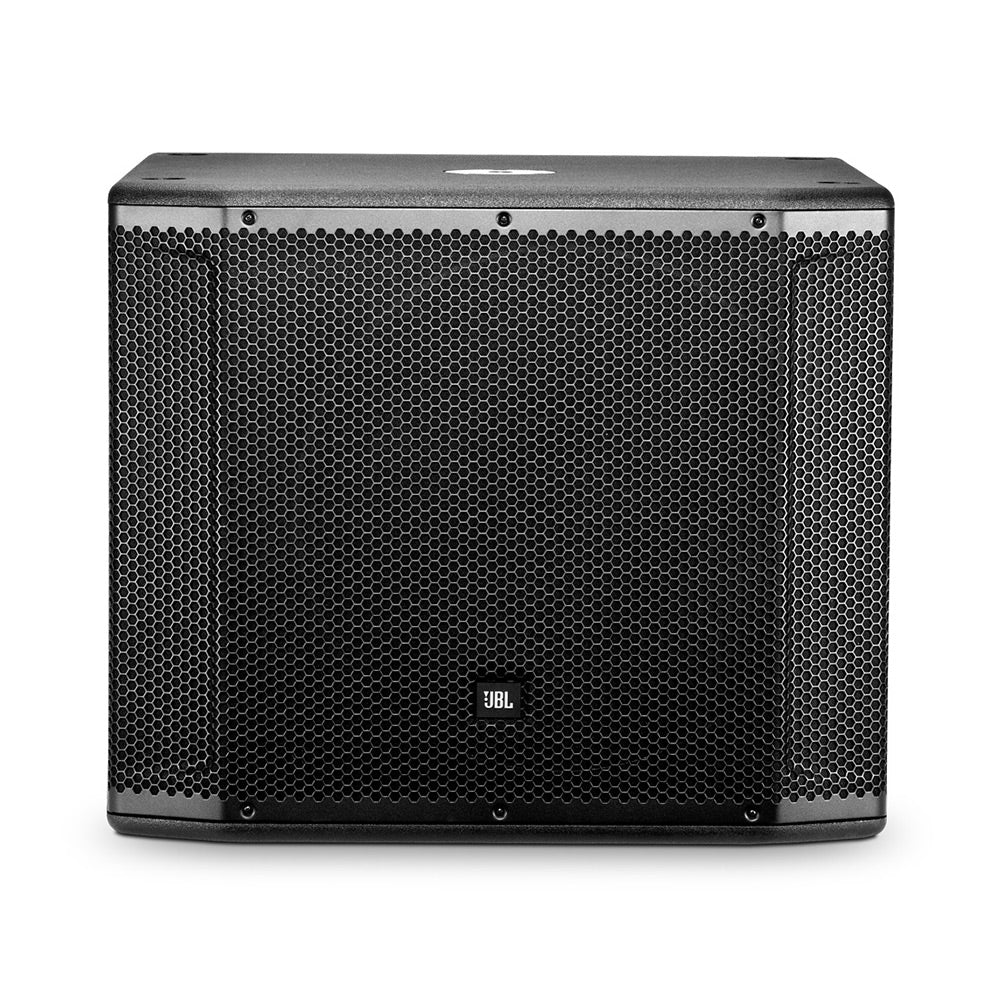

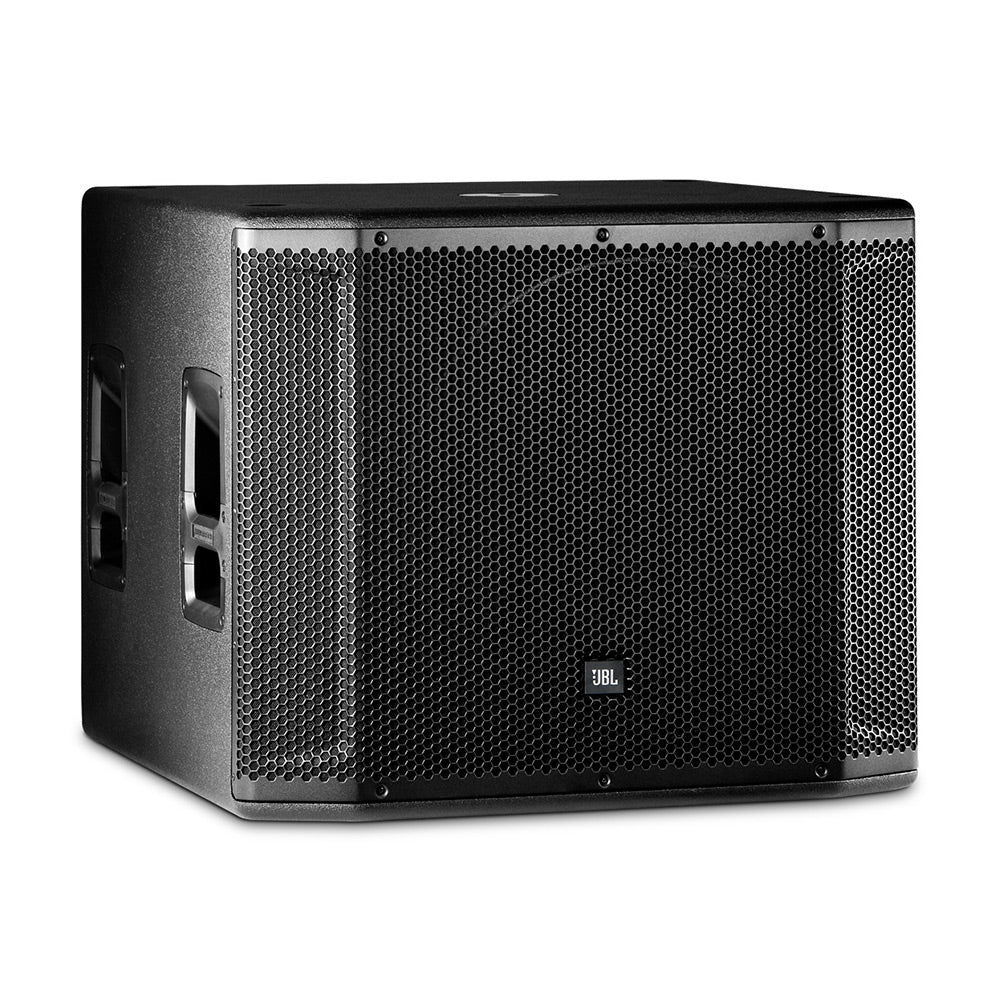

JBL SRX818S Passive 18" Subwoofer

Sale price$1,639.00 Regular price$2,048.75
Save $409.75
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    SRX818S is a single 18" subwoofer for concert, touring, or installed use. Featuring a standard M20 pole cup for use with top boxes, indexing feet for stacking in both the standard and cardioid position, and a 136dB max SPL, the SRX818S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.

    Features:

    • Premium JBL Transducers
    • Rugged, versatile enclosures
    • Tunings available for Crown amps and dbx signal processors
    • Fully supported in Audio Architect
    • Power Handling: 2400W Peak, 1200W Program, 600W Continuous
    • Frequency Range: 28Hz-150Hz
    • Frequency Response: 45Hz-150Hz
    • Max SPL: 135dB
    • Amplification options: Passive

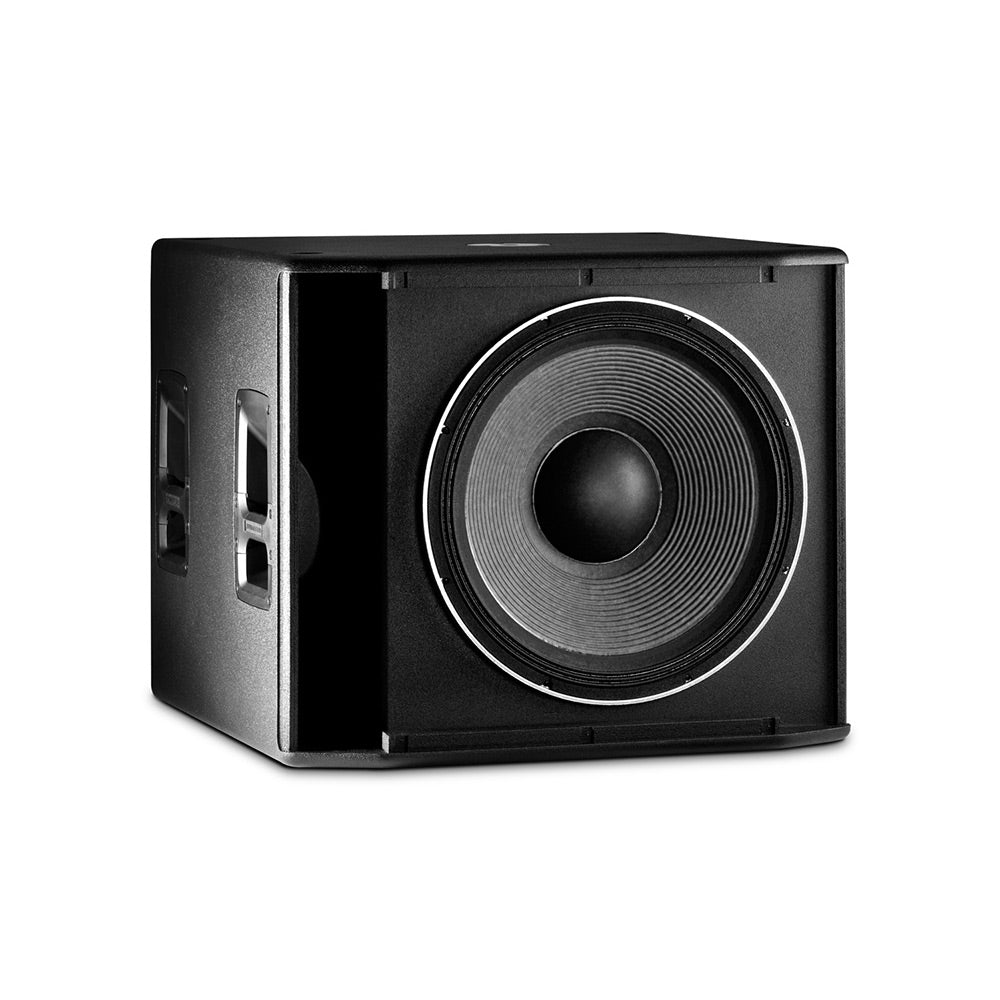

    • 2279 LF 8 Ohm 18" Woofer

    PURPOSEFUL DESIGN
    Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

    TRANSDUCER TECHNOLOGY
    JBL's patented Differential Drive Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL's 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

    APPLICATIONS

    • Live performance systems
    • Mobile and fixed DJ systems
    • Sound system rental and tour
    • Permanent installations
    System Type Passive 18”, subwoofer system
    Maximum SPL Output 135dB
    Frequency Range (-10dB) 28hz - 150hz
    Frequency Response (- 3dB) 45hz - 150hz
    Sensitivity (1W/1m) 96dB
    System Power Rating 2400W Peak , 1200W Program, 600W Continuous
    Nominal Impedance 8 Ohm

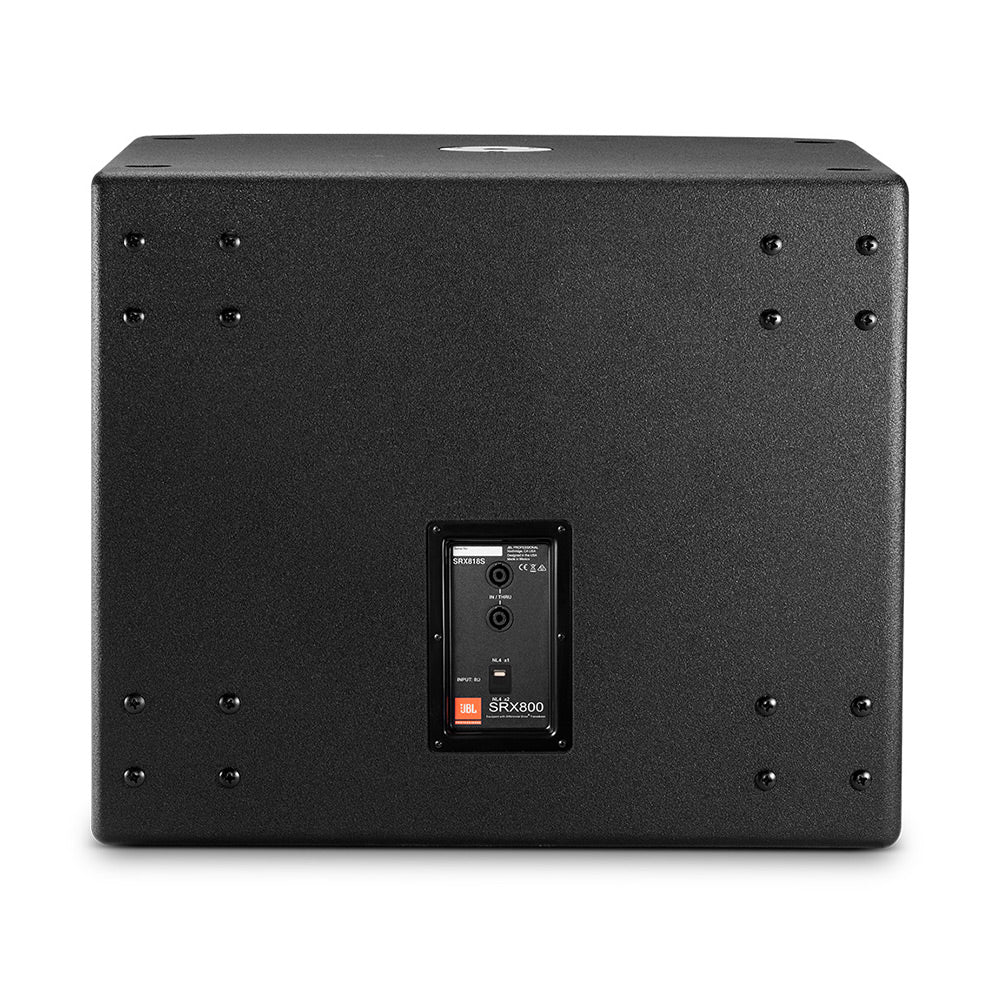

    Connectors NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
    Operational Modes Passive
    LF Driver 2279H
    Crossover Frequency 80hz
    Enclosure Material 18mm plywood
    Suspension/Mounting M20 Threaded Pole Mount
    Casters Accepts JBL WK-4S Kit
    Handles 4
    Finish Obsidian Duraflexª finish
    Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
    Dimensions (L x W x H) 26.89" x 26.92" x 22.62" (683mm x 684mm x 575mm)
    Weight 78.0 lbs (35.4kg)
    Shipping Weight 88 lbs (40.2kg)
