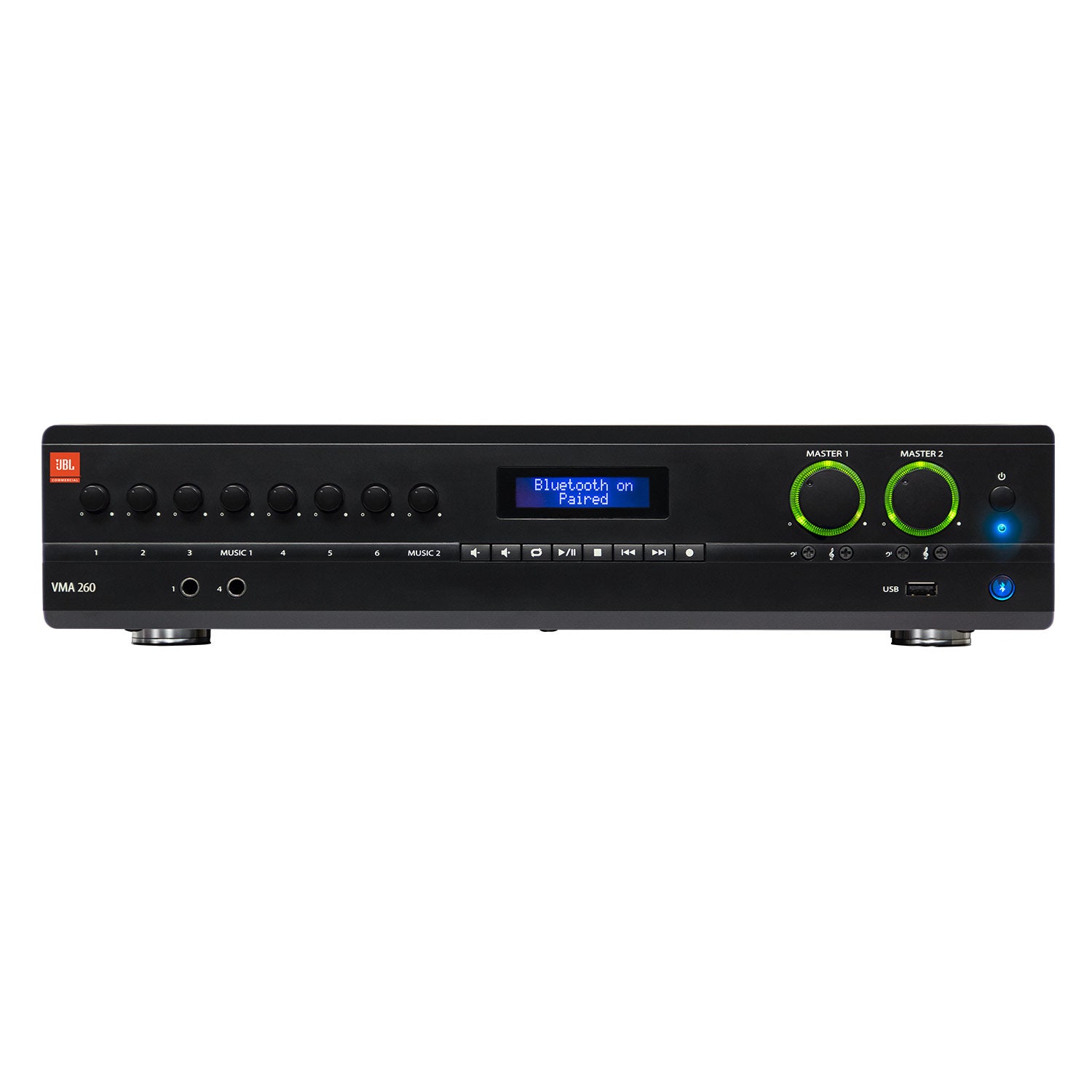

JBL VMA260 Commercial 8-Input 60-Watt Mixer Amplifier
JBL VMA260 Commercial 8-Input 60-Watt Mixer Amplifier
DALE SKU # JBL-VMA260

JBL VMA260 Commercial 8-Input 60-Watt Mixer Amplifier

Sale price$960.00

  • Availability:

    Special Order Item

  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

    • LET OUR TEAM OF EXPERTS ASSIST YOU

    Call Us Chat With Us

    Description

    The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4Ω, 8Ω) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

    Features:

    • 8 inputs with 2 outputs of 60 watts of power
    • Independent bass and treble controls for each output channel
    • 100V and 70V output, or 4Ω/8Ω
    • Paging Chime, and Priority muting
    • Works with JBL CSR-V wall controllers
    • Balanced mic/line inputs; RCA (.775V) inputs
    • Rack mounting hardware included
    Max Output Power per Channel into 4 ½ or 8 ½; 1kHz, ² 0.5% THD - VMA260: 60W
    Insertion Loss (70V or 100V outputs) 1dB maximum
    Number of Inputs 8
    Number of Outputs 2
    Tone Controls (Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
    Input Sensitivity (to obtain full rated power into 8 ½ load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
    Frequency Response (measured at 2.83VRMS into rated load impedance at any output) 4/8 ½ Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
    Total Harmonic Distortion (THD) (measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz - 20kHz
    Signal to Noise Ratio (Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted)>76dB
    Input Impedance (nominal) Mic: 400 ½ Line: 20 k½ (balanced) RCA: 50 k½
    Phantom Power 27VDC
    Crosstalk (reference rated power, volume at mid position, 1kHz) -70 dB
    Nominal AC Line Voltages 100V, 120V, 220V, 220-240V, 50/60 Hz
    Minimum Load Impedance (Low Impedance Output, 70V Output, 100V Output) VMA260: 4 ½, 80 ½,160 ½ VMA2120: 4 ½, 40 ½, 80 ½
    Operating Temperature/Humidity 0¡C to 35¡C @ 95% R.H. (non-condensing)
    Storage Temperature -20¡C to 85¡C
    Net Weight VMA260: 25.5 lb (11.6 kg)
    Dimensions Width: 17.0 in. (432 mm) Depth: 16.3 in. (415 mm) Height: 3.5 in. (88 mm)
    Shipping Weight VMA260: 30.8 lb (14 kg)

    The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4Ω, 8Ω) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

    Features:

    • 8 inputs with 2 outputs of 60 watts of power
    • Independent bass and treble controls for each output channel
    • 100V and 70V output, or 4Ω/8Ω
    • Paging Chime, and Priority muting
    • Works with JBL CSR-V wall controllers
    • Balanced mic/line inputs; RCA (.775V) inputs
    • Rack mounting hardware included
    Max Output Power per Channel into 4 ½ or 8 ½; 1kHz, ² 0.5% THD - VMA260: 60W
    Insertion Loss (70V or 100V outputs) 1dB maximum
    Number of Inputs 8
    Number of Outputs 2
    Tone Controls (Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
    Input Sensitivity (to obtain full rated power into 8 ½ load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
    Frequency Response (measured at 2.83VRMS into rated load impedance at any output) 4/8 ½ Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
    Total Harmonic Distortion (THD) (measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz - 20kHz
    Signal to Noise Ratio (Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted)>76dB
    Input Impedance (nominal) Mic: 400 ½ Line: 20 k½ (balanced) RCA: 50 k½
    Phantom Power 27VDC
    Crosstalk (reference rated power, volume at mid position, 1kHz) -70 dB
    Nominal AC Line Voltages 100V, 120V, 220V, 220-240V, 50/60 Hz
    Minimum Load Impedance (Low Impedance Output, 70V Output, 100V Output) VMA260: 4 ½, 80 ½,160 ½ VMA2120: 4 ½, 40 ½, 80 ½
    Operating Temperature/Humidity 0¡C to 35¡C @ 95% R.H. (non-condensing)
    Storage Temperature -20¡C to 85¡C
    Net Weight VMA260: 25.5 lb (11.6 kg)
    Dimensions Width: 17.0 in. (432 mm) Depth: 16.3 in. (415 mm) Height: 3.5 in. (88 mm)
    Shipping Weight VMA260: 30.8 lb (14 kg)
