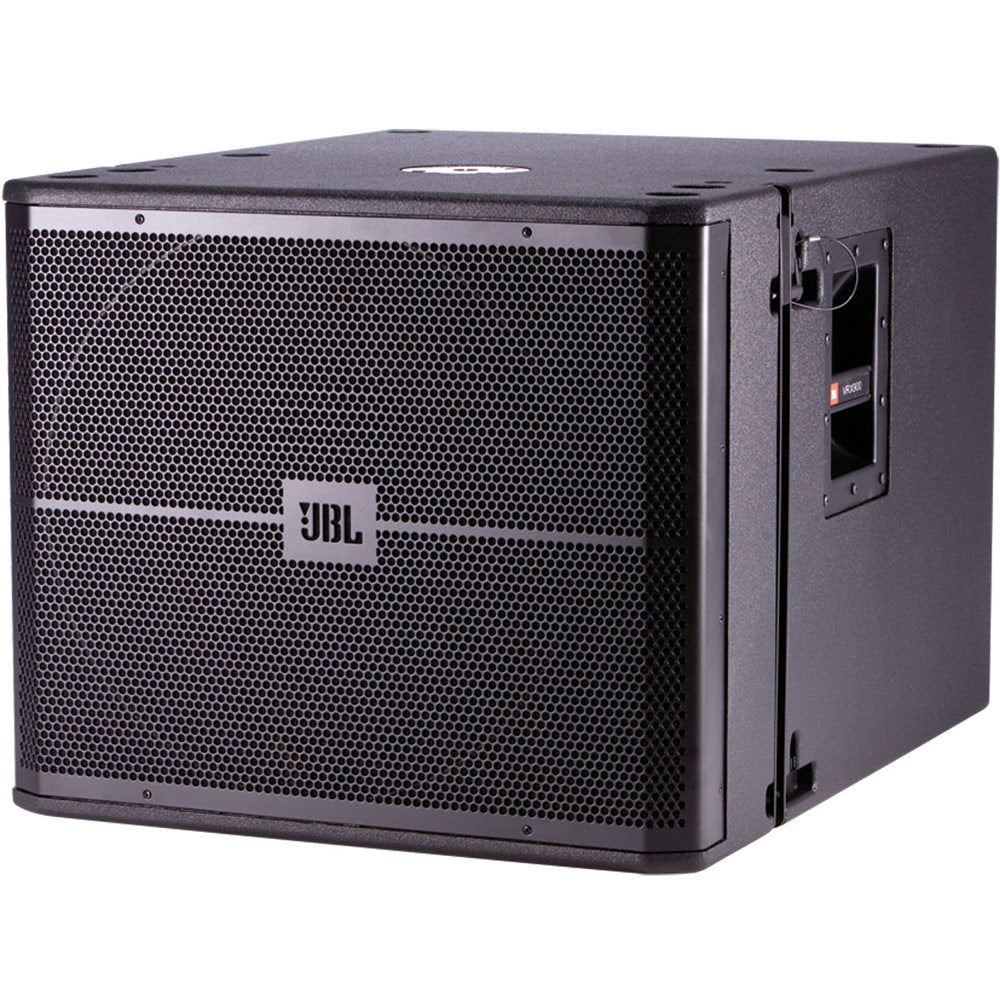

JBL VRX918S 18" Passive Subwoofer Cabinet


  • Dale #:

    JBL-VRX918S
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The VRX918S is a compact, high power suspendable subwoofer system containing a 2268H neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure.Features Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame. 18 inch, 2... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The VRX918S is a compact, high power suspendable subwoofer system containing a 2268H neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure.

Features

  • Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame.
  • 18 inch, 2268H Differential Drive® woofer for extended low-frequency output
  • Large port area for reduced distortion
  • 20 mm threaded pole socket for solid, secure satellite speaker mounting

More +

Product Specs

Power Rating800 W / 1600 W / 3200 W
Frequency Range31 Hz – 220 Hz
Dimensions (H x W x D)508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
Frequency Response34 Hz – 220 Hz
Recommended Crossover Frequencies80 Hz, 24 dB / octave HPF
80 Hz, 24 dB / octave LPF
System Maximum SPL130 dB SPL peak
System Sensitivity95 dB SPL
LF Driver1 x JBL 2268H 457 mm (18 in) Differential Drive woofer
Nominal Impedance8 ohms
Active TuningsTunings available at www.jblpro.com
EnclosureRectangular, 18 mm, 13-ply birch plywood
Suspension / MountingOptional VRX932LA-AF line array frame kit or 10mm eyebolt
FinishBlack DuraFlex™ finish
GrillePowder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing.
Input ConnectorsNeutrik® Speakon® NL-4 (x2)
Net Weight37 kg (81 lb)
Optional AccessoriesSRX718S-CVR: Pull-over padded cover
SS4-BKAdjustable, heavy-duty pole, M20 thread to35 mm
WK-4Caster kit
VRX-AFArray Frame Kit
M-10 eyebolt kit

More +
