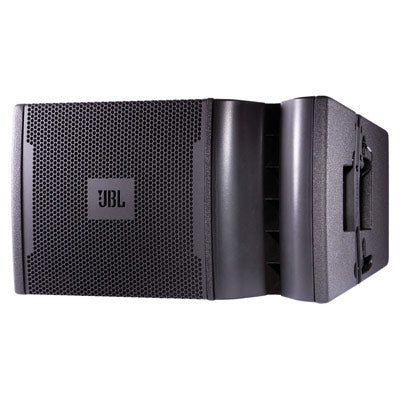

JBL VRX932LA-1 Passive 1600 Watt 12" Two-Way Line Array Loudspeaker System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12 two-way line array speaker system designed for use in arrays of up to six units. VRX932LA-1 is the ideal choice when line array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line arrays such as JBL's VERTEC.
The Constant Curvature waveguide mounts three compression drivers on a continuous arc. When additional VRX932LA-1 speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are three drivers in each VRX932LA-1, the combined power handling and acoustic output of the system is far greater than a single driver could achieve.
VRX932LA-1 uses "amplitude shading" to shape the coverage of the array.Switches on the input plate allow, for example, the upper box in an array to reach a distant balcony while the lower HF section is shaded back to reduce excessive level at the front of the listening area.One or two VRX932LA-1's may also be used on a tripod or over subwoofers. The integral rigging hardware is used to securely lock the array together while the dual-angle pole socket provides aiming flexibility.
| Frequency Range (-10 dB) | 57 Hz - 20 kHz |
| Frequency Response (±3 dB) | 75 Hz - 20 kHz |
| Coverage Pattern | 100¡ x 15¡ nominal |
| Crossover Modes | Bi-amp / passive, externally switchable |
| Crossover Frequency | 1.2 kHz |
| Power Rating(Continuous/Program/Peak) | |
| Passive | 800 W / 1600 W / 3200 W |
| Bi-amp LF | 800 W / 1600 W / 3200 W |
| Bi-amp HF | 75 W / 150 W / 300 W |
| System Maximum SPL | |
| LF | 130 dB |
| HF | 139 dB |
| System Sensitivity (1w @ 1m) | 95 dB SPL (passive mode);LF: 95 dB (Bi-Amp mode);HF: 114 dB3 (Bi-Amp mode) |
| LF Driver | 1 x JBL 2262H 305 mm (12 in) Differential Drive¨ woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps. |
| HF Driver | 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver |
| Nominal Impedance | |
| Passive | 8 ohm |
| Bi-amp LF | 8 ohms |
| Bi-amp HF | 8 ohms |
| Active Tunings | Tunings available at www.jblpro.com |
| Enclosure | 18 mm, 11-ply birch plywood. |
| Suspension / Mounting | Optional VRX-AF line array frame kit; M-10 Eyebolt Kit |
| Finish | Black DuraFlexª finish |
| Grille | Powder coated, black, 16-gauge perforated steel with acoustically transparent foam |
| Input Connectors | Neutrik¨ Speakon¨ NL-4 (x2) |
| Dimensions (H x W x D) | 349 mm x 597 mm x 381 mm(13.75 in x 23.5 in x 15.0 in) |
| Net Weight | 21 kg (46 lb) |
| Optional Accessories | |
| VRX-AF | Suspension array frame |
| SS2-BK | Tripod speaker stand |
| SS3-BK | Satellite speaker pole |
| SS4-BK | Adjustable satellite speaker pole to be used with the VRX918S and SRX718S only. |
| M-10 eyebolt kit | |
