JoeCo BBR1MP - BlackBox 24-Track Digital Recorder with Breakout / MADI / Dante / Player Option Bundle
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Based on JoeCo's award-winning BLACKBOX Professional Audio Recorder, the BBR1MP is a stand-alone, live, multi-channel audio acquisition solution primarily designed with the broadcast engineer and location sound recordist in mind.

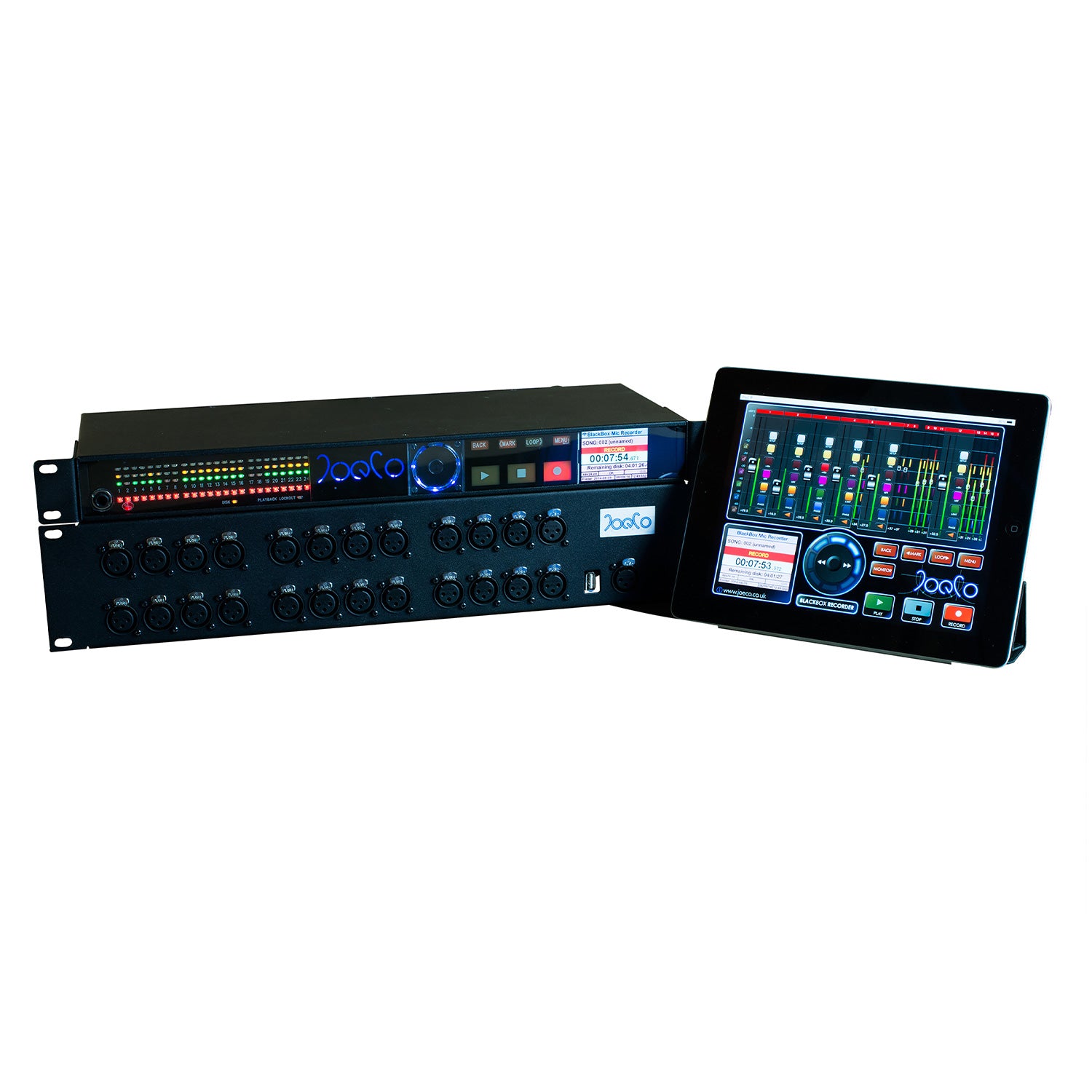

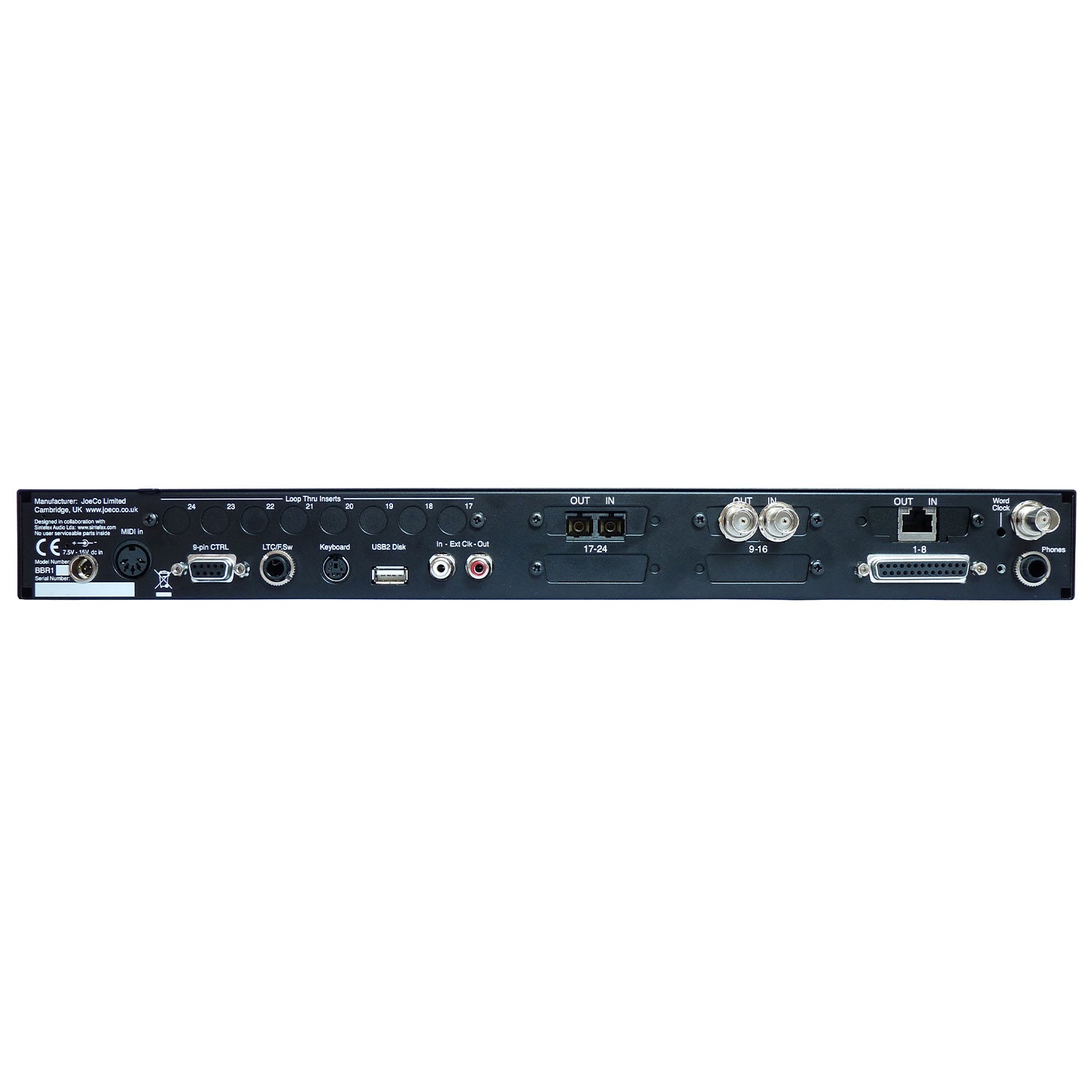

The 24-channel professional audio recorder offers all the standard BLACKBOX features as well as 24 high-quality microphone preamps, operating at up to 24bit/96kHz, which are integrated into the recorder's tiny 1U housing. The BBR1MP features a range of connection options including individually switchable mic/line inputs and balanced outputs, video sync, timecode and word clock inputs. User installable Dante and MADI interface cards are also available as options, adding 24 channels of Dante or MADI I/O to the BBR1MP unit. Microphones can either be connected to the unit via tails from the rear D-Sub connectors, or via an optional 2U breakout panel with XLR connectors. System components are available individually or as part of a bundle.
Audio is recorded direct to an external USB2 drive in Broadcast WAV format for instant ingest into post production. Alongside the BBR1MP's multi-channel recording capabilities, provision is included for creating a simultaneous stereo mixdown. Full support for iXML data is also provided.
The BBR1MP will run off a 12V power source. Unused channels and features can be disabled in order to preserve battery life on location. The unit is fully controllable via JoeCoRemote for iPad. This includes the facility to set up individual mic pre channel parameters – level, mic/line, phantom power, hi-pass filter, soft limiter and phase reverse. Levels are shown on high resolution meters and the monitor mix can be adjusted using expandable channel strips with graphic faders, pan, solo, mute and other parameter controls.
The BBR1MP's compact dimensions, high-quality mic preamps and converters make it a practical, elegant solution for a range of broadcast applications, as well as for live engineers needing a portable multi-channel recording option. The go to Professional Audio Recorder.
| General | |
| Sample rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Bit depth | 16 / 24bit |
| Disk interface | USB2 (compatible with USB3) |
| Disk format | FAT32 Ð compatible with both Mac and PC |
| File format | Broadcast WAV (BWAV) |
| External drive | USB2/3 hard drive or fast memory stick |
| File type | Standard mono Broadcast WAV or multi-channel WAV |
| User interface | Primarily designed for use with the JoeCoRemote iPad app, the unit can also be configured directly from the front panel |
| Control and Synchronisation | |
| Audio clock synchronisation | Word clock, Video reference and SMPTE linear timecode (all std frame rates supported), AES/EBU or SPDIF clock |
| Control | JoeCoRemote for full control; Sony 9-pin and MIDI (MMC) for transport controls |
| Physical | 19" rack-mounted 1U (435x44x170mm) Ð>3kg Optional 19" rack-mounted 2U breakout panel (XLR) (475mm x 88mm x 35mm) 1kg |
| Power | 12V dc (Kycon 4-pole connector), 35W max. External universal PSU included. |
| Audio i/o | |
| Record/playback | Up to 24 channels @ up to 96kHz / 24 bit |
| Inputs | Switchable microphone / line inputs on channel by channel basis |
| Mic preamps | Gain: 0 Ð +60dB continuously variable Soft limiter: software selectable on/off Hi-pass filter: -6dB @ 100Hz, 12dB/octave Max input level: +21dBu EIN: <-124dBu (20-22kHz) THD: <-110dBFS (20-22kHz @ -10dBFS input) Cross talk rejection> 80dB @ 20kHz ZIN:>10kOhm (single ended);>2kOhm (differential) |
| Outputs | Line level balanced outputs (+21dBu = 0dBFS) |
| E-E | THD+N E-E: better than -90 dBFS (unity gain, 20 Ð 22kHz, unweighted) |
| Frequency response | better than +/- 0.5dB, 20-40kHz @ 96kHz sampling |
| Monitoring | Front-mounted _" TRS jack socket: headphone mix, PFL, solo etc (Engineer); Rear-mounted _" jack socket for headphone mix only (Director) |
Based on JoeCo's award-winning BLACKBOX Professional Audio Recorder, the BBR1MP is a stand-alone, live, multi-channel audio acquisition solution primarily designed with the broadcast engineer and location sound recordist in mind.
The 24-channel professional audio recorder offers all the standard BLACKBOX features as well as 24 high-quality microphone preamps, operating at up to 24bit/96kHz, which are integrated into the recorder's tiny 1U housing. The BBR1MP features a range of connection options including individually switchable mic/line inputs and balanced outputs, video sync, timecode and word clock inputs. User installable Dante and MADI interface cards are also available as options, adding 24 channels of Dante or MADI I/O to the BBR1MP unit. Microphones can either be connected to the unit via tails from the rear D-Sub connectors, or via an optional 2U breakout panel with XLR connectors. System components are available individually or as part of a bundle.
Audio is recorded direct to an external USB2 drive in Broadcast WAV format for instant ingest into post production. Alongside the BBR1MP's multi-channel recording capabilities, provision is included for creating a simultaneous stereo mixdown. Full support for iXML data is also provided.
The BBR1MP will run off a 12V power source. Unused channels and features can be disabled in order to preserve battery life on location. The unit is fully controllable via JoeCoRemote for iPad. This includes the facility to set up individual mic pre channel parameters – level, mic/line, phantom power, hi-pass filter, soft limiter and phase reverse. Levels are shown on high resolution meters and the monitor mix can be adjusted using expandable channel strips with graphic faders, pan, solo, mute and other parameter controls.
The BBR1MP's compact dimensions, high-quality mic preamps and converters make it a practical, elegant solution for a range of broadcast applications, as well as for live engineers needing a portable multi-channel recording option. The go to Professional Audio Recorder.
| General | |
| Sample rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Bit depth | 16 / 24bit |
| Disk interface | USB2 (compatible with USB3) |
| Disk format | FAT32 Ð compatible with both Mac and PC |
| File format | Broadcast WAV (BWAV) |
| External drive | USB2/3 hard drive or fast memory stick |
| File type | Standard mono Broadcast WAV or multi-channel WAV |
| User interface | Primarily designed for use with the JoeCoRemote iPad app, the unit can also be configured directly from the front panel |
| Control and Synchronisation | |
| Audio clock synchronisation | Word clock, Video reference and SMPTE linear timecode (all std frame rates supported), AES/EBU or SPDIF clock |
| Control | JoeCoRemote for full control; Sony 9-pin and MIDI (MMC) for transport controls |
| Physical | 19" rack-mounted 1U (435x44x170mm) Ð>3kg Optional 19" rack-mounted 2U breakout panel (XLR) (475mm x 88mm x 35mm) 1kg |
| Power | 12V dc (Kycon 4-pole connector), 35W max. External universal PSU included. |
| Audio i/o | |
| Record/playback | Up to 24 channels @ up to 96kHz / 24 bit |
| Inputs | Switchable microphone / line inputs on channel by channel basis |
| Mic preamps | Gain: 0 Ð +60dB continuously variable Soft limiter: software selectable on/off Hi-pass filter: -6dB @ 100Hz, 12dB/octave Max input level: +21dBu EIN: <-124dBu (20-22kHz) THD: <-110dBFS (20-22kHz @ -10dBFS input) Cross talk rejection> 80dB @ 20kHz ZIN:>10kOhm (single ended);>2kOhm (differential) |
| Outputs | Line level balanced outputs (+21dBu = 0dBFS) |
| E-E | THD+N E-E: better than -90 dBFS (unity gain, 20 Ð 22kHz, unweighted) |
| Frequency response | better than +/- 0.5dB, 20-40kHz @ 96kHz sampling |
| Monitoring | Front-mounted _" TRS jack socket: headphone mix, PFL, solo etc (Engineer); Rear-mounted _" jack socket for headphone mix only (Director) |
