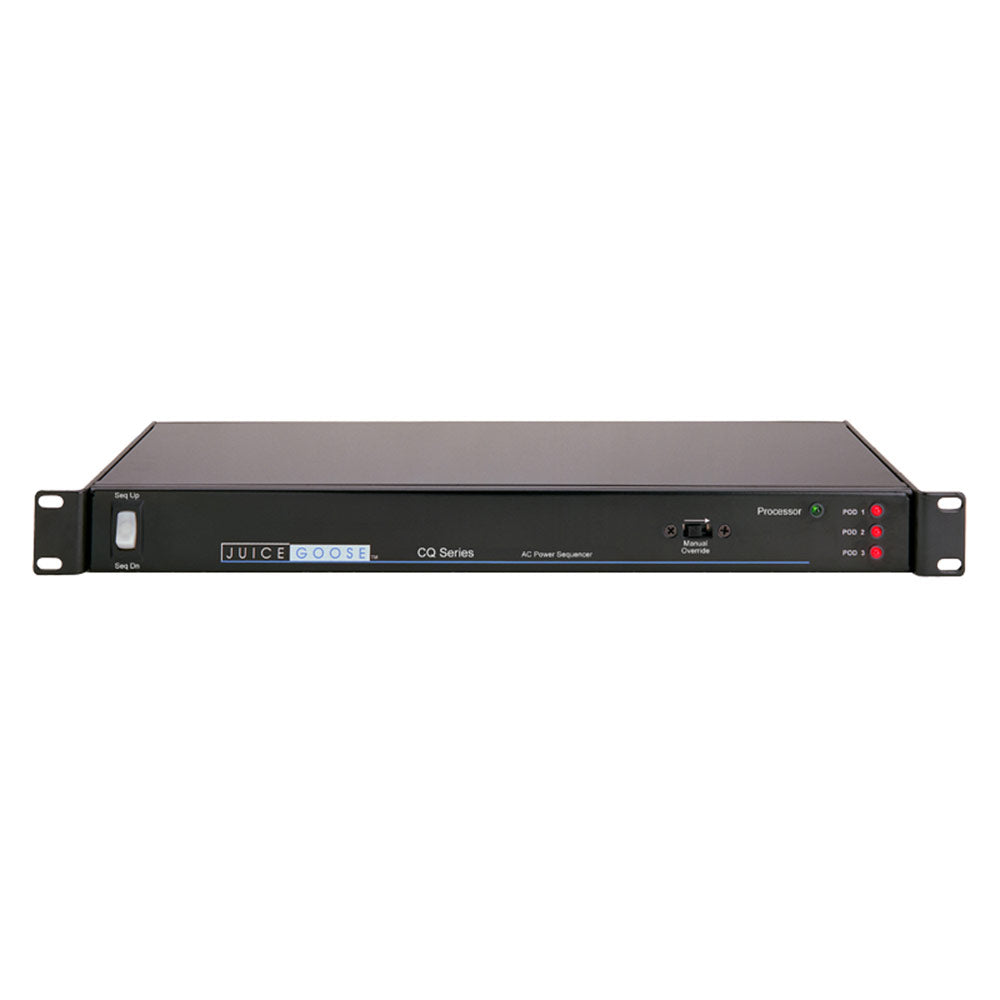

Juice Goose CQ 1520 Rack Mount 20-Amp 7-Outlet Power Sequencer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

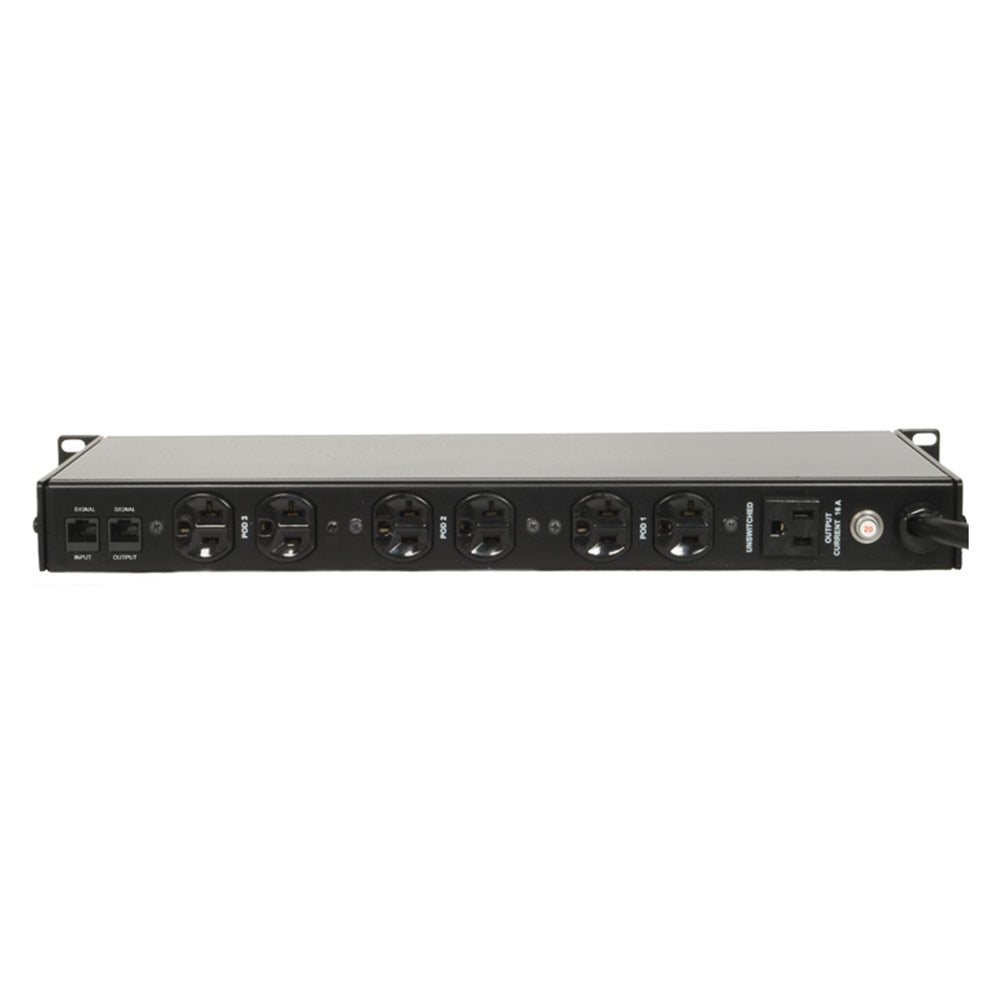

The CQ-1520 is a power sequencer featuring 7 AC power outputs on the rear of the chassis with a combined rating of 20 amps. One output is unswitched. The remaining 6 outputs are grouped into 3 Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have Juice Goose quality surge and spike protection and line noise filtration. This is a great product for "front of house" applications or anywhere AC power protection is needed for several pieces of low current equipment that need to be controlled and sequenced.
The CQ-1520 is a single space rack mount device featuring 7 AC power outputs on the rear of the chassis with a combined rating of 20 amps . One output is unswitched. The remaining 6 outputs are grouped into 3 Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have Juice Goose quality surge and spike protection and line noise filtration.
Because the CQ-1520 has a self contained sequencing circuit, it can be the master or slave in a power sequencing system. Either eight wire RJ-45 or six wire RJ-12 cable can be connected to this unit's Signal Input and/or Signal Output connectors to link it's operations with other CQ or control devices.

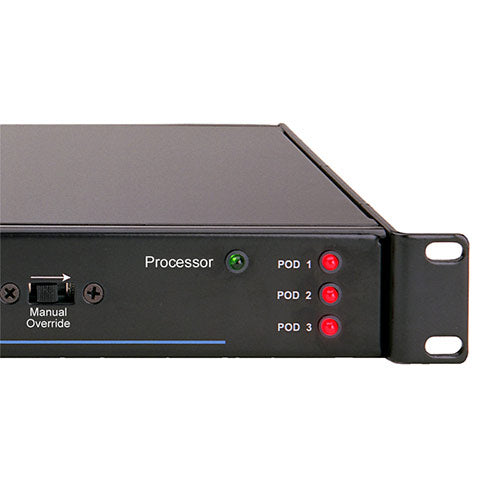

This product features LEDs on the front of the chassis for real time monitoring of the processor and sequencing functions. A green flashing LED indicates the continuing operation of the processor that controls and drives the sequencer. Individual red LEDs are tied to the output of each of the relays. Each LED lights when its relay latches. The LED can only be on when the relay is latched.
The CQ-1520 provides AC line protection across hot, neutral and ground with a multi-stage line filter and a three way surge protection matrix.
The 20 amp capacity of this unit requires it to be assembled with a 12 gauge power cable and a NEMA 5/20P plug at the end of the power cord. This cable can be inserted into any AC receptacle with a comparable rating and the configuration of the duplex receptacle on the right, below.
| Chassis | Tour Class (tm) 16 gauge steel with 11 gauge rack mount brackets |
| Dimensions | 1.75ÓH x19ÓW x 7ÓD |
| Weight | 10 lbs |
| Circuit Breaker (thermal on back of the chassis) | 20A |
| AC Power Filtration | Multi-stage Filter (48dB @ 30 MHz) |
| AC Surge Protection | Triple surge protection matrix on hot, neutral and ground |
| Number of Sequence Events | Three |
| Power Input (seven foot power cord) | 12/3 SJ with 5/20P (requires a 5/20R receptacle) |
| Power Output (plus one unswitched NEMA 5/15R on back of the chassis) | six sequenced NEMA 5/20R |
| Input Voltage | US standard (120 VAC @60Hz) |
| Signal Connections | RJ-45, eight wire cable |
| Monitor Features | Monitor LEDs correlate to processor and relay operation |
The CQ-1520 is a power sequencer featuring 7 AC power outputs on the rear of the chassis with a combined rating of 20 amps. One output is unswitched. The remaining 6 outputs are grouped into 3 Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have Juice Goose quality surge and spike protection and line noise filtration. This is a great product for "front of house" applications or anywhere AC power protection is needed for several pieces of low current equipment that need to be controlled and sequenced.
The CQ-1520 is a single space rack mount device featuring 7 AC power outputs on the rear of the chassis with a combined rating of 20 amps . One output is unswitched. The remaining 6 outputs are grouped into 3 Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have Juice Goose quality surge and spike protection and line noise filtration.
Because the CQ-1520 has a self contained sequencing circuit, it can be the master or slave in a power sequencing system. Either eight wire RJ-45 or six wire RJ-12 cable can be connected to this unit's Signal Input and/or Signal Output connectors to link it's operations with other CQ or control devices.
This product features LEDs on the front of the chassis for real time monitoring of the processor and sequencing functions. A green flashing LED indicates the continuing operation of the processor that controls and drives the sequencer. Individual red LEDs are tied to the output of each of the relays. Each LED lights when its relay latches. The LED can only be on when the relay is latched.
The CQ-1520 provides AC line protection across hot, neutral and ground with a multi-stage line filter and a three way surge protection matrix.
The 20 amp capacity of this unit requires it to be assembled with a 12 gauge power cable and a NEMA 5/20P plug at the end of the power cord. This cable can be inserted into any AC receptacle with a comparable rating and the configuration of the duplex receptacle on the right, below.
| Chassis | Tour Class (tm) 16 gauge steel with 11 gauge rack mount brackets |
| Dimensions | 1.75ÓH x19ÓW x 7ÓD |
| Weight | 10 lbs |
| Circuit Breaker (thermal on back of the chassis) | 20A |
| AC Power Filtration | Multi-stage Filter (48dB @ 30 MHz) |
| AC Surge Protection | Triple surge protection matrix on hot, neutral and ground |
| Number of Sequence Events | Three |
| Power Input (seven foot power cord) | 12/3 SJ with 5/20P (requires a 5/20R receptacle) |
| Power Output (plus one unswitched NEMA 5/15R on back of the chassis) | six sequenced NEMA 5/20R |
| Input Voltage | US standard (120 VAC @60Hz) |
| Signal Connections | RJ-45, eight wire cable |
| Monitor Features | Monitor LEDs correlate to processor and relay operation |
