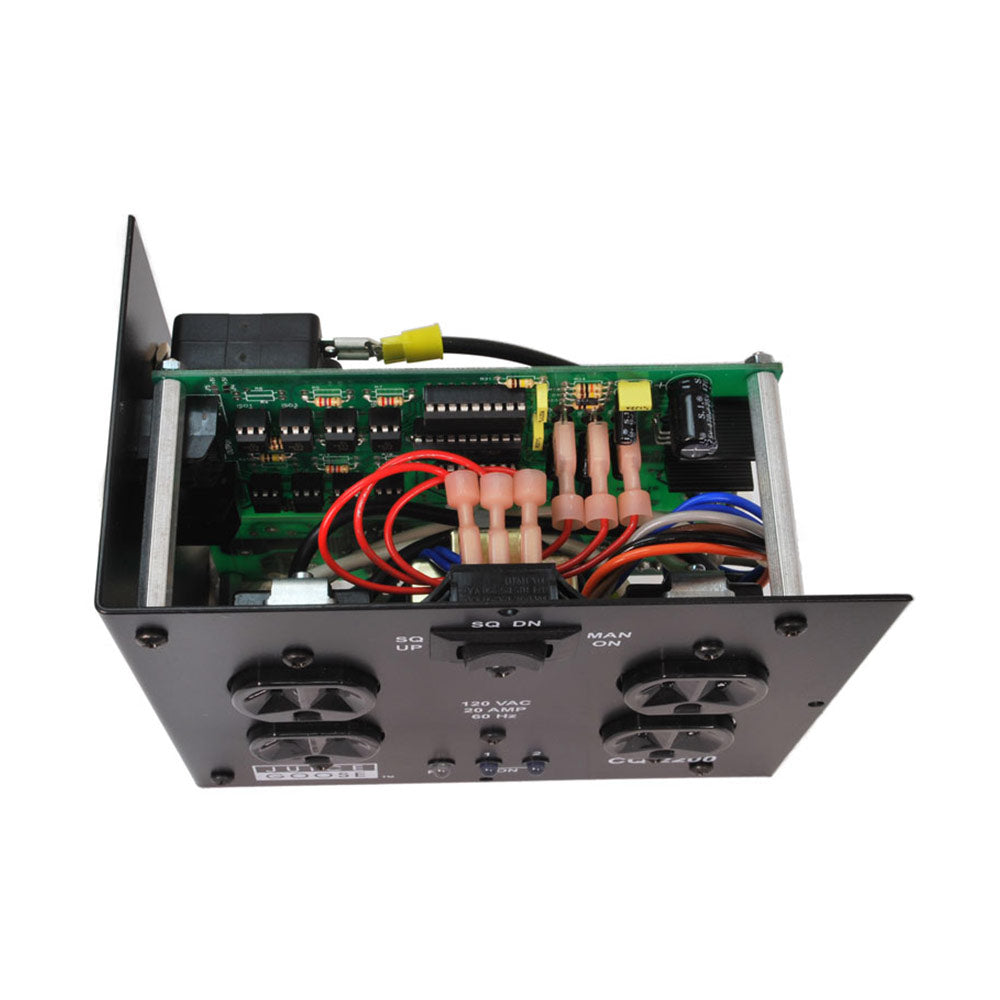

Juice Goose CQ 2200 Behind-Rack 20-Amp 4-Outlet Power Sequencer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The CQ-2200 has two sequence events on a single twenty amp, hardwired circuit.This allows staging inrush loads or providing time delay for audio equipment power on and off.
When is more than one sequence event needed?
Whenever it's a good idea to reduce the start-up current surge on a single circuit. That's why the CQ-2200 has 2 sequence events...and why it's so popular.
Some amplifiers may be able to operate in tandem on a single 20 amp circuit, but would overload the circuit if turned on at the same time. The CQ-2200 stages the turn-on thereby reducing the required electric power service.
For smaller systems the CQ-2200 can act as a stand alone sequencer, activating front end equipment on the first POD and the amplification on the second.
Because the CQ-2200 can be controlled by a contact closure, installation is quick and requires no expensive accessories. Remote activation is very simple and convenient.
So, the CQ-2200 offers several attractive features in a very economical, easy to install and easy to use package.
| DIMENSIONS (H x W x D inches) | 5.50 x 6.40 x 3.75 |
| WEIGHT (lbs) | 4.0 |
| CIRCUIT BREAKER | Side Panel, 20A Thermal |
| POWER INPUT | Hardwire with Crimp Tight Fast-on Terminals |
| VOLTAGE INPUT | 120 VAC at 60 Hz |
| POWER OUTPUTS | Four NEMA 5/20R, Sequenced |
| NUMBER OF SEQUENCE EVENTS | Two |
| POWER LINE FILTRATION | None |
| VOLTAGE SPIKE PROTECTION | None |
| COMMUNICATIONS LINE | RJ-45 (See Owners Manual for Assembly) |
| MONITOR FEATURES | Front Panel LEDs |
The CQ-2200 has two sequence events on a single twenty amp, hardwired circuit.This allows staging inrush loads or providing time delay for audio equipment power on and off.
When is more than one sequence event needed?
Whenever it's a good idea to reduce the start-up current surge on a single circuit. That's why the CQ-2200 has 2 sequence events...and why it's so popular.
Some amplifiers may be able to operate in tandem on a single 20 amp circuit, but would overload the circuit if turned on at the same time. The CQ-2200 stages the turn-on thereby reducing the required electric power service.
For smaller systems the CQ-2200 can act as a stand alone sequencer, activating front end equipment on the first POD and the amplification on the second.
Because the CQ-2200 can be controlled by a contact closure, installation is quick and requires no expensive accessories. Remote activation is very simple and convenient.
So, the CQ-2200 offers several attractive features in a very economical, easy to install and easy to use package.
| DIMENSIONS (H x W x D inches) | 5.50 x 6.40 x 3.75 |
| WEIGHT (lbs) | 4.0 |
| CIRCUIT BREAKER | Side Panel, 20A Thermal |
| POWER INPUT | Hardwire with Crimp Tight Fast-on Terminals |
| VOLTAGE INPUT | 120 VAC at 60 Hz |
| POWER OUTPUTS | Four NEMA 5/20R, Sequenced |
| NUMBER OF SEQUENCE EVENTS | Two |
| POWER LINE FILTRATION | None |
| VOLTAGE SPIKE PROTECTION | None |
| COMMUNICATIONS LINE | RJ-45 (See Owners Manual for Assembly) |
| MONITOR FEATURES | Front Panel LEDs |
