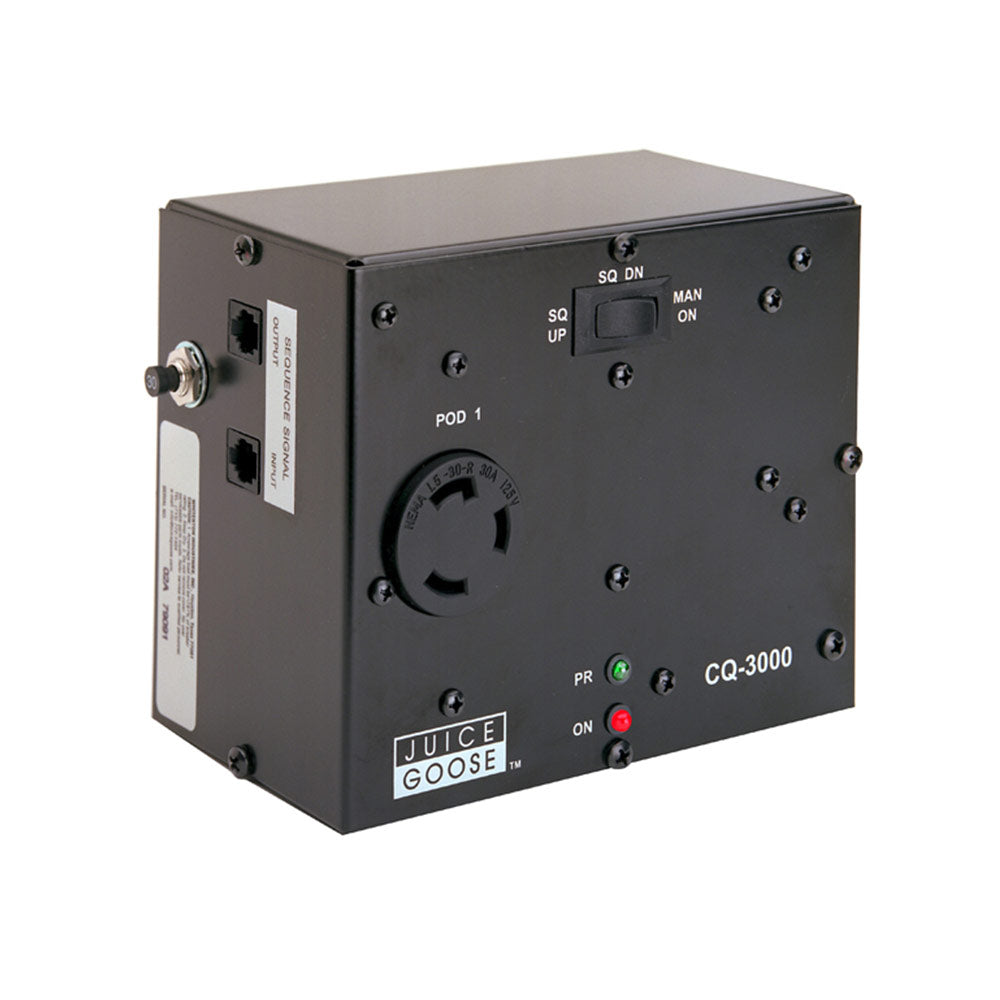

Juice Goose CQ 3000 Behind-Rack 30-Amp 4-Outlet Power Sequencer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The CQ-3000 is necessary for high current, low frequency amplifier control. This product integrates seamlessly with the other CQ products in a small, simple or large, complex power control network.
The CQ-3000 is necessary for high current, low frequency amplifier control. The same size as the CQ-2000, this product integrates seemlessly with the other CQ products. It fits anywhere in a chain of sequencers, but is usually located at the end of the system - the last on and the first off.
The CQ-3000 features a single 30 amp twist lock connector (NEMA L5-30R). Power control uses a high current relay with large inrush current handling capability. AC mains are attached to the CQ3000 with a hardwire connection to a terminal block inside the chassis. Other features include a 30 amp thermal circuit breaker, a master sequence activation and override switch and operation indicator LED's.
| DIMENSIONS (H x W x D inches) | 9.00 x 6.00 x 4.00 |
| WEIGHT (lbs) | 6.0 |
| CIRCUIT BREAKER | Side Panel, 30A Thermal |
| POWER INPUT | Hardwire to Screw Terminal |
| VOLTAGE INPUT | 120 VAC at 60 Hz |
| POWER OUTPUTS | One NEMA L5/30R, Sequenced |
| NUMBER OF SEQUENCE EVENTS | One |
| POWER LINE FILTRATION | None |
| VOLTAGE SPIKE PROTECTION | None |
| COMMUNICATIONS LINE | RJ-45 (See Owners Manual for Assembly) |
| MONITOR FEATURES | Front Panel LEDs |
The CQ-3000 is necessary for high current, low frequency amplifier control. This product integrates seamlessly with the other CQ products in a small, simple or large, complex power control network.
The CQ-3000 is necessary for high current, low frequency amplifier control. The same size as the CQ-2000, this product integrates seemlessly with the other CQ products. It fits anywhere in a chain of sequencers, but is usually located at the end of the system - the last on and the first off.
The CQ-3000 features a single 30 amp twist lock connector (NEMA L5-30R). Power control uses a high current relay with large inrush current handling capability. AC mains are attached to the CQ3000 with a hardwire connection to a terminal block inside the chassis. Other features include a 30 amp thermal circuit breaker, a master sequence activation and override switch and operation indicator LED's.
| DIMENSIONS (H x W x D inches) | 9.00 x 6.00 x 4.00 |
| WEIGHT (lbs) | 6.0 |
| CIRCUIT BREAKER | Side Panel, 30A Thermal |
| POWER INPUT | Hardwire to Screw Terminal |
| VOLTAGE INPUT | 120 VAC at 60 Hz |
| POWER OUTPUTS | One NEMA L5/30R, Sequenced |
| NUMBER OF SEQUENCE EVENTS | One |
| POWER LINE FILTRATION | None |
| VOLTAGE SPIKE PROTECTION | None |
| COMMUNICATIONS LINE | RJ-45 (See Owners Manual for Assembly) |
| MONITOR FEATURES | Front Panel LEDs |
