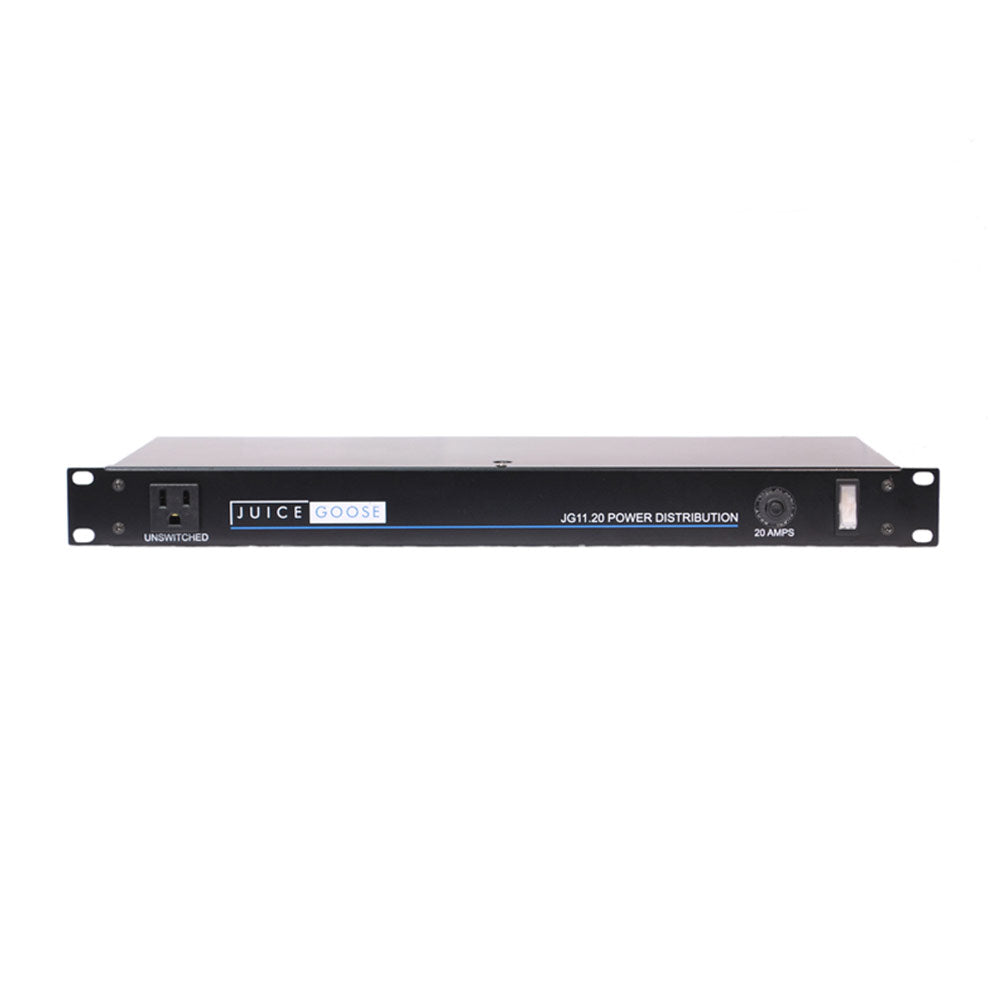

Juice Goose JG 11-20A 20-Amp 11-Outlet Power Conditioner
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Power and Convenience! For higher current applications, the JG11.0-20A has a amp circuit breaker, switch, wiring and power cord - all the features required for heavier commercial and industrial applications. Note: The NEMA 5-20P plug connects only to a 20 amp rated receptacle.
This very economical package has 11 AC receptacles with one unswitched on each the front and back. In addition to a 20 amp capacity the JG 11-20A has a front mounted circuit breaker and a 15 foot long power cord to use in difficult to reach applications.
| INPUT VOLTAGE | 120vac, 60 Hz |
| TECHNICAL CURRENT CAPACITY | 18 Amps |
| CURRENT OVERLOAD PROTECTION | 20 Amps |
| DIMENSIONS (inches) | 1.75H x 19W x 7D |
| WEIGHT (lbs) | 6.0 |
| POWER CORD | 20 Amps, 15 foot 12/3 SJT with NEMA 5-20P Plug |
| POWER OUTPUT RECEPTACLES | Nine NEMA 5-15 (back), one NEMA 5-15 (front) |
| AC LINE FILTRATION | Line Capacitor (Line / Neutral) |
| VOLTAGE SPIKE PROTECTION | Metal Oxide Varistor (Line / Neutral) |
| WARRANTY | Three years |
Power and Convenience! For higher current applications, the JG11.0-20A has a amp circuit breaker, switch, wiring and power cord - all the features required for heavier commercial and industrial applications. Note: The NEMA 5-20P plug connects only to a 20 amp rated receptacle.
This very economical package has 11 AC receptacles with one unswitched on each the front and back. In addition to a 20 amp capacity the JG 11-20A has a front mounted circuit breaker and a 15 foot long power cord to use in difficult to reach applications.
| INPUT VOLTAGE | 120vac, 60 Hz |
| TECHNICAL CURRENT CAPACITY | 18 Amps |
| CURRENT OVERLOAD PROTECTION | 20 Amps |
| DIMENSIONS (inches) | 1.75H x 19W x 7D |
| WEIGHT (lbs) | 6.0 |
| POWER CORD | 20 Amps, 15 foot 12/3 SJT with NEMA 5-20P Plug |
| POWER OUTPUT RECEPTACLES | Nine NEMA 5-15 (back), one NEMA 5-15 (front) |
| AC LINE FILTRATION | Line Capacitor (Line / Neutral) |
| VOLTAGE SPIKE PROTECTION | Metal Oxide Varistor (Line / Neutral) |
| WARRANTY | Three years |
