Description

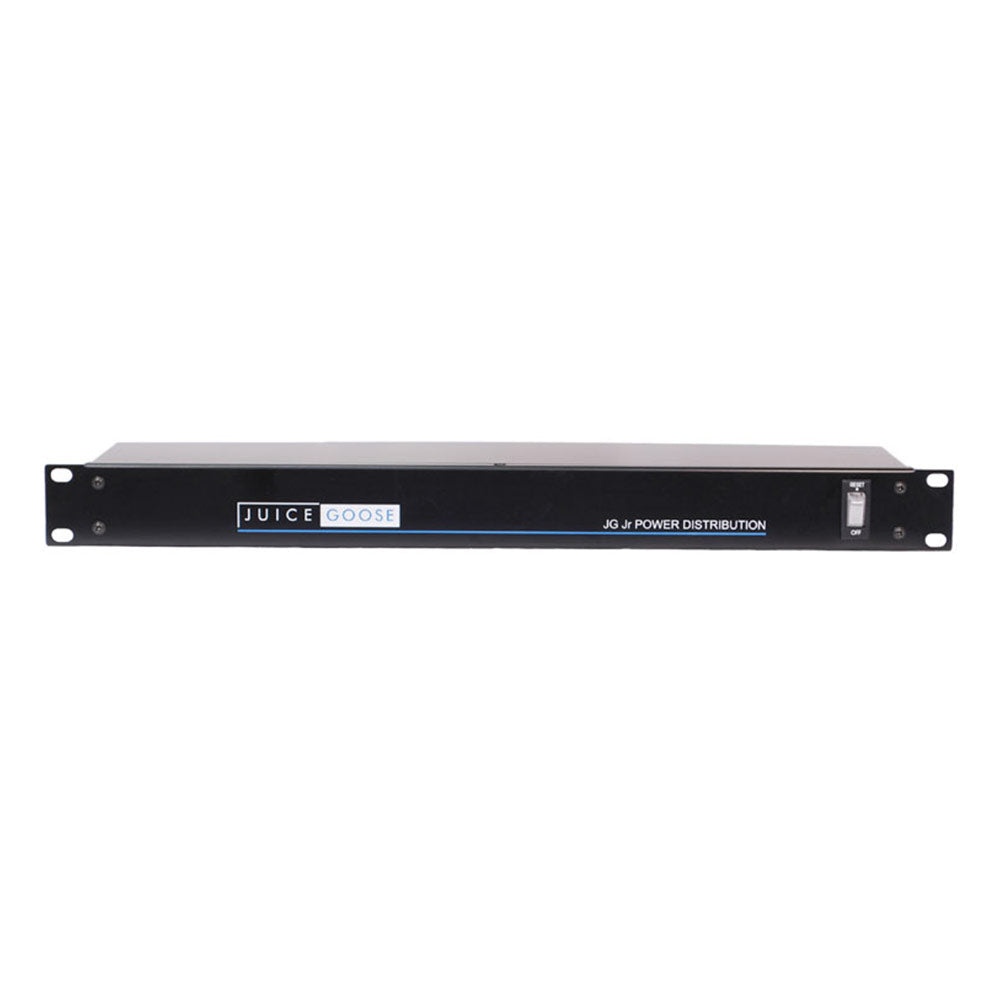

The JG Jr is a quality Juice Goose power distribution product with inexpensive features for primary requirements.
The Junior includes combination circuit breaker/master power switch, 6 power outlets, basic voltage protection and AC noise suppression in a 4 1/2" deep chassis. It comes with a 1 year warranty.
The JG Series family of power and light modules includes six high quality, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage.
The Basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.
INPUT VOLTAGE | 120vac, 60 Hz |
TECHNICAL CURRENT CAPACITY | 12 Amps |
CURRENT OVERLOAD PROTECTION | 15 Amps |
DIMENSIONS (inches) | 1.75H x 19W x 7D |
WEIGHT (lbs) | 4.0 |
POWER CORD | 15 Amps, 6 foot 16/3 SJT with NEMA 5-15P Plug |
POWER OUTPUT RECEPTACLES | Six NEMA 5-15 (back) |
AC LINE FILTRATION | Line Capacitor (Line / Neutral) |
VOLTAGE SPIKE PROTECTION | Metal Oxide Varistor (Line / Neutral) |
WARRANTY | One year |
The JG Jr is a quality Juice Goose power distribution product with inexpensive features for primary requirements.
The Junior includes combination circuit breaker/master power switch, 6 power outlets, basic voltage protection and AC noise suppression in a 4 1/2" deep chassis. It comes with a 1 year warranty.
The JG Series family of power and light modules includes six high quality, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage.
The Basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.
INPUT VOLTAGE | 120vac, 60 Hz |
TECHNICAL CURRENT CAPACITY | 12 Amps |
CURRENT OVERLOAD PROTECTION | 15 Amps |
DIMENSIONS (inches) | 1.75H x 19W x 7D |
WEIGHT (lbs) | 4.0 |
POWER CORD | 15 Amps, 6 foot 16/3 SJT with NEMA 5-15P Plug |
POWER OUTPUT RECEPTACLES | Six NEMA 5-15 (back) |
AC LINE FILTRATION | Line Capacitor (Line / Neutral) |
VOLTAGE SPIKE PROTECTION | Metal Oxide Varistor (Line / Neutral) |
WARRANTY | One year |
