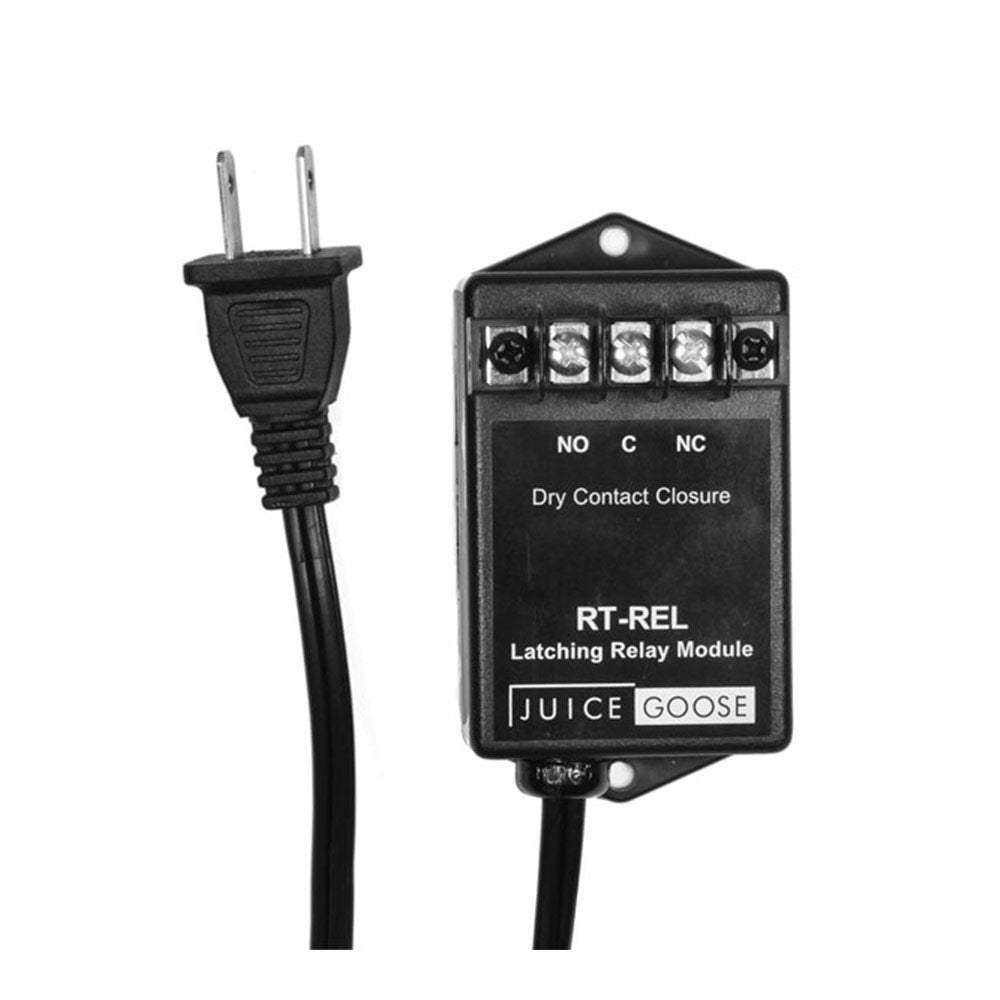

Juice Goose RT-REL Dry Contact Closure Relay for Switched AC Outlets
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Plug the power cord of the RT-REL into a switched AC outlet.
In its unpowered state, there is an internal contact between the C (common) and NC (normally closed) terminals on the unit. When 120VAC power is applied to the power cord, connection is opened between C and NC and closed between C and NO (normally open).
A common application for the RT-REL is to extend the use of a switched electrical outlet on a rack mounted power strip or sequencer or on some other device such as an audio receiver or amplifier. When plugged into the switched outlet the RT-REL can close and open a dry contact on the three position terminal strip.
| CHASSIS | Durable Plastic (Black) |
| DIMENSIONS (Inches) | 3 x 2 x 1 |
| WEIGHT (Ounces) | 4.8 |
| POWER CABLE | 3 Feet, 18/2 AWG with NEMA 5-15P |
| RELAY CONTACT RATING (Amps) | 10 |
Plug the power cord of the RT-REL into a switched AC outlet.
In its unpowered state, there is an internal contact between the C (common) and NC (normally closed) terminals on the unit. When 120VAC power is applied to the power cord, connection is opened between C and NC and closed between C and NO (normally open).
A common application for the RT-REL is to extend the use of a switched electrical outlet on a rack mounted power strip or sequencer or on some other device such as an audio receiver or amplifier. When plugged into the switched outlet the RT-REL can close and open a dry contact on the three position terminal strip.
| CHASSIS | Durable Plastic (Black) |
| DIMENSIONS (Inches) | 3 x 2 x 1 |
| WEIGHT (Ounces) | 4.8 |
| POWER CABLE | 3 Feet, 18/2 AWG with NEMA 5-15P |
| RELAY CONTACT RATING (Amps) | 10 |
