Juice Goose SQ-1500 15-Amp 7-Outlet Power Sequencer w/Remote Control
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The SQ-1500 is an economical power sequencer for single rack applications when local or remote control is required. Remote activation with a latching contact closure makes installation and operation simple and efficient.
The SQ-1500 has a 15 amp capacity with 7 AC power outputs on the rear of the chassis. One output is unswitched. The remaining 6 outputs are grouped into 3 Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have Juice Goose quality surge and spike protection as well as line noise filtration.

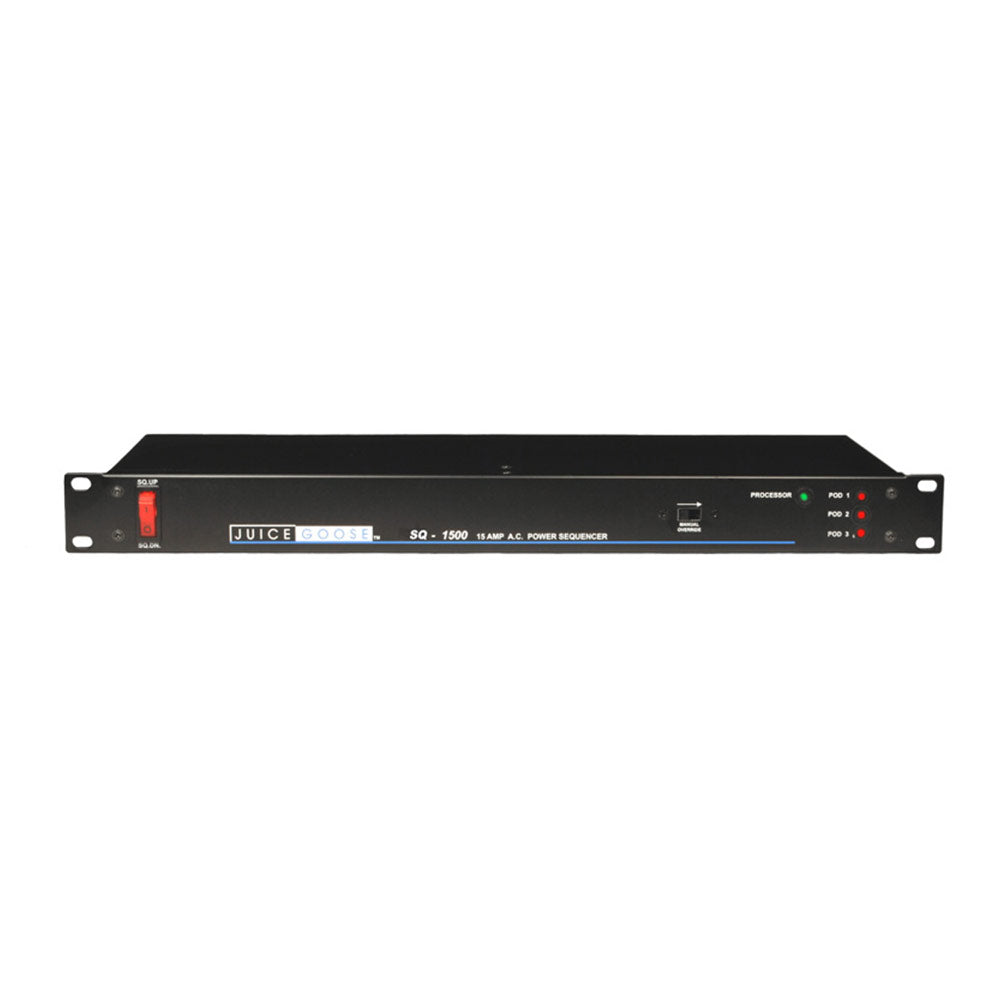

This product features LEDs on the front of the chassis for real time monitoring of the processor and sequencing functions. A green flashing LED indicates the continuing operation of the processor that controls and drives the sequencer. Individual red LEDs are tied to the output of each of the relays. Each LED lights when its relay latches. The LED can only be on when the relay is latched.
| Chassis | 16 gauge steel |
| Dimensions | 1.75ÓH x19ÓW x 7ÓD |
| Weight | 10 lbs |
| Circuit Breaker | 15A thermal on back of the chassis |
| Relay Current Rating | 30A |
| Number of Sequence Events | Three |
| Power Input | Seven foot power cord with NEMA 5/15P plug |
| Power Output | Six NEMA 5/15R (Sequenced) / one NEMA 5/15R (Unswitched) |
| Input Voltage | US standard (120 VAC @60Hz) |
| Signal Connections | Five position terminal for 14 to 24 AWG connection |
| Monitor Features | Front panel monitor LEDs |
The SQ-1500 is an economical power sequencer for single rack applications when local or remote control is required. Remote activation with a latching contact closure makes installation and operation simple and efficient.
The SQ-1500 has a 15 amp capacity with 7 AC power outputs on the rear of the chassis. One output is unswitched. The remaining 6 outputs are grouped into 3 Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have Juice Goose quality surge and spike protection as well as line noise filtration.
This product features LEDs on the front of the chassis for real time monitoring of the processor and sequencing functions. A green flashing LED indicates the continuing operation of the processor that controls and drives the sequencer. Individual red LEDs are tied to the output of each of the relays. Each LED lights when its relay latches. The LED can only be on when the relay is latched.
| Chassis | 16 gauge steel |
| Dimensions | 1.75ÓH x19ÓW x 7ÓD |
| Weight | 10 lbs |
| Circuit Breaker | 15A thermal on back of the chassis |
| Relay Current Rating | 30A |
| Number of Sequence Events | Three |
| Power Input | Seven foot power cord with NEMA 5/15P plug |
| Power Output | Six NEMA 5/15R (Sequenced) / one NEMA 5/15R (Unswitched) |
| Input Voltage | US standard (120 VAC @60Hz) |
| Signal Connections | Five position terminal for 14 to 24 AWG connection |
| Monitor Features | Front panel monitor LEDs |
