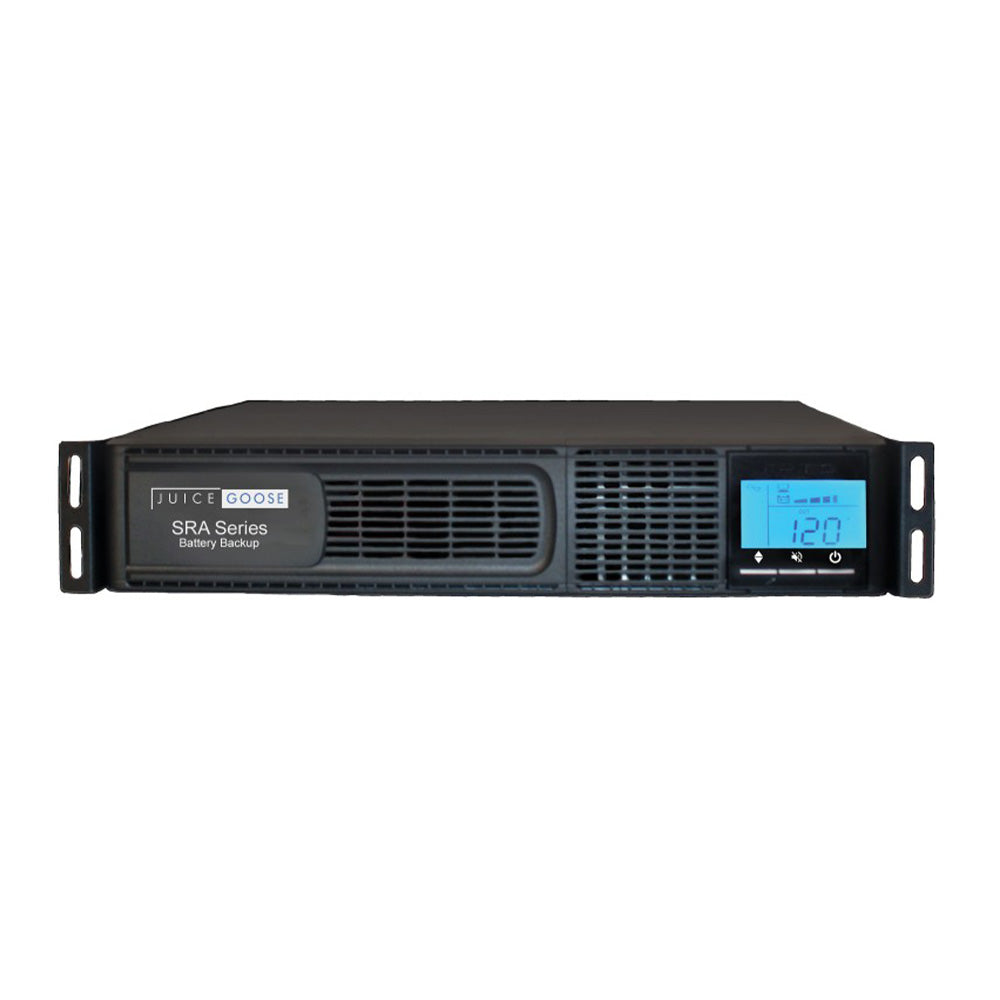

Juice Goose SRA 20000 - UPS Backup / Voltage Regulator / Surge Protector


  • Dale #:

    JUGO-SRA20000
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Line Interactive, Voltage Regulating - 2,000 VA / 1,400 Watt UPS The SRA Series of battery backup UPS models feature value priced yet feature rich UPS technology incorporating automatic voltage regulation (line interactive) function that preserves battery power and supports sensitive electronic ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Line Interactive, Voltage Regulating - 2,000 VA / 1,400 Watt UPS

The SRA Series of battery backup UPS models feature value priced yet feature rich UPS technology incorporating automatic voltage regulation (line interactive) function that preserves battery power and supports sensitive electronic equipment during brown outs. Once incoming voltage drops below operational levels, SRA switches to battery to maintain power continuity. These products also provide 960 Joules of power line surge protection.

Voltage Regulation - provides support during low voltage sags. When utility power ranges between 90 and 150 VAC, voltage output stabilizes between 103 and 136 VAC.

Line Interactive circuitry monitors the incoming voltage level and routes current through the appropriate taps on a buck/boost transformer to raise or lower output voltage, improving the performance of powered equipment and extending the usable range of the utility power before switching to battery mode.

Emergency Power Off (EPO) - immediately remove power from UPS outlets in case of an emergency.

Hot Swappable Battery Design - ensures uninterrupted performance during battery replacement.

Rack, Tower or Wall Installation - installation options for a variety of power continuity applications.

Easy to View LCD Panel - displays UPS and electric power status. Rotating design can orient the front panel display to suit rack, tower or wall installation. Vaules available on display include: load level, voltage and frequency, UPS status, battery charge level, estimated run time, internal or external fault.

Maintenance Free Batteries - last 3 -  5 years under normal operations and conditions. Replacement batteries are available.

More +

Product Specs

Rating VA 2,000
Capacity Watts 1,400
INPUT
Rated Operating Voltage (VAC) 120 = Nominal, 90 to 150 = Min and Max Range
Low Voltage Transfer To Battery 89 VAC
Return To Utility Power 94 VAC
High Voltage Transfer To Battery 151 VAC
Return To Utility Power 146 VAC
Power Cord 10 Foot, NEMA 5-20P
OUTPUT
Output Voltage - Line Interactive Mode 103 - 136 VAC
Output Voltage - Battery Mode 120 VAC +/- 5%
Frequency Range 60 Hz +/- 0.8%
Overload Capacity 110% 20 - 60 Seconds, 150% Immediate Shutdown
Harmonic Distortion (THDU) 30.3 % to 37.2 % = Total, 14.5 % to 18.7 % = Single
Transfer Time AC to DC 6 - 10 ms (Typical)
Topology (Design) Line Interactive - Simulated Sine Wave
Receptacles 6 x NEMA 5-15/20R
1 x NEMA L5-20R
Load Shedding (Outlet Control)
Requires third-party software
2 Banks of 3 Outlets and 2 Unswitched. SRA 20000 has 1 Unswitched L5-20R.
BATTERY
Battery Type Sealed, Non-Spillable, Valve Regulated, Maintenance Free, Lead Acid
Run Time (Full Load / Half Load) 4 Minutes / 14 Minutes
Typical Recharge Time 8 Hours to 90% from Full Discharge
Typical Service Life 3 to 5 Years With Proper Operation
SURGE PROTECTION
Surge Energy Rating 960 Joules
Surge Capacity 6,500 Amps Total (One Time)
EMI/RFI Noise Filtration >45dB Normal and Common Mode
DISPLAY, CONTROL and ALARMS
Status Indications Battery Capacity, Load Percentage, Input Power Source, External Power Line, Fault Indications
Control Select Buttons On/Off/Test, Alarm Silence, Display Control (Scroll)
Warning Indicators Low or Bad Battery, Current Overload, Site Wiring Fault, Over Temperature, UPS Failure
PHYSICAL
Dimensions, Net (L x W x H) 20.1” x 18.9” x 3.4”
Weight Lbs (Net / Shipping) 62.8 / 70.5
ENVIRONMENT
Operating Temperature 32 F to 104 F
Storage Temperature -13 F to 104 F
Humidity 20 to 90% RH (non-condensing)
Audible Noise Output @ 3 ft < 45 dBA
