Description

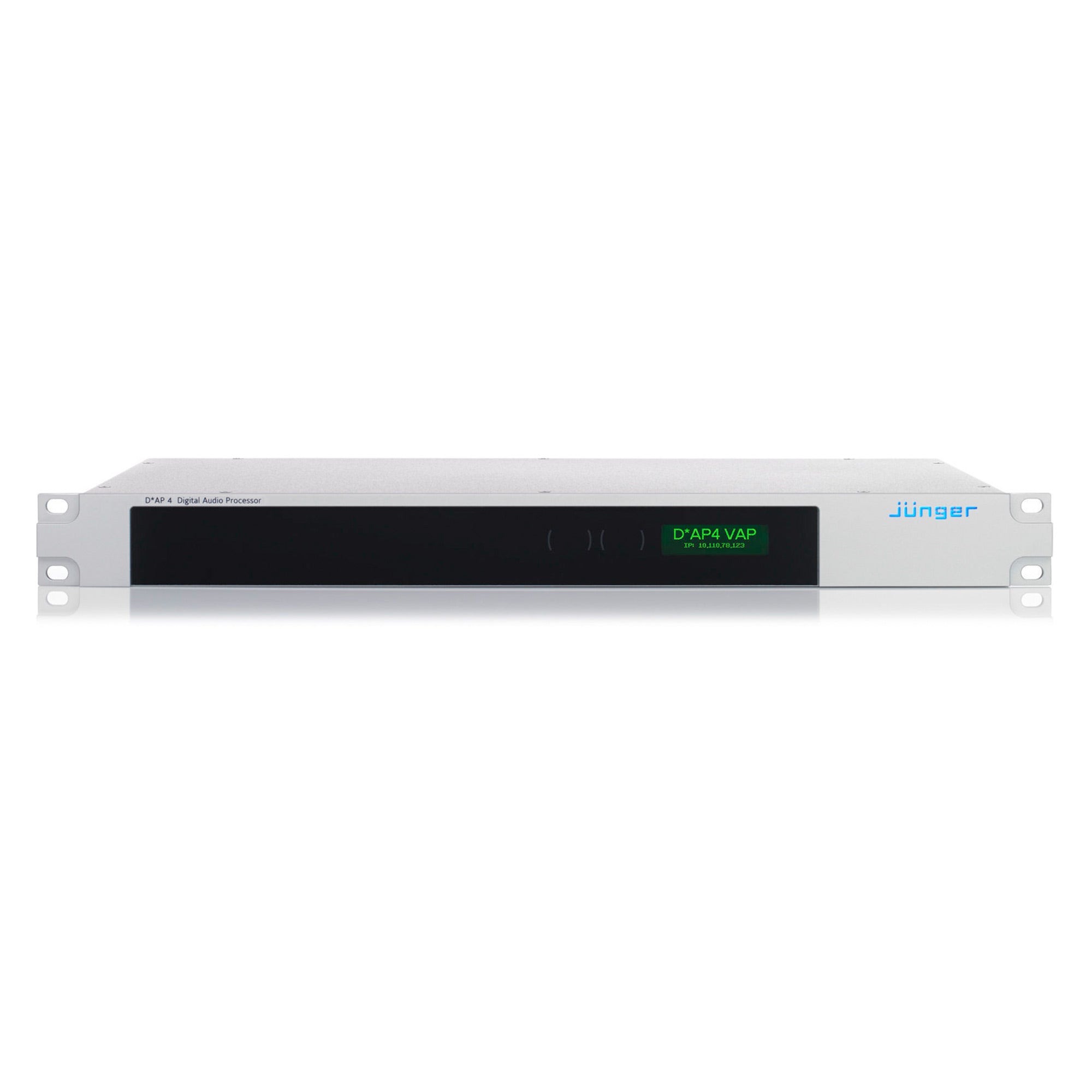

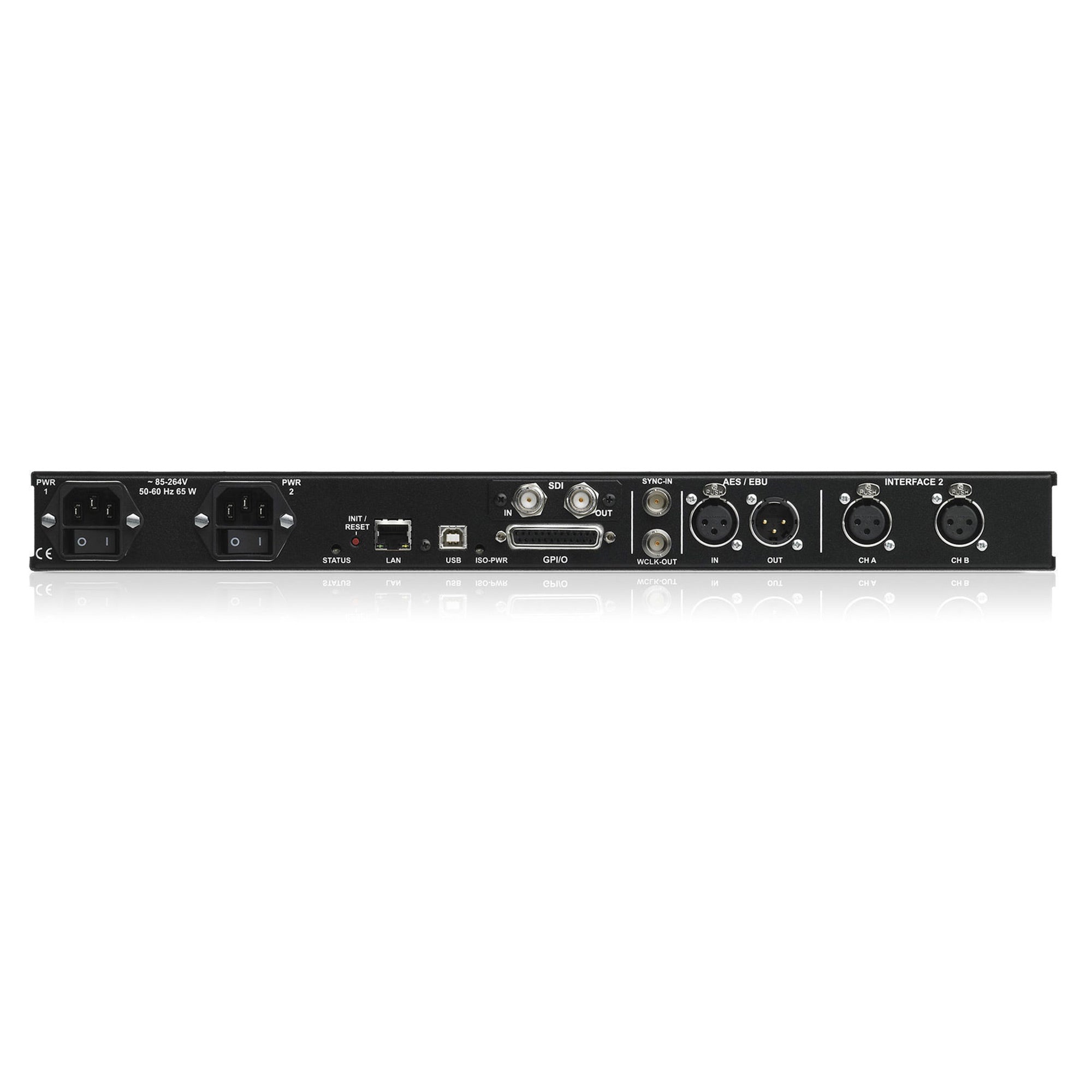

Aimed at applications including radio broadcast, TV voice over and audio post production, the D*AP4 VAP is designed to ensure that vocal quality and accuracy is always maintained at its best from program to program and day to day.
The D*AP4 VAP features a two channel voice signal path and separate stereo program path for either standalone voice processing, or to provide automatic or manual integration of voice and program signals. An optional microphone pre-amp allows direct input to the dedicated voice path to maintain complete control of the overall voice presentation.
Features:
Mid/Side Matrix
As a creative tool, the M/S Matrix uses two mics placed closely together to capture and produce variable width stereo recordings.
Phase Rotator
The Phase Rotator automatically detects imbalanced audio waveforms and restores symmetry to prevent transients that may unnecessarily trigger downstream processing.
De-Esser
The De-Esser greatly reduces the effect of excessive sibilance from spoken voices.
Parametric and Dynamic EQ
A 5-band Parametric EQ is coupled with Spectral Signature dynamic equalizer, a powerful creative tool allowing adaptive control of spectral balance. Incoming audio is analyzed and its spectral structure is compared to a predetermined "reference" curve. This allows dynamic EQ corrections to be applied only if necessary to achieve a consistent sound image and tonal balance.
Dynamics
In addition to a traditional upward compressor, a threshold based downward compressor is also included. Both types adaptively adjust timing parameters based on the incoming audio structure. An expander/gate effectively removes low-level noise without introducing artifacts.
Voice Leveler
To assist in loudness based programming, a voice leveler can be used to pre-condition the voice component prior to combining it with the program element.
Voice Over
Voice Over provides seamless integration of voice and program content in situations such as continuity announcements or video description with automatic ducking.
Level Magic Loudness Management
Based on a unique multi-loop control principle, the optional Level Magic algorithm provides adaptive wideband loudness control with exceptionally high audio quality that is free of coloration, pumping, distortion or modulation effects. The optional J*AM software displays input v/s output levels and can log long term values to a destination folder anywhere on the network.
System Integration
All system parameters are remotely accessible allowing the unit to be integrated and remotely operated by broadcast control systems. An advanced built-in Event Management tool allows the remote loading of parameter presets either by hotkeys on the optional X*AP RM1 remote panel, by 8 onboard GPI/O's or by network commands using the Ember+ control protocol. This makes it easy to assign individual settings to each user and re-call them instantly.
Web Configuration
A web interface allows easy and intuitive setup and configuration from anywhere in your network. On screen metering and measurements are available for easy reference.
Mobile User Interface
A dedicated "mobile" UI is tailored specifically for smaller displays such as tablets or smartphones and offers fast access to user profiles and commonly required functions such as Cough Cut and Voice Over.
Interfaces and System Security
Audio I/O's range from on board native AES/EBU to optional 3G SDI including video delay, MADI, Dante® audio over IP, analog and high quality mic pre-amps. Power fail bypass relays are fitted as standard and with dual redundant PSU's and SNMP integration, the unit ensures maximum operational safety and peace of mind for today's critical 24/7 radio and TV broadcast or audio production facilities.
The D*AP8 MAP user interface combines loudness and dialnorm measurement, metadata emulation and setup and monitor control on one web page. It is optimized for mouse or touch operation and can also be used as a day-to-day interface, for example on a tablet computer. This significantly simplifies workflows, especially for those familiar with Dolby®'s discontinued DP570 Multichannel Audio Tool.
More +
Product Specs
Audio Sample Rate | 44.1, 48, 88.2, 96kHz, (32 … 196kHz @ input with SRC) ±150ppm sync input capture, ±25ppm master-sync stability |
AES/EBU Input | Relevant specifications comply with AES3-X-2009, IEC 60985 and AES11-2009 2 channels (1 stereo input), XLR-3 connector 24bits, transparent forwarding of PCM and compressed audio (w/o SRC) 24bits, PCM, sample rate converter (SRC) activated |
Impedance | 110Ohm, differential |
Input level | 0.3 … 5Vpp @ 110Ohm differential |
Sample Rate Converter (SRC) | THD+N -120dB @ 0dBFS, 1kHz Latency < 0.3ms |
AES/EBU Output | Relevant specifications comply with AES3-X-2009, IEC 60985 and AES11-2009 2 channels (1 stereo output), XLR-3 connector 24bits, transparent forwarding of PCM and compressed audio |
Impedance | 110Ohm, differential |
Output voltage | 3Vpp (typ.) @ 110Ohm differential |
Failsafe | Power fail relay bypass between AES/EBU input and output (can be deactivated by jumper) |
Sync Input | Multi-standard synchronization interface for AES/EBU, wordclock or videosync (black burst, tri level), complies with AES11-2009 and relevant audio or video standards |
Connector type | BNC |
AES/EBU input | 0.3 … 5Vpp @ 75Ohm single-ended |
Wordclock input | 1 … 5Vpp @ 75Ohm single-ended |
Video-sync input | 1Vpp (nom.) @ 75Ohm single-ended Rates supported: 23.975, 24, 24.975, 25, 29.97, 30, 49.95, 50, 59.94, 60fps (SD and HD) |
On-board audio ports and master-sync capable option boards may also be selectable as sync source. | |
Sync Output | Word clock output, complies with AES11-2009 |
Connector type | BNC |
Wordclock output | 2.4V (typ.) @ R = 75Ohm single-ended |
Network Interface | RJ45 connector, 10/100Mbit Ethernet auto sense, full duplex, auto MDI/X |
USB Interface | USB 2.0 connector to internal console interface |
GPI Signals | 8 general purpose inputs (GPI), divided into 2 groups with separate common signal, isolated |
Connector type | D-Sub25 connector female, same for GPO |
Input conditions | 3 … 24Vdc, < 5mA |
Auxiliary supply | 5V (nom.), 200mA (max.), isolated |
GPO Signals | 8 general purpose outputs (GPO), SPST, divided into 2 groups with separate common signal, isolated |
Connector type | D-Sub25 connector female, same for GPI |
Output conditions | 24Vac/dc (max.), 120mA (max.) |
Expansion Slots | 1 general purpose expansion slot for option boards, 1 dedicated expansion slot for 2 microphone inputs [O_DAP_AMIC_a] |
Power Supply | Dual power supply, automatic fail over, 85 … 264Vac, 50 … 60Hz, 58W (max.) |
Environmental | Operating temperature 0 … 50ºC, fan cooled, Non-operating -20 … 70ºC, Humidity < 90%, non-condensing |
Dimensions | 19", 1 RU, 27 cm depth |
Net Weight | ca. 5kg |
Shipping Weight | ca. 7.5kg |
