Description

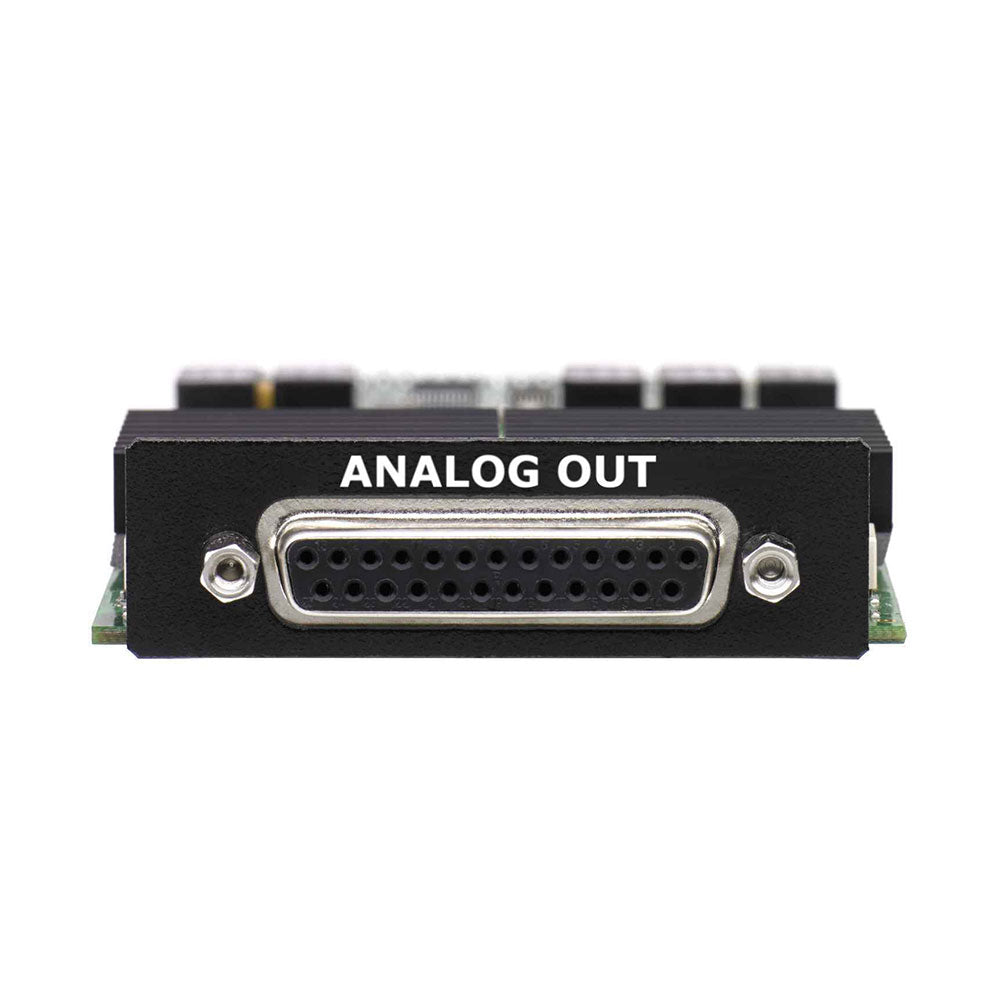

The Option Board 8ch analog Out is an I/O - accessory module designed for the SLIM LINE processing platforms - providing 8 analog outputs on a D-SUB25 connector.
Features:
- 25pin Sub-D female Connector
- impedance: 5 ?, electronically balanced
- max. output level @ 0 dBFS: 0.0 dBu... +24 dBu adjustable in 0.5 dB steps
- dynamic range: 110 dB
- THD+N @ -1 dBFS: 92 dB
- frequency response: 20 Hz... 22 kHz (+/- 0.25 dB)
- crosstalk @ 20 kHz: over 100 dB
- gain mismatch balanced / unbalanced: under 0.3 dB
The Option Board 8ch analog Out is an I/O - accessory module designed for the SLIM LINE processing platforms - providing 8 analog outputs on a D-SUB25 connector.
Features:
- 25pin Sub-D female Connector
- impedance: 5 ?, electronically balanced
- max. output level @ 0 dBFS: 0.0 dBu... +24 dBu adjustable in 0.5 dB steps
- dynamic range: 110 dB
- THD+N @ -1 dBFS: 92 dB
- frequency response: 20 Hz... 22 kHz (+/- 0.25 dB)
- crosstalk @ 20 kHz: over 100 dB
- gain mismatch balanced / unbalanced: under 0.3 dB
