Description

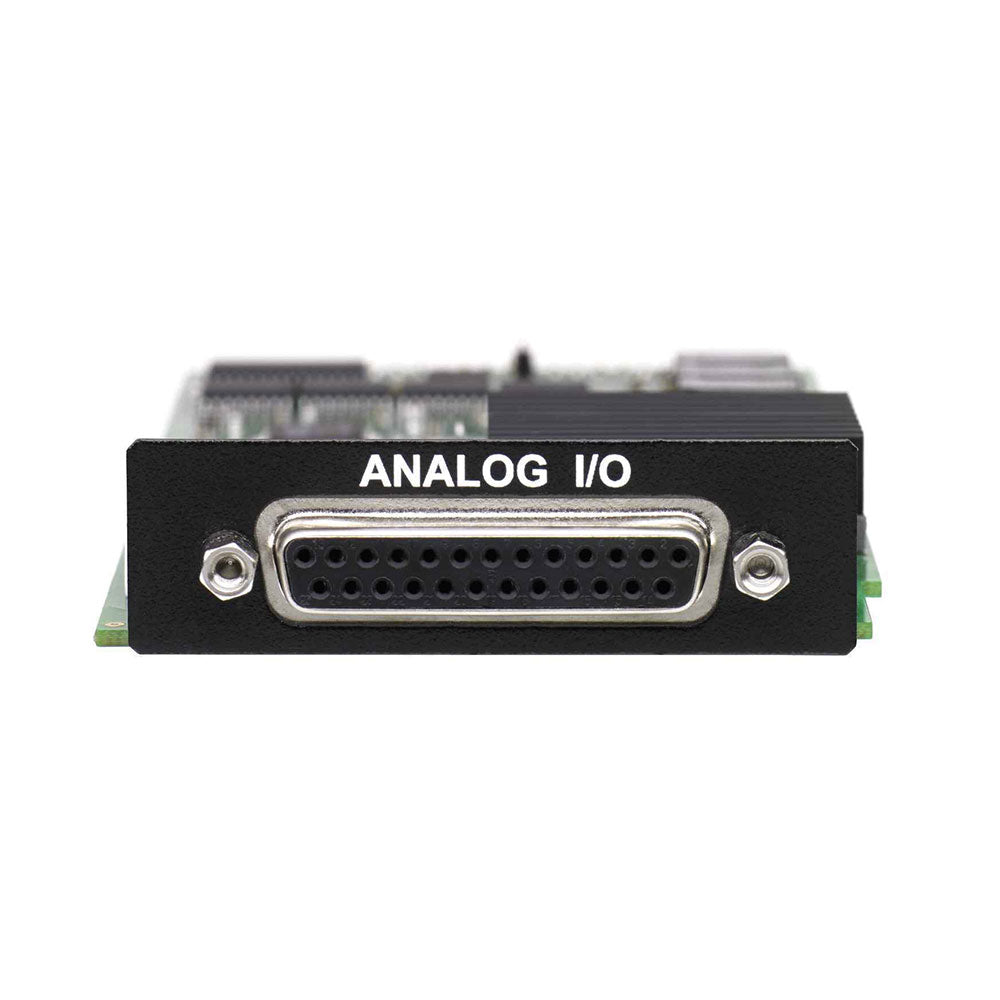

The Option Board 4ch analog I/O - accessory module designed for the SLIM LINE processing platforms - providing 4 analog inputs and 4 analog outputs on a D-SUB25 connector.
Features:
- 25pin Sub-D female Connector
- input-impedance: over 10 kOhm, electronically balanced
- max input level: 0.0 dBu... +24 dBu adjustable in 0.5 dB steps
- dynamic range: 115 dB (input) / 110dB (output)
- THD+N: @ -1 dBFS, 15 dBu: -90 dB (input) / THD+N @ -1 dBFS: -92 dB (output)
- crosstalk @ 20 kHz: over 100 dB
- power fail bypass relay
The Option Board 4ch analog I/O - accessory module designed for the SLIM LINE processing platforms - providing 4 analog inputs and 4 analog outputs on a D-SUB25 connector.
Features:
- 25pin Sub-D female Connector
- input-impedance: over 10 kOhm, electronically balanced
- max input level: 0.0 dBu... +24 dBu adjustable in 0.5 dB steps
- dynamic range: 115 dB (input) / 110dB (output)
- THD+N: @ -1 dBFS, 15 dBu: -90 dB (input) / THD+N @ -1 dBFS: -92 dB (output)
- crosstalk @ 20 kHz: over 100 dB
- power fail bypass relay
