Description

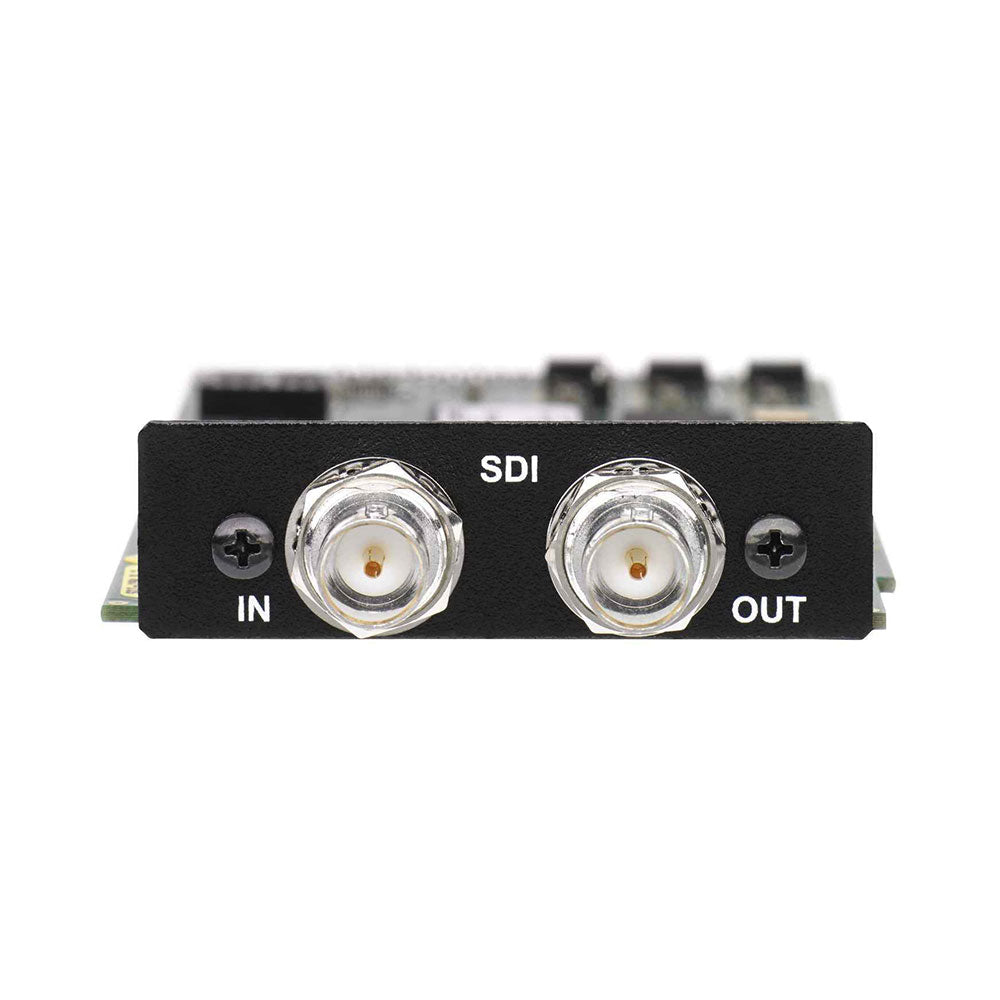

This SLIM LINE's SDI Interface board allows you to access and to modify all embedded audio channels on a SDI stream. It supports e.g. SDI (3G/HD/SD) - Embedding / deembedding, SDI audio group handling, Video delay to compensate audio processing latency and VANC metadata handling.
Features:
- 16 ch audio de-embedder / embedder
- power fail bypass relay (may be activated via GUI)
- up to 15 frames video delay for all supported video standards
- VANC (SMPTE 2020-2) de-embedder / embedder
- 16 x 16 de-embedder matrix (mono routing)
- 32 x 16 embedder matrix (mono routing)
- 320 ms audio delay per audio channel
- Lip-Sync compensation for non-processed audio signals
Standards | 3G - SMPTE 424/425M (Level A/B); HD - SMPTE 292M; SD - SMPTE 259M |
Formats | 1080p23.98, 24, 25, 29.97, 30, 50, 59.95, 60; 1080i50, 59.94, 60; 720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 625i50; 525i59.94, É |
Connector | BNC IEC 169-8); 75 Ohm |
Return Loss | > 15 dB (typ.> 18dB) from 5MHz to 1485 MHz /> 10 dB (typ.> 11 dB) from 1485 MHz to 2970 MHz |
This SLIM LINE's SDI Interface board allows you to access and to modify all embedded audio channels on a SDI stream. It supports e.g. SDI (3G/HD/SD) - Embedding / deembedding, SDI audio group handling, Video delay to compensate audio processing latency and VANC metadata handling.
Features:
- 16 ch audio de-embedder / embedder
- power fail bypass relay (may be activated via GUI)
- up to 15 frames video delay for all supported video standards
- VANC (SMPTE 2020-2) de-embedder / embedder
- 16 x 16 de-embedder matrix (mono routing)
- 32 x 16 embedder matrix (mono routing)
- 320 ms audio delay per audio channel
- Lip-Sync compensation for non-processed audio signals
Standards | 3G - SMPTE 424/425M (Level A/B); HD - SMPTE 292M; SD - SMPTE 259M |
Formats | 1080p23.98, 24, 25, 29.97, 30, 50, 59.95, 60; 1080i50, 59.94, 60; 720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 625i50; 525i59.94, É |
Connector | BNC IEC 169-8); 75 Ohm |
Return Loss | > 15 dB (typ.> 18dB) from 5MHz to 1485 MHz /> 10 dB (typ.> 11 dB) from 1485 MHz to 2970 MHz |
