DALE SKU # KARR-KAN200PLUS

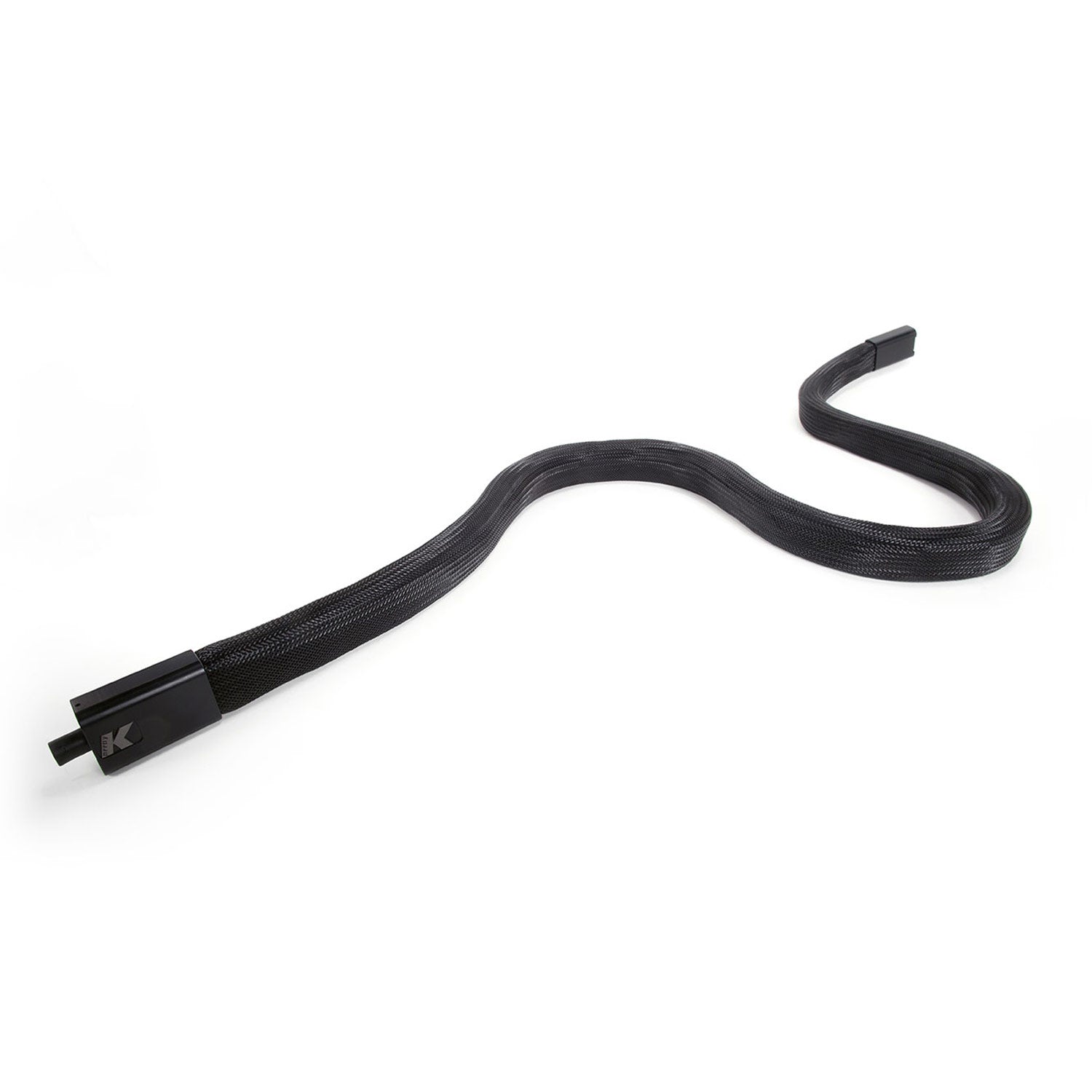

K-Array KAN200+ Anakonda 6.6 Foot Flexible Array Loudspeaker

Contact us

  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Like every K-array product, the Anakonda- KAN200+/KAN200+8 is a revolutionary speaker module that before its existence, was unimaginable. It is designed as a problem solver for situations where a traditional speaker box can’t be used but where good intelligibility, ultra-reliability and a sleek design are required. The Anakonda is the perfect fit for any distributed sound application. Its dedicated presets work on a wide frequency range and can be used as an audio system in combination with K-array subwoofers. Its lightness and flexibility help it to be easily integrated in existing structures. One Anaconda is 2m in length and can be extended with up to a maximum of 16 elements on one line, which creates a 32m line of continuous sound. Each module is equipped with two Speakon NL4 connectors and are completely integrated in the "body" of the speaker. Once they are connected, they are hidden in the shape of the line. Each Anakonda is provided with 2 fabric socks, one black and one white, which can be used to cover and protect the speaker from foreign objects like dust, and also give the possibility to change colors to match its surroundings. Wall brackets are included in the package to make the installation as easy and as fast as possible. All the components of the Anakonda are designed by the K-array R&D department and made in Italy under the K-array quality control system.

    The Bose® LT 9403 is a full-range 3-way loudspeaker designed as the primary reinforcement source for smaller venues, or for use with other LT loudspeakers to form Coherent Zone arrays in medium to large venues. The large-format waveguide and 90° x 40° pattern deliver precise coverage and high intelligibility, providing a cost-effective alternative to multiple-cabinet line arrays for many applications.

    Features:

    • Weather Resistant
    • Visually Discrete
    • Lightweight
    • Pure Array Technology (PAT)

    Frequent Applications:

    • Theaters & Concert Halls
    • Broadcast & Studios
    • Event Productions
    • Hotels
    • Retail
    • Cafes, Bistros & Restaurants
    • Transportation Facilities
    • Museums
    ACOUSTICS
    Power Handling300W (AES)
    Max power600 W (1)
    Impedance32 ½
    Frequency range150 Hz - 18 kHz +/-6dB (2)
    SPL 1W/1mt86 dB (3)
    Maximum SPL102 dB (cont.) - 108 dB (peak) (4)
    COVERAGE
    Horizontal160¡
    Vertical10¡
    CROSSOVER
    TypeExternal Crossover Required
    Frequency50 Hz 24dB/oct suggested minimum
    TRANSDUCERS
    Type16 x 1" Neodymium cone driver with 0.75" voice coil
    POWER AUDIO IN/OUT
    Connectors2 x 4-pin Speakon (1 female, 1 male)
    Wiring1+ 1- (signal IN / LINK) 2+ 2- (Through)
    RECOMMENDED AMPLIFIER
    TypeKMT12, KMT18, KA84
    CERTIFICATIONS
    IP55
    PHYSICAL OVERVIEW
    Dimensions207.0 x 5.6 x 3.53 cm (81.49" x 2.2" x 1.4") (5)
    Weight1.9 Kg (4.2 lb)

    Notes for data:

    1. Maximum RMS applicable power for a musical signal. The reference signal is the one proposed by EIAJstandard
    2. With dedicated preset
    3. Measured @8 m, then scaled @1 m
    4. Measured with musical signal
    5. ( W x H x D)

    Like every K-array product, the Anakonda- KAN200+/KAN200+8 is a revolutionary speaker module that before its existence, was unimaginable. It is designed as a problem solver for situations where a traditional speaker box can’t be used but where good intelligibility, ultra-reliability and a sleek design are required. The Anakonda is the perfect fit for any distributed sound application. Its dedicated presets work on a wide frequency range and can be used as an audio system in combination with K-array subwoofers. Its lightness and flexibility help it to be easily integrated in existing structures. One Anaconda is 2m in length and can be extended with up to a maximum of 16 elements on one line, which creates a 32m line of continuous sound. Each module is equipped with two Speakon NL4 connectors and are completely integrated in the "body" of the speaker. Once they are connected, they are hidden in the shape of the line. Each Anakonda is provided with 2 fabric socks, one black and one white, which can be used to cover and protect the speaker from foreign objects like dust, and also give the possibility to change colors to match its surroundings. Wall brackets are included in the package to make the installation as easy and as fast as possible. All the components of the Anakonda are designed by the K-array R&D department and made in Italy under the K-array quality control system.

    The Bose® LT 9403 is a full-range 3-way loudspeaker designed as the primary reinforcement source for smaller venues, or for use with other LT loudspeakers to form Coherent Zone arrays in medium to large venues. The large-format waveguide and 90° x 40° pattern deliver precise coverage and high intelligibility, providing a cost-effective alternative to multiple-cabinet line arrays for many applications.

    Features:

    • Weather Resistant
    • Visually Discrete
    • Lightweight
    • Pure Array Technology (PAT)

    Frequent Applications:

    • Theaters & Concert Halls
    • Broadcast & Studios
    • Event Productions
    • Hotels
    • Retail
    • Cafes, Bistros & Restaurants
    • Transportation Facilities
    • Museums
    ACOUSTICS
    Power Handling300W (AES)
    Max power600 W (1)
    Impedance32 ½
    Frequency range150 Hz - 18 kHz +/-6dB (2)
    SPL 1W/1mt86 dB (3)
    Maximum SPL102 dB (cont.) - 108 dB (peak) (4)
    COVERAGE
    Horizontal160¡
    Vertical10¡
    CROSSOVER
    TypeExternal Crossover Required
    Frequency50 Hz 24dB/oct suggested minimum
    TRANSDUCERS
    Type16 x 1" Neodymium cone driver with 0.75" voice coil
    POWER AUDIO IN/OUT
    Connectors2 x 4-pin Speakon (1 female, 1 male)
    Wiring1+ 1- (signal IN / LINK) 2+ 2- (Through)
    RECOMMENDED AMPLIFIER
    TypeKMT12, KMT18, KA84
    CERTIFICATIONS
    IP55
    PHYSICAL OVERVIEW
    Dimensions207.0 x 5.6 x 3.53 cm (81.49" x 2.2" x 1.4") (5)
    Weight1.9 Kg (4.2 lb)

    Notes for data:

    1. Maximum RMS applicable power for a musical signal. The reference signal is the one proposed by EIAJstandard
    2. With dedicated preset
    3. Measured @8 m, then scaled @1 m
    4. Measured with musical signal
    5. ( W x H x D)
