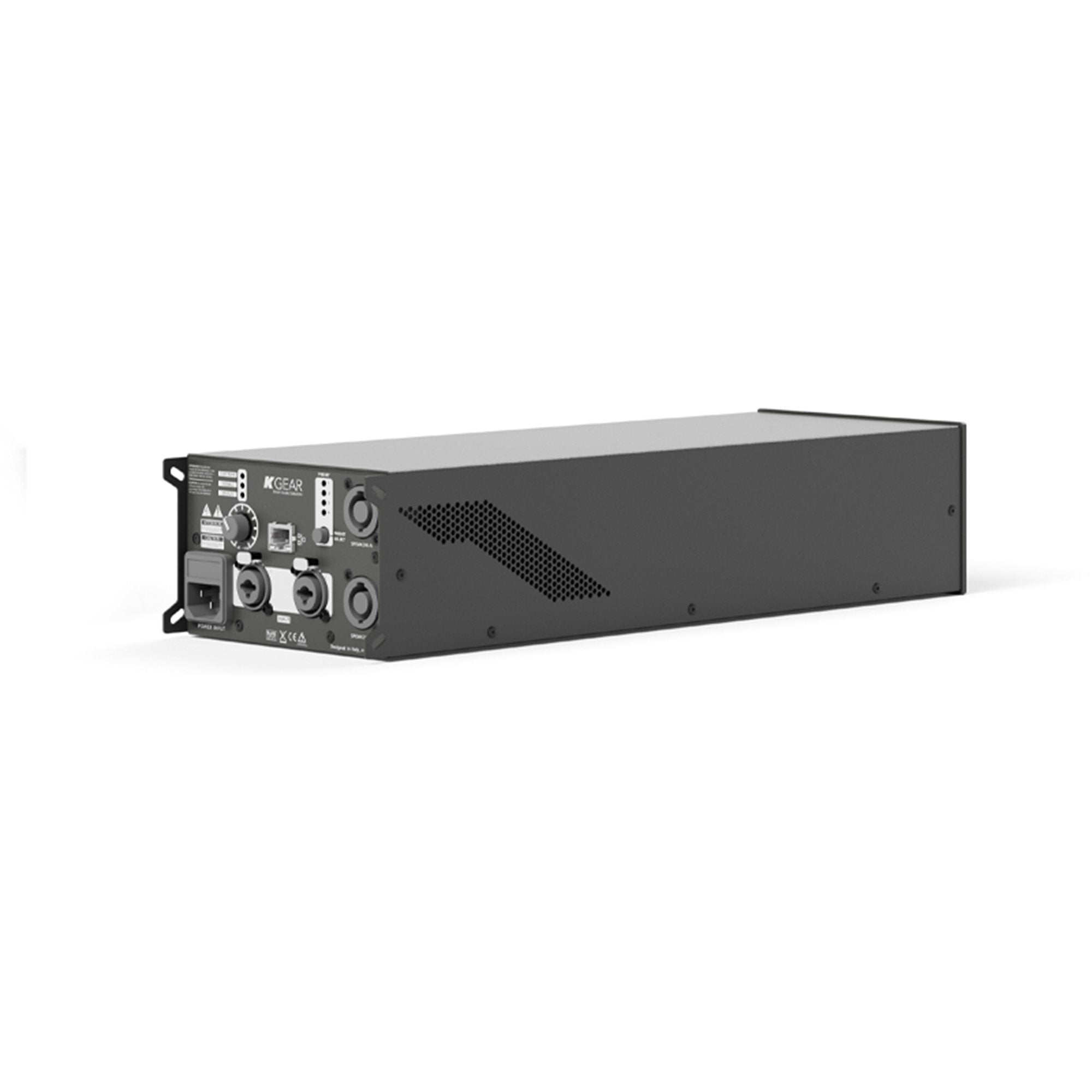

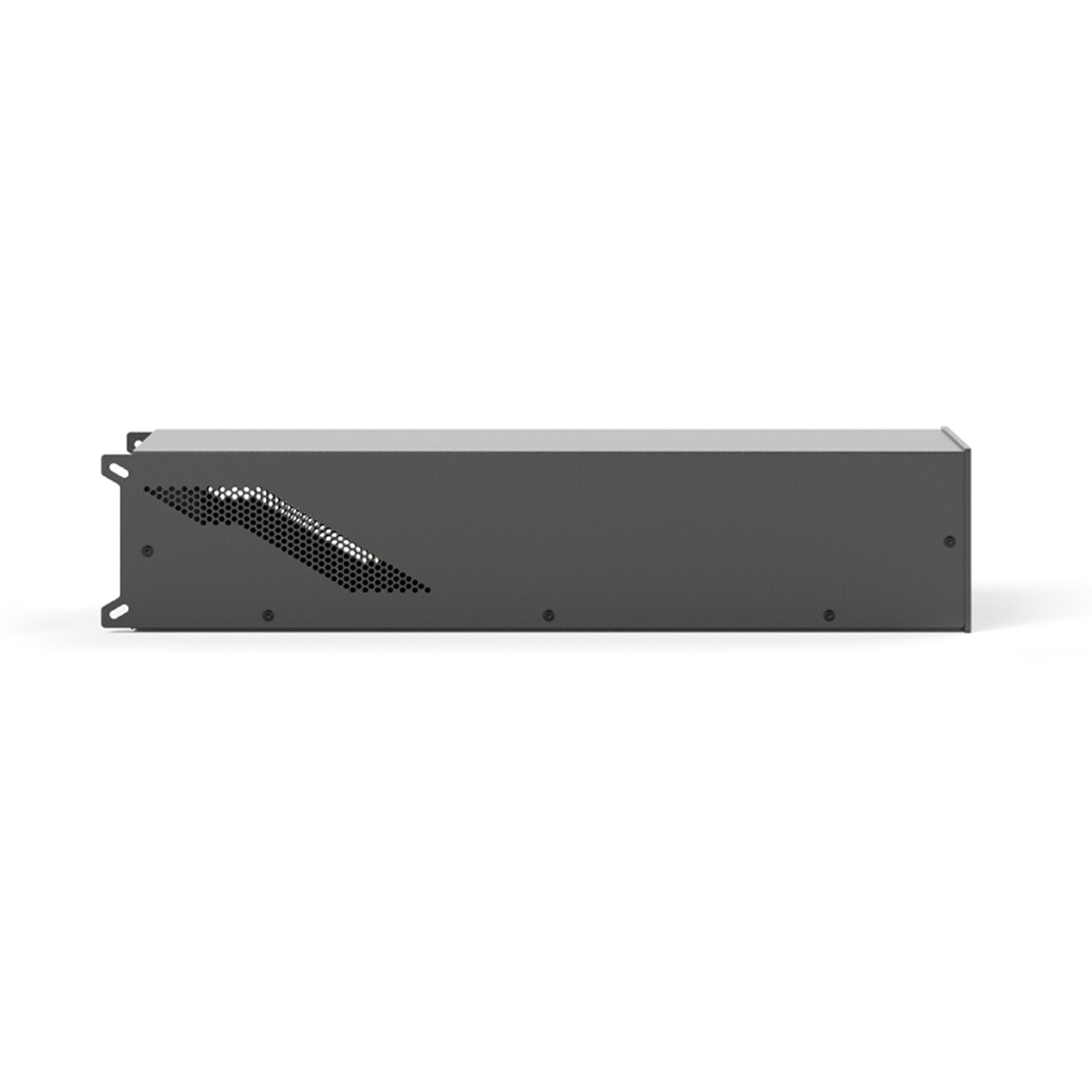

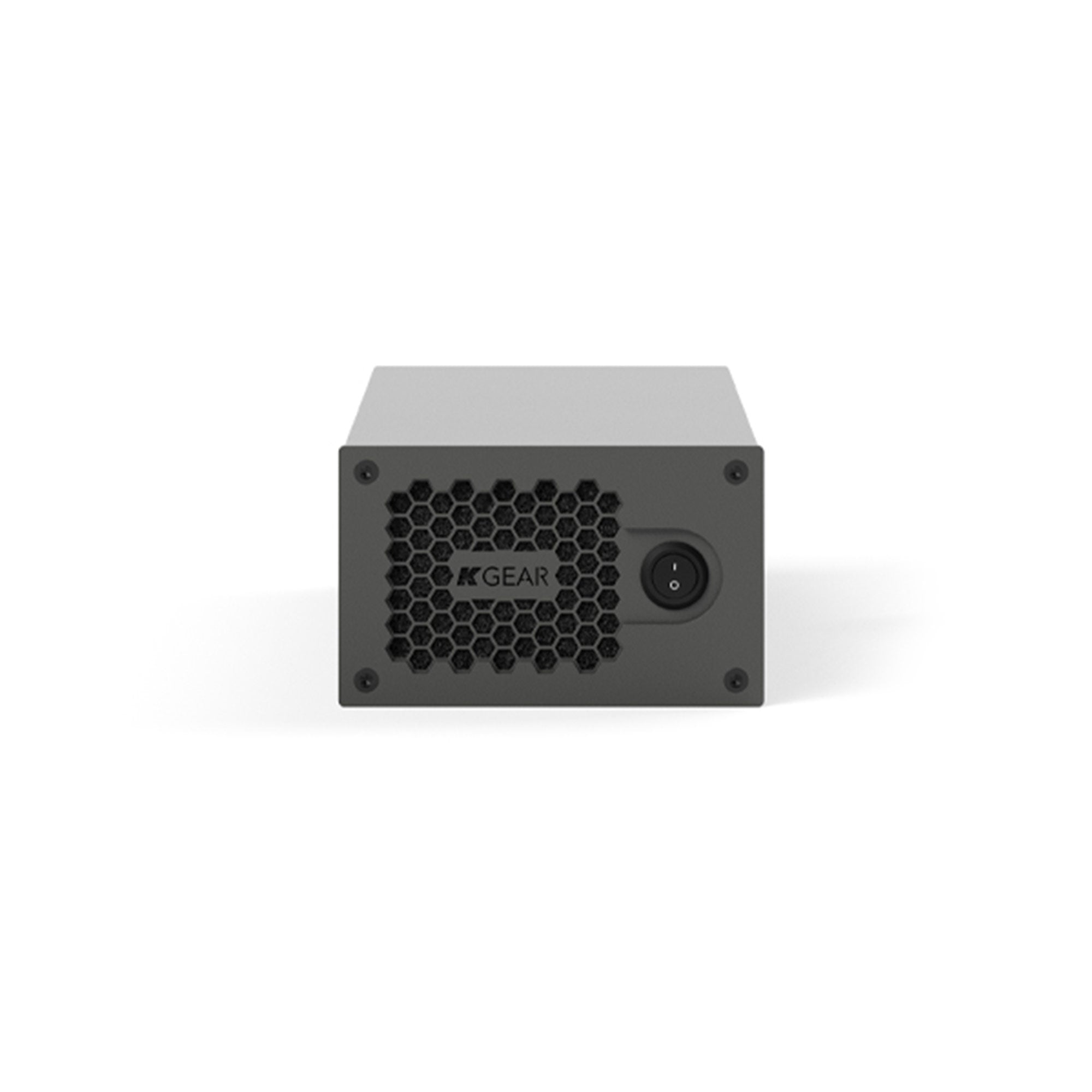

KGear GA43 - 4x750W Mini Install Power Amplifier with DSP
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Compact 4-channel high efficiency class D amplifier featuring Powersoft™ power module and DSP processor.
Delivering up to 750W RMS per channel, this amplifier is able to drive 70V lines without any additional transformer or settings.
Remotely controllable with Powersoft™ ArmoníaPlus software through Ethernet connection.
Thanks to its modular design, 3 elements of GA43 can fit into 2 rack units with a dedicated accessory (G-RACK).
Designed for high performance applications for rental and permanent installations such as touring and events, auditoriums, transportation facilities, houses of worship, stadiums, theme parks and clubs.
| Type | 4-ch Class D power amplifier |
| Output power | 4x 750 Wpeak @ 4 ½ Suitable for 70 V lines |
| Minimum impedance | 4 ½ |
| Frequency response | 20 Hz - 20 kHz |
| Input connectors | 2x Combo XLR-Jack balanced |
| Output connectors | 2x NL4 SpeakON |
| DSP features | Remote control and tuning Input and Output Delay Parametric input EQ Output parametric filters |
| Connectors | RJ45 for remote control 2x Combo XLR Input 2x SpeakON Output 1x PowerCon True AC MAINS |
| Controls | Volume potentiometer Preset selector Remote control through Powersoft ArmoniaPlus Software |
| Protections | Thermal Protections (Power limiting - Thermal Shutdown), Short circuit/overload output protections, stationary high frequency protection, peak limiter, RMS limiter, frequency dependent RMS limiter, Clip limiter |
| Power Consumption | 250W Rated Load (1/8 Max Output Power) |
| Operating Voltage | 90-240V AC, 50-60 Hz |
| Dimensions (WxHxD) | 145 x 90 x 418 mm (5.7 x 3.54 x 16.5 in) |
| Weight | 3,6 kg (7.94 lb) |
| Material | Stainless steel |
| Color | Black |
Compact 4-channel high efficiency class D amplifier featuring Powersoft™ power module and DSP processor.
Delivering up to 750W RMS per channel, this amplifier is able to drive 70V lines without any additional transformer or settings.
Remotely controllable with Powersoft™ ArmoníaPlus software through Ethernet connection.
Thanks to its modular design, 3 elements of GA43 can fit into 2 rack units with a dedicated accessory (G-RACK).
Designed for high performance applications for rental and permanent installations such as touring and events, auditoriums, transportation facilities, houses of worship, stadiums, theme parks and clubs.
| Type | 4-ch Class D power amplifier |
| Output power | 4x 750 Wpeak @ 4 ½ Suitable for 70 V lines |
| Minimum impedance | 4 ½ |
| Frequency response | 20 Hz - 20 kHz |
| Input connectors | 2x Combo XLR-Jack balanced |
| Output connectors | 2x NL4 SpeakON |
| DSP features | Remote control and tuning Input and Output Delay Parametric input EQ Output parametric filters |
| Connectors | RJ45 for remote control 2x Combo XLR Input 2x SpeakON Output 1x PowerCon True AC MAINS |
| Controls | Volume potentiometer Preset selector Remote control through Powersoft ArmoniaPlus Software |
| Protections | Thermal Protections (Power limiting - Thermal Shutdown), Short circuit/overload output protections, stationary high frequency protection, peak limiter, RMS limiter, frequency dependent RMS limiter, Clip limiter |
| Power Consumption | 250W Rated Load (1/8 Max Output Power) |
| Operating Voltage | 90-240V AC, 50-60 Hz |
| Dimensions (WxHxD) | 145 x 90 x 418 mm (5.7 x 3.54 x 16.5 in) |
| Weight | 3,6 kg (7.94 lb) |
| Material | Stainless steel |
| Color | Black |
