Description

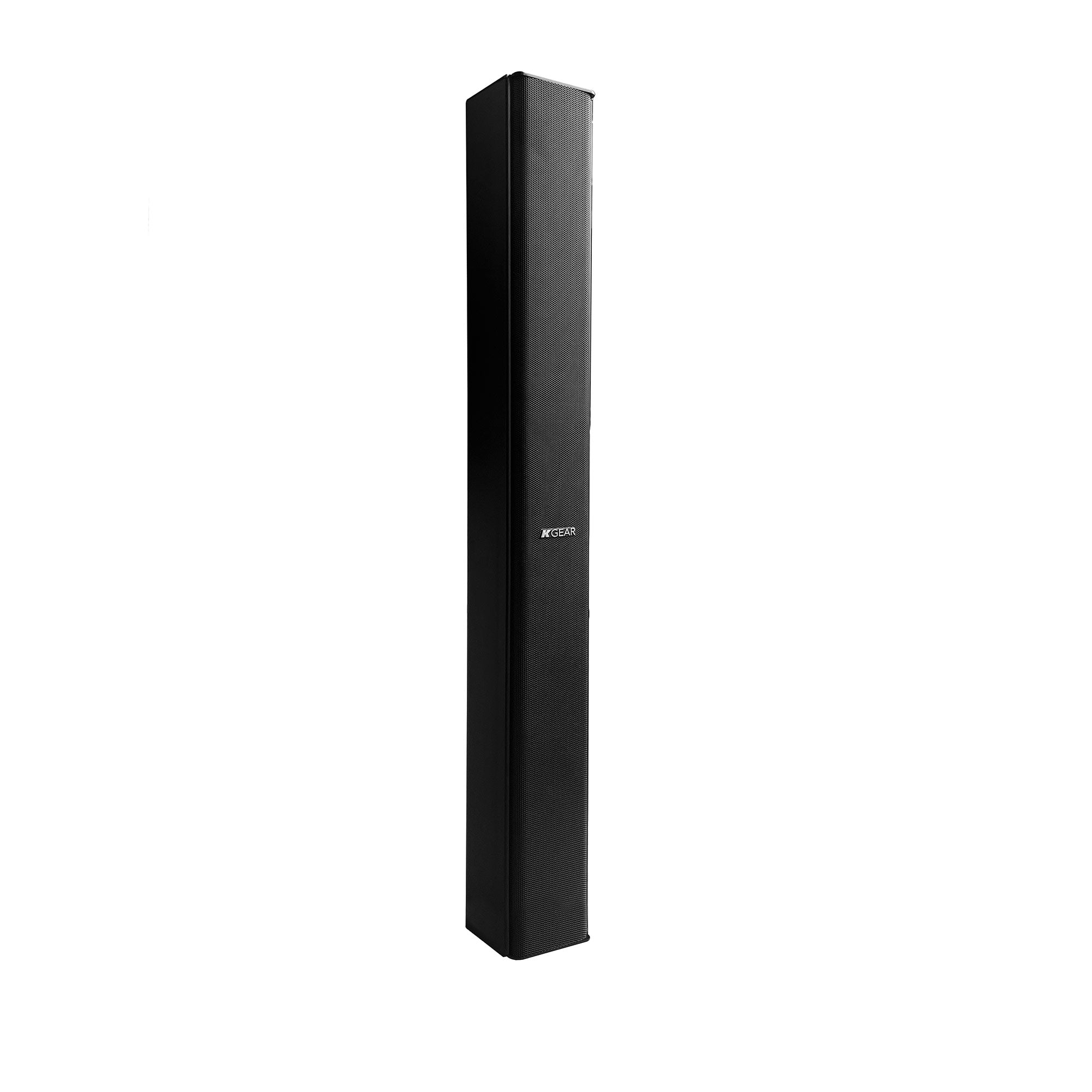

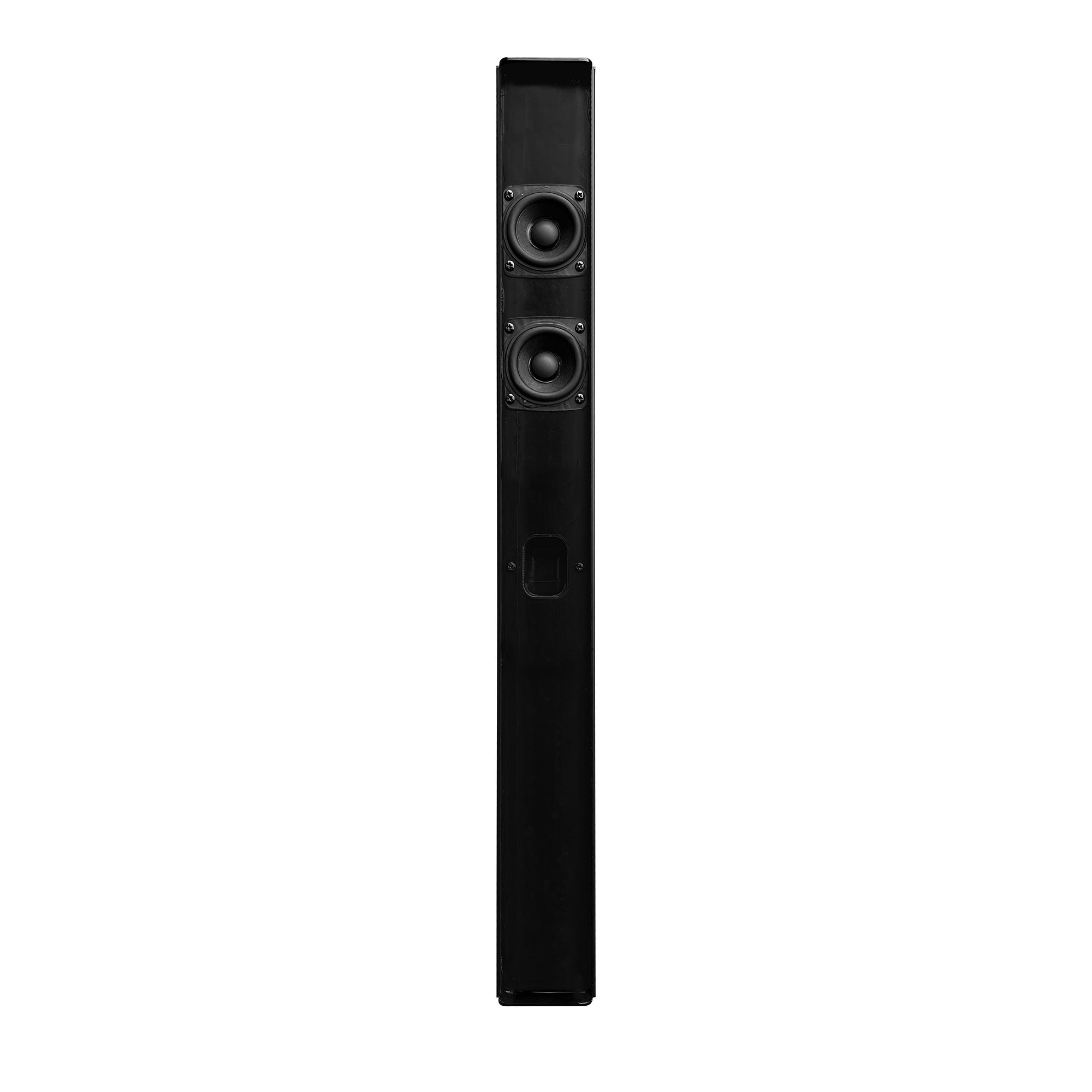

GF22 is an ultra compact passive 2x2" full-range point surce column speaker.
Despite its very small format, GF22 delivers more bass than a standard design, much larger size speaker thanks to a bass reflex cabinet design and an optimized driver filtering. You will be surprised by how much you can get out of such a tiny element!
Sharing the same form factor of GF82 line array, the resilient ABS cabinets makes it perfect for distributed sound applications in fixed outdoor/indoor installations for music and speech in restaurants, hotels, bars, transportation facilities and retail shops.
Type | Passive loudspeaker |
Transducers | 2x 2Ó ferrite mag. woofer |
Frequency Response | 105 Hz Ð 20 kHz (-10 dB) |
Max SPL | 108 dB (peak) |
Power Handling | 25 W |
Nominal Impedance | 16 ½ |
Coverage | V. 90¡ | H. 90¡ |
Dimensions (WxHxD) | 60x590x72 mm (2.36x23.23x2.83 in) |
Weight | 0.8 kg (1.76 lb) |
Material | ABS |
IP rating | IP56 |
Color | Black (GF22) White (GF22W) |
GF22 is an ultra compact passive 2x2" full-range point surce column speaker.
Despite its very small format, GF22 delivers more bass than a standard design, much larger size speaker thanks to a bass reflex cabinet design and an optimized driver filtering. You will be surprised by how much you can get out of such a tiny element!
Sharing the same form factor of GF82 line array, the resilient ABS cabinets makes it perfect for distributed sound applications in fixed outdoor/indoor installations for music and speech in restaurants, hotels, bars, transportation facilities and retail shops.
Type | Passive loudspeaker |
Transducers | 2x 2Ó ferrite mag. woofer |
Frequency Response | 105 Hz Ð 20 kHz (-10 dB) |
Max SPL | 108 dB (peak) |
Power Handling | 25 W |
Nominal Impedance | 16 ½ |
Coverage | V. 90¡ | H. 90¡ |
Dimensions (WxHxD) | 60x590x72 mm (2.36x23.23x2.83 in) |
Weight | 0.8 kg (1.76 lb) |
Material | ABS |
IP rating | IP56 |
Color | Black (GF22) White (GF22W) |
