Description

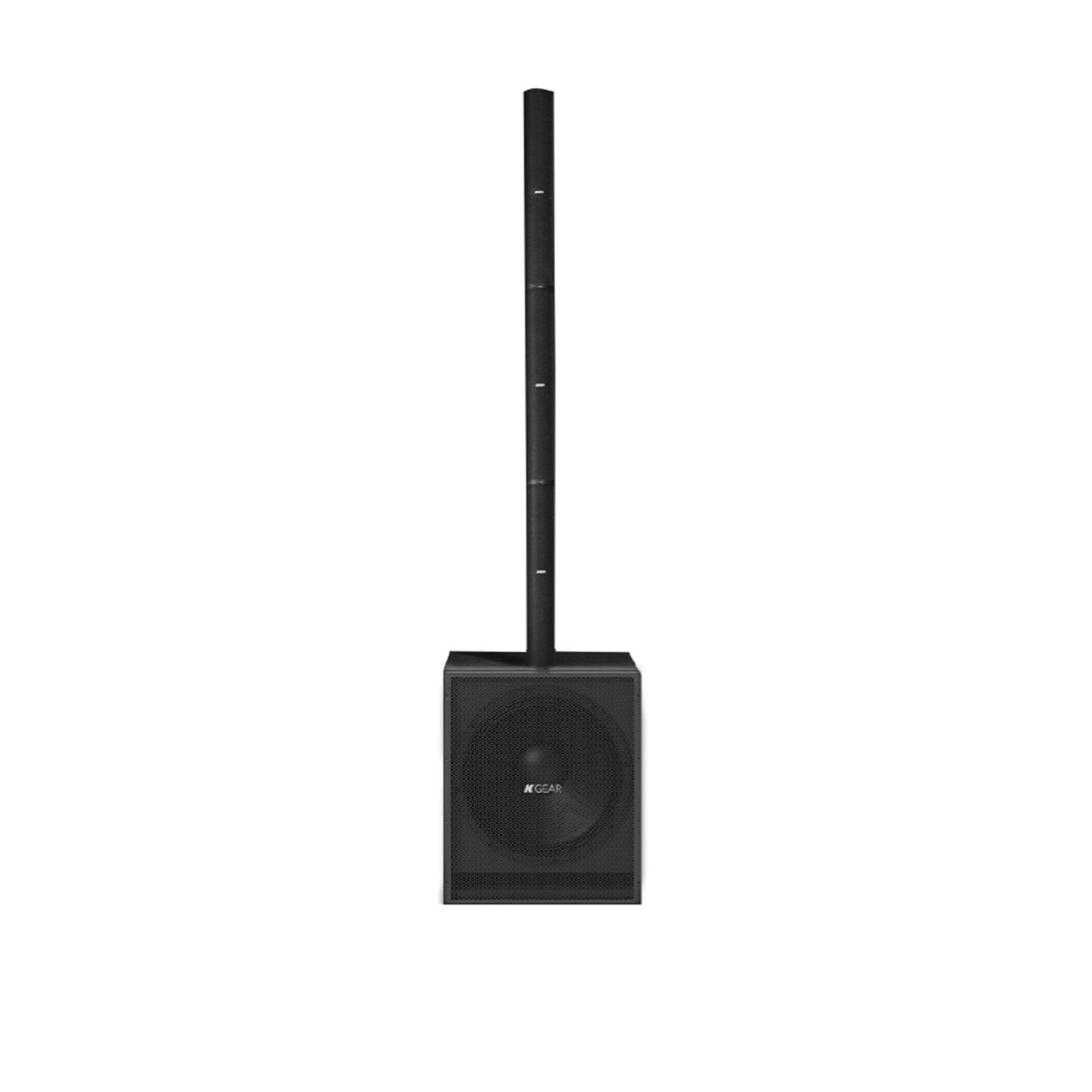

This high performance system includes a 18" passive subwoofer combined with 3 modular 8x2" transducer array elements featuring K-array™ PAT® technology (Pure Array Technology).
The column is composed by 3 8x2" interchangeable array modules with an alternating horizontal inclination of each driver, which gives GP18 a 140° wide horizontal dispersion angle for an incredibly immersive sound stage.
Designed for low eye impact outdoor/indoor applications both for rental and permanent installations for public events, live bands, auditoriums, bars and clubs.
Perfect companion of GP18A to create a stereo system or driven by GA43 and GA46 amplifiers.
User Tip: optimize the cost and combine the system with the passive model whether it is for stereo configurations or distributed sound.
Type | Passive Sub + Column line array system |
Transducers | SUB: 18Ó woofer TOP: 3 modules with 8x2Ó ferrite magnet woofers |
Frequency Response | 30 Hz Ð 20 kHz (-6 dB) |
Max SPL | 125 dB (peak) |
Coverage | V. 20¡ | H. 140¡ |
Power Handling | SUB: 700W | TOP: 350W |
Nominal Impedance | 8½ (sub) + 16 ½ (column) |
Connectors | 2x SpeakON (paralleled) SUB 2+/2- | TOP: 1+/1- |
Dimensions (WxHxD) | 545 x 2220 x 600 mm (21,46 x 87,40 x 23,6 in) |
Weight | 43 kg (94,8 lb) |
Material | Subwoofer: Birch Plywood Column: ABS |
Color | Black |
This high performance system includes a 18" passive subwoofer combined with 3 modular 8x2" transducer array elements featuring K-array™ PAT® technology (Pure Array Technology).
The column is composed by 3 8x2" interchangeable array modules with an alternating horizontal inclination of each driver, which gives GP18 a 140° wide horizontal dispersion angle for an incredibly immersive sound stage.
Designed for low eye impact outdoor/indoor applications both for rental and permanent installations for public events, live bands, auditoriums, bars and clubs.
Perfect companion of GP18A to create a stereo system or driven by GA43 and GA46 amplifiers.
User Tip: optimize the cost and combine the system with the passive model whether it is for stereo configurations or distributed sound.
Type | Passive Sub + Column line array system |
Transducers | SUB: 18Ó woofer TOP: 3 modules with 8x2Ó ferrite magnet woofers |
Frequency Response | 30 Hz Ð 20 kHz (-6 dB) |
Max SPL | 125 dB (peak) |
Coverage | V. 20¡ | H. 140¡ |
Power Handling | SUB: 700W | TOP: 350W |
Nominal Impedance | 8½ (sub) + 16 ½ (column) |
Connectors | 2x SpeakON (paralleled) SUB 2+/2- | TOP: 1+/1- |
Dimensions (WxHxD) | 545 x 2220 x 600 mm (21,46 x 87,40 x 23,6 in) |
Weight | 43 kg (94,8 lb) |
Material | Subwoofer: Birch Plywood Column: ABS |
Color | Black |
