Description

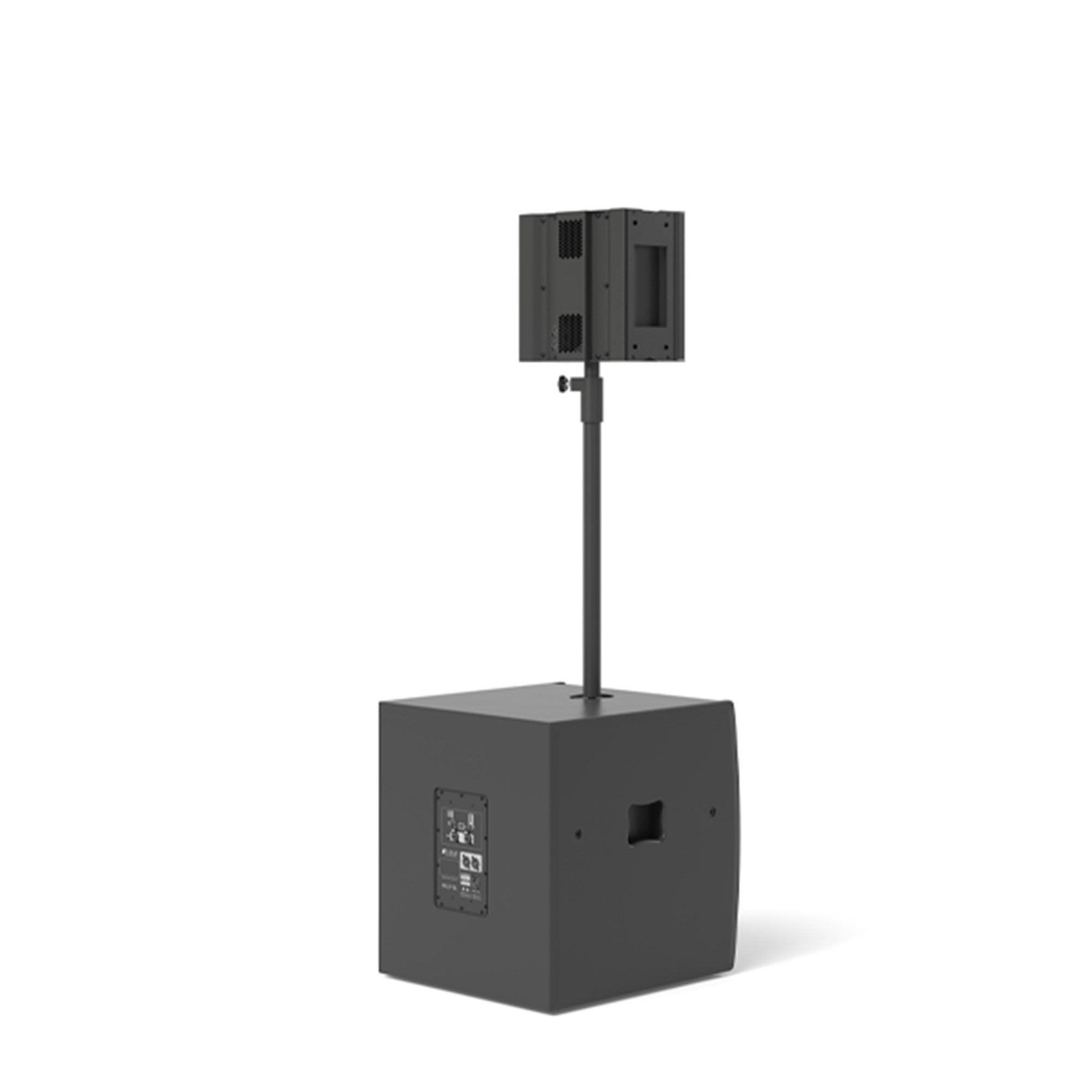

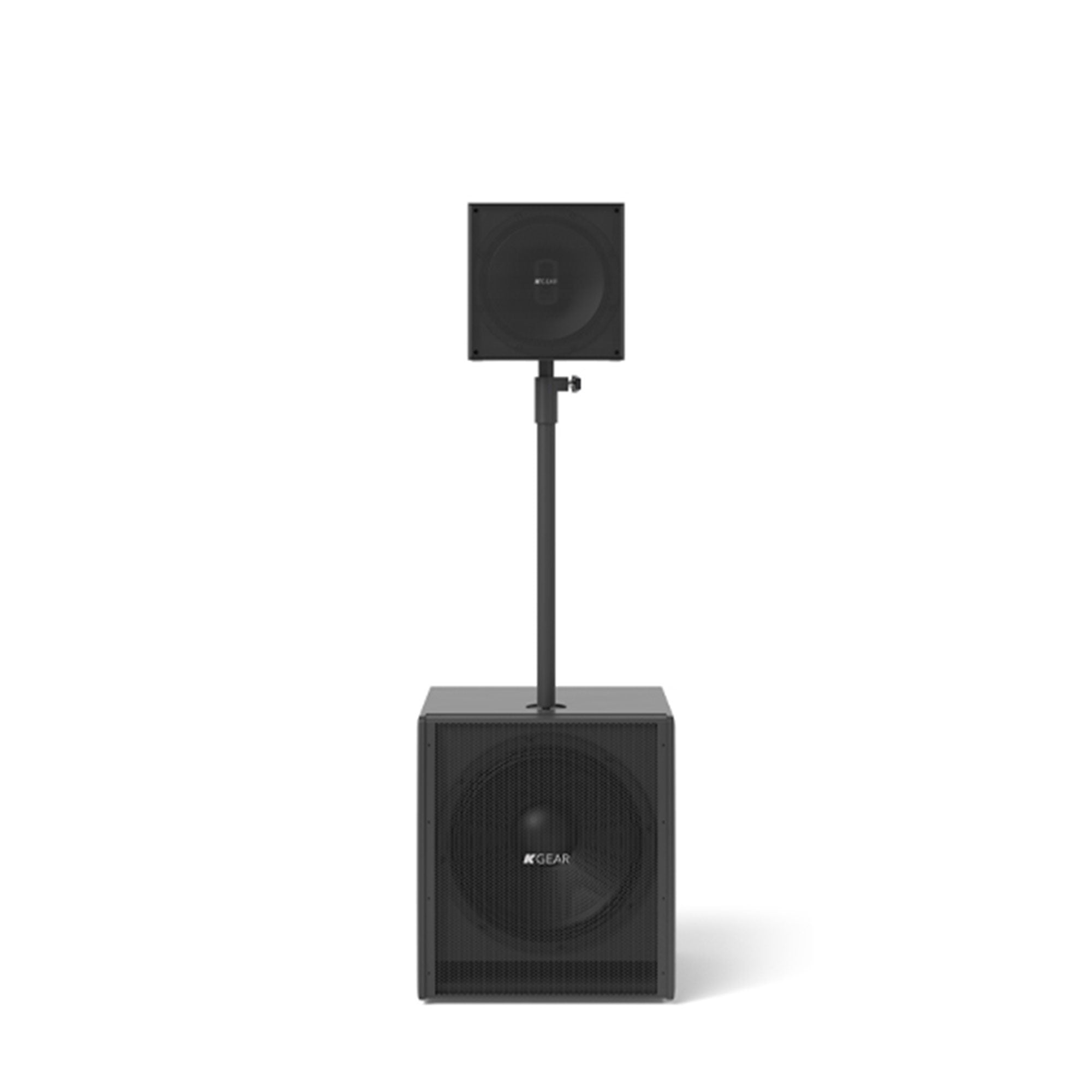

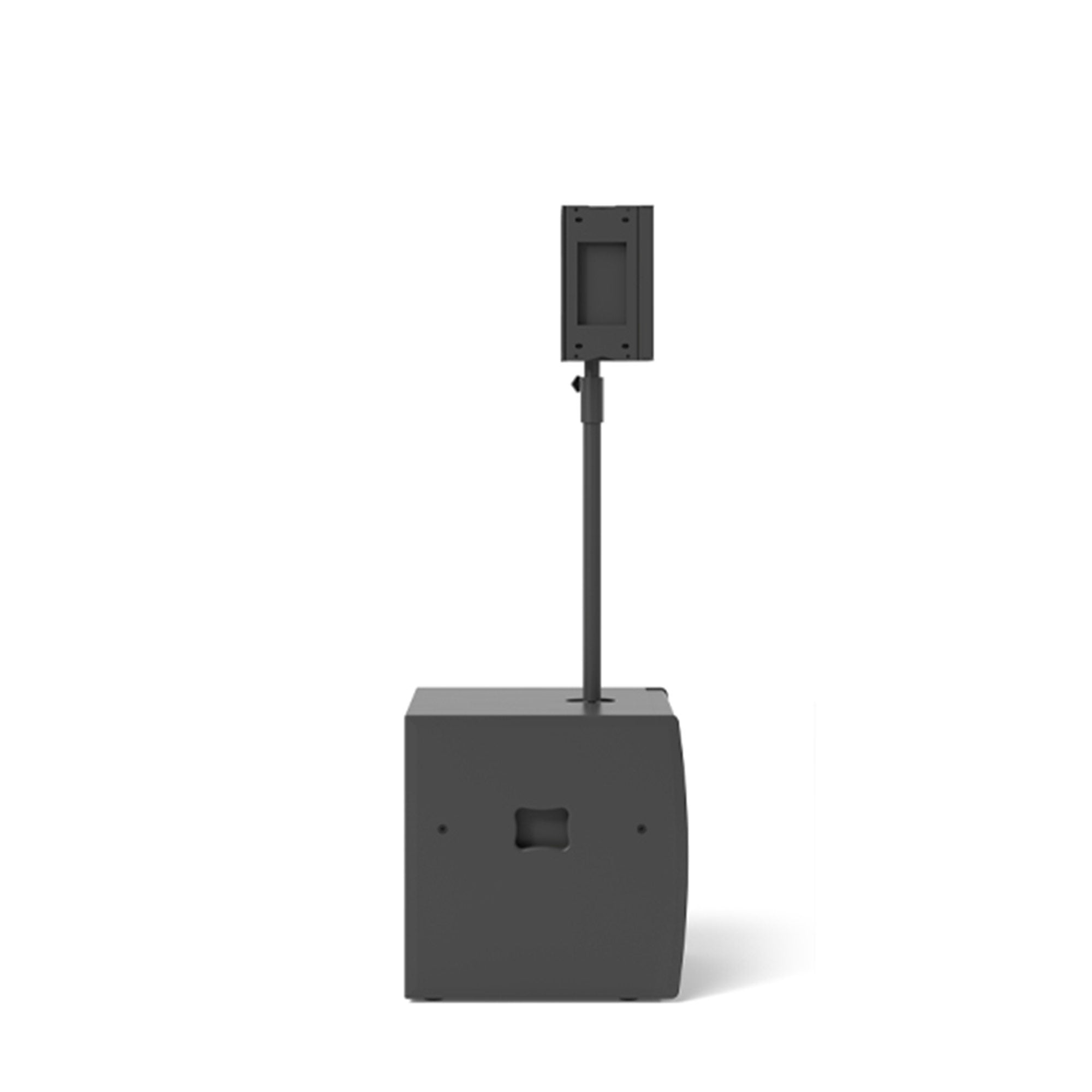

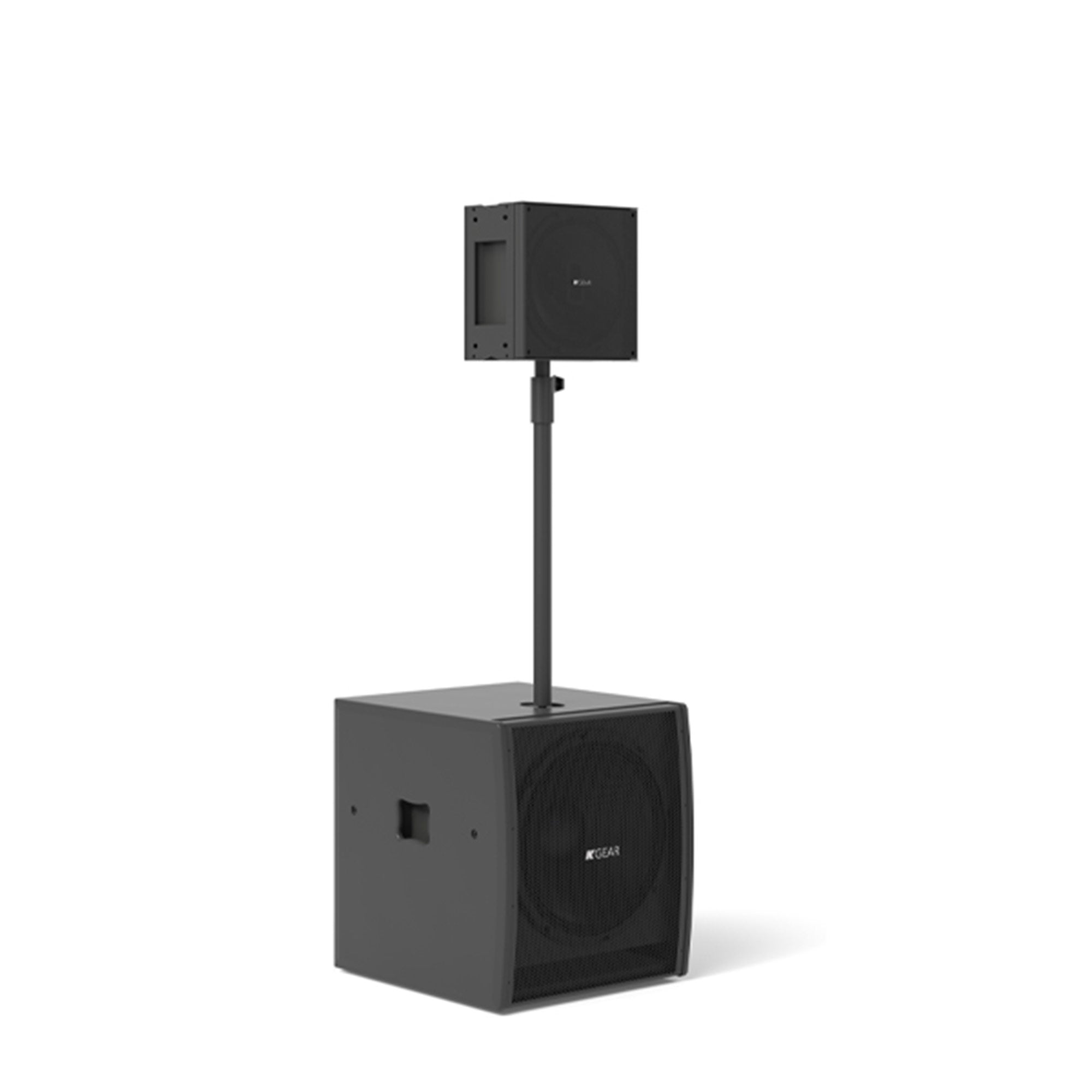

Heavy duty 18" passive subwoofer combined with GH12, our 12" passive coaxial satellite featuring K-array™ SAT® (Slim Array Technology).
Designed for small to medium high performance outdoor/indoor applications both for rental and permanent installations for touring, live bands, auditoriums, pubs and clubs.
High performance to size/weight ratio featuring easy and fast setup possibility.
User Tip: optimize the cost and combine the system with the passive model whether it is for stereo configurations or if you prefer to extend the cluster.
Type | Passive Sub + Satellite system |
Transducers | SUB: 18Ó woofer TOP: 12Ó coaxial woofer, 1Ó compression driver |
Frequency Response | 30 Hz - 20 kHz (-6dB) |
Max SPL | 129 dB |
Coverage | V. 30¡ | H. 90¡ |
Power Handling | SUB: 700W | TOP: 200W |
Nominal Impedance | 8½ (sub) + 32 ½ (satellite) |
Connectors | 2x SpeakON (paralleled) SUB 2+/2- | TOP: 1+/1- |
Dimensions (WxHxD) | 545 x 1690 (min) x 600 mm (21,46 x 66,54 x 23,6 in) |
Weight | 52 kg (114,64 lb) |
Material | Subwoofer: Birch Plywood Satellite: Stainless steel |
Color | Black |
Heavy duty 18" passive subwoofer combined with GH12, our 12" passive coaxial satellite featuring K-array™ SAT® (Slim Array Technology).
Designed for small to medium high performance outdoor/indoor applications both for rental and permanent installations for touring, live bands, auditoriums, pubs and clubs.
High performance to size/weight ratio featuring easy and fast setup possibility.
User Tip: optimize the cost and combine the system with the passive model whether it is for stereo configurations or if you prefer to extend the cluster.
Type | Passive Sub + Satellite system |
Transducers | SUB: 18Ó woofer TOP: 12Ó coaxial woofer, 1Ó compression driver |
Frequency Response | 30 Hz - 20 kHz (-6dB) |
Max SPL | 129 dB |
Coverage | V. 30¡ | H. 90¡ |
Power Handling | SUB: 700W | TOP: 200W |
Nominal Impedance | 8½ (sub) + 32 ½ (satellite) |
Connectors | 2x SpeakON (paralleled) SUB 2+/2- | TOP: 1+/1- |
Dimensions (WxHxD) | 545 x 1690 (min) x 600 mm (21,46 x 66,54 x 23,6 in) |
Weight | 52 kg (114,64 lb) |
Material | Subwoofer: Birch Plywood Satellite: Stainless steel |
Color | Black |
