Description

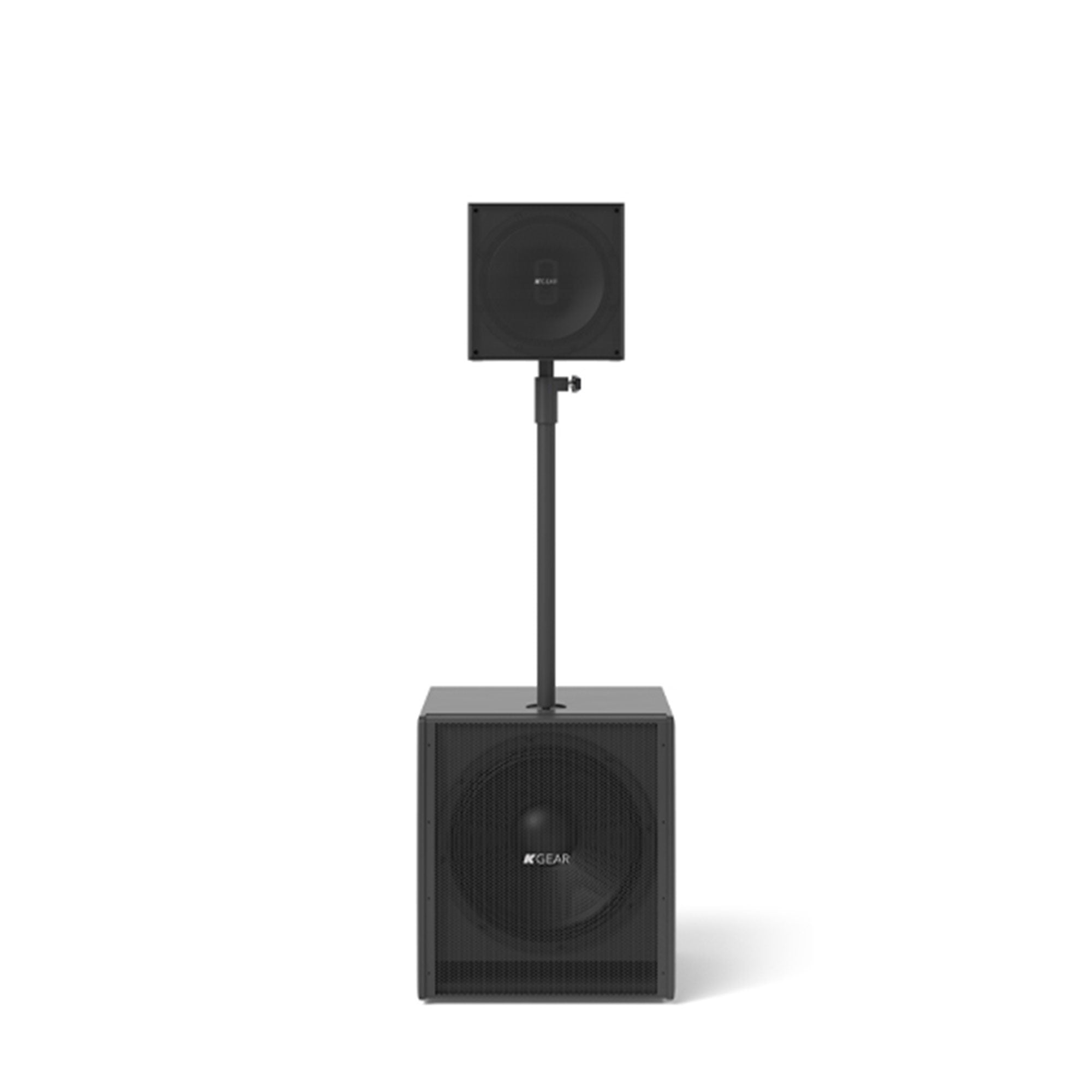

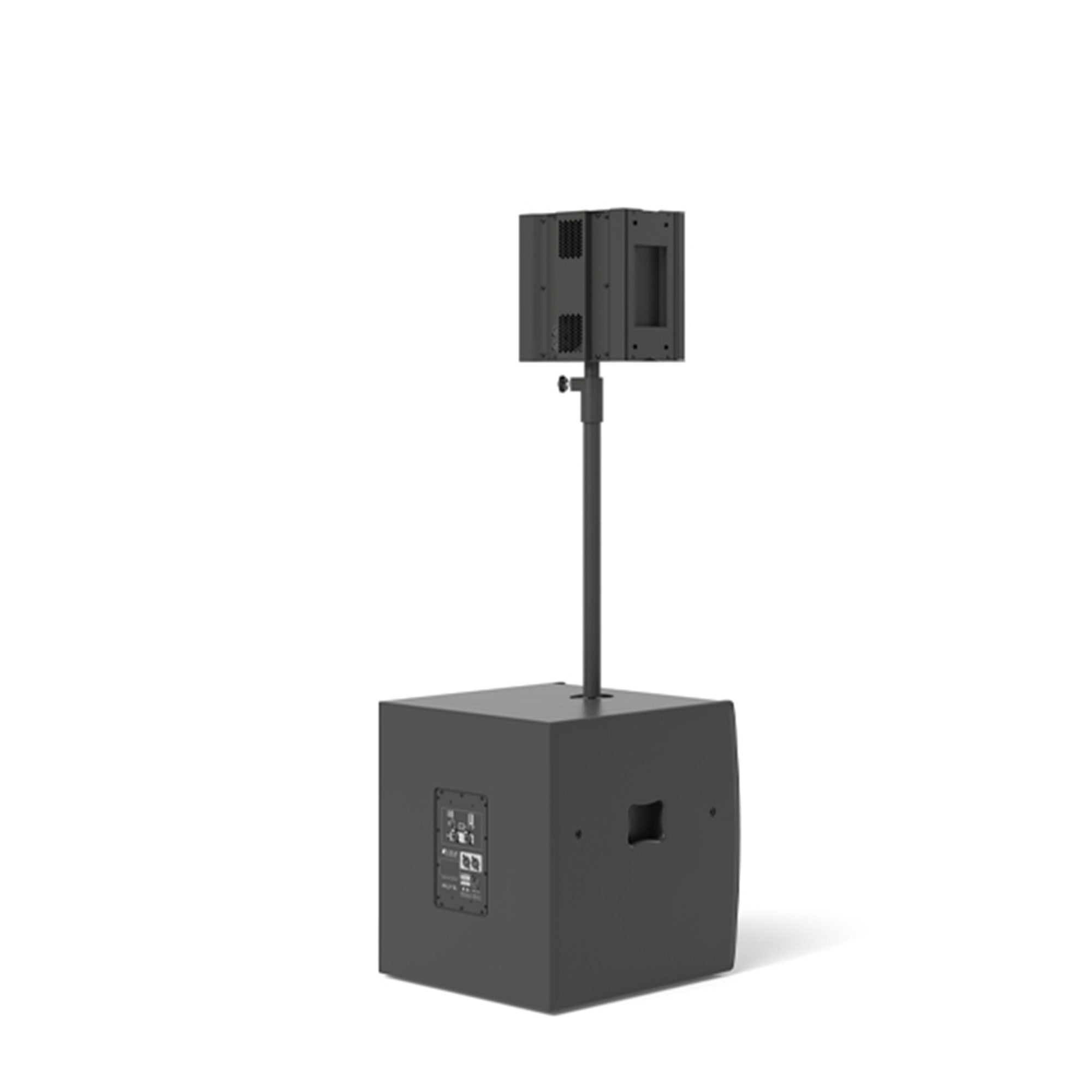

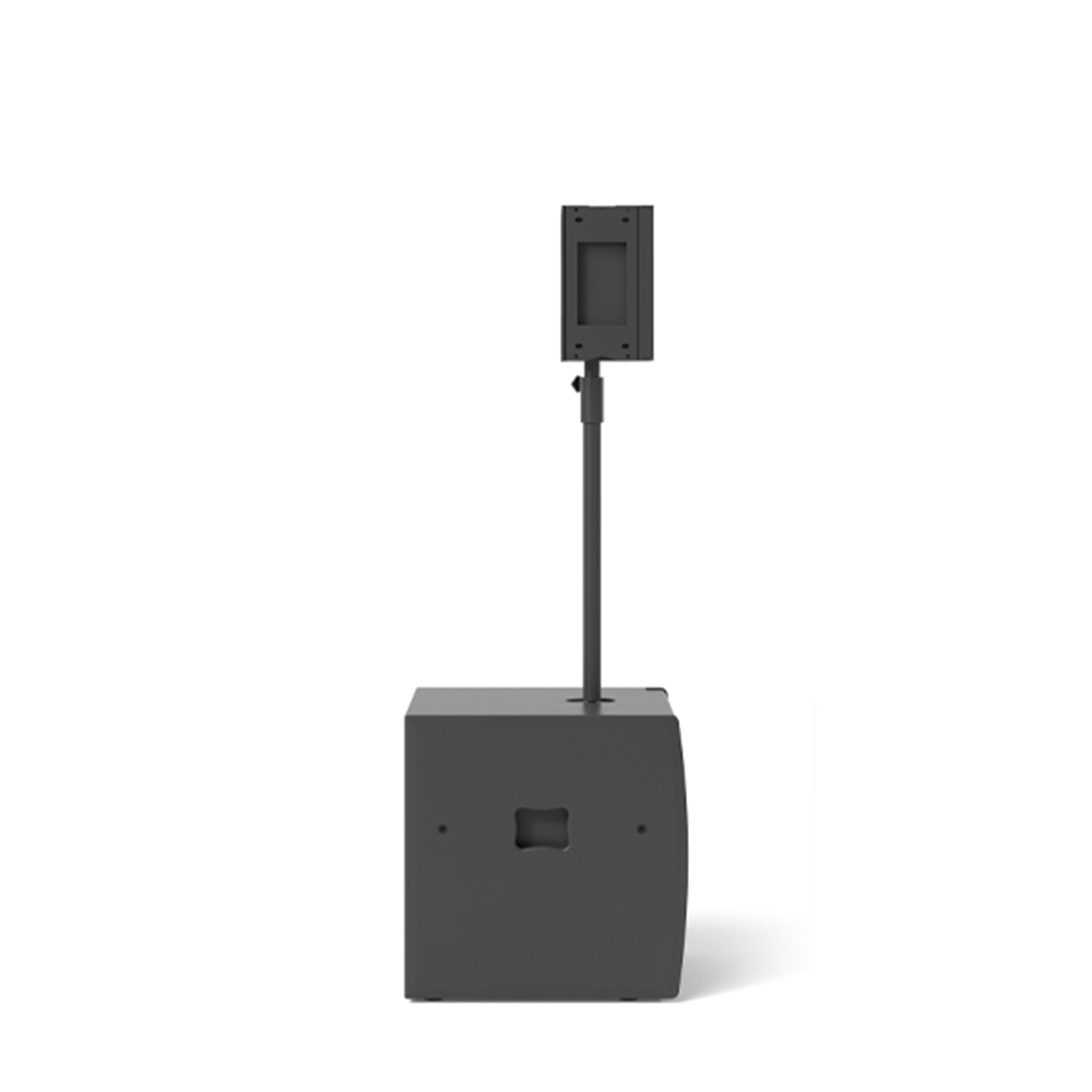

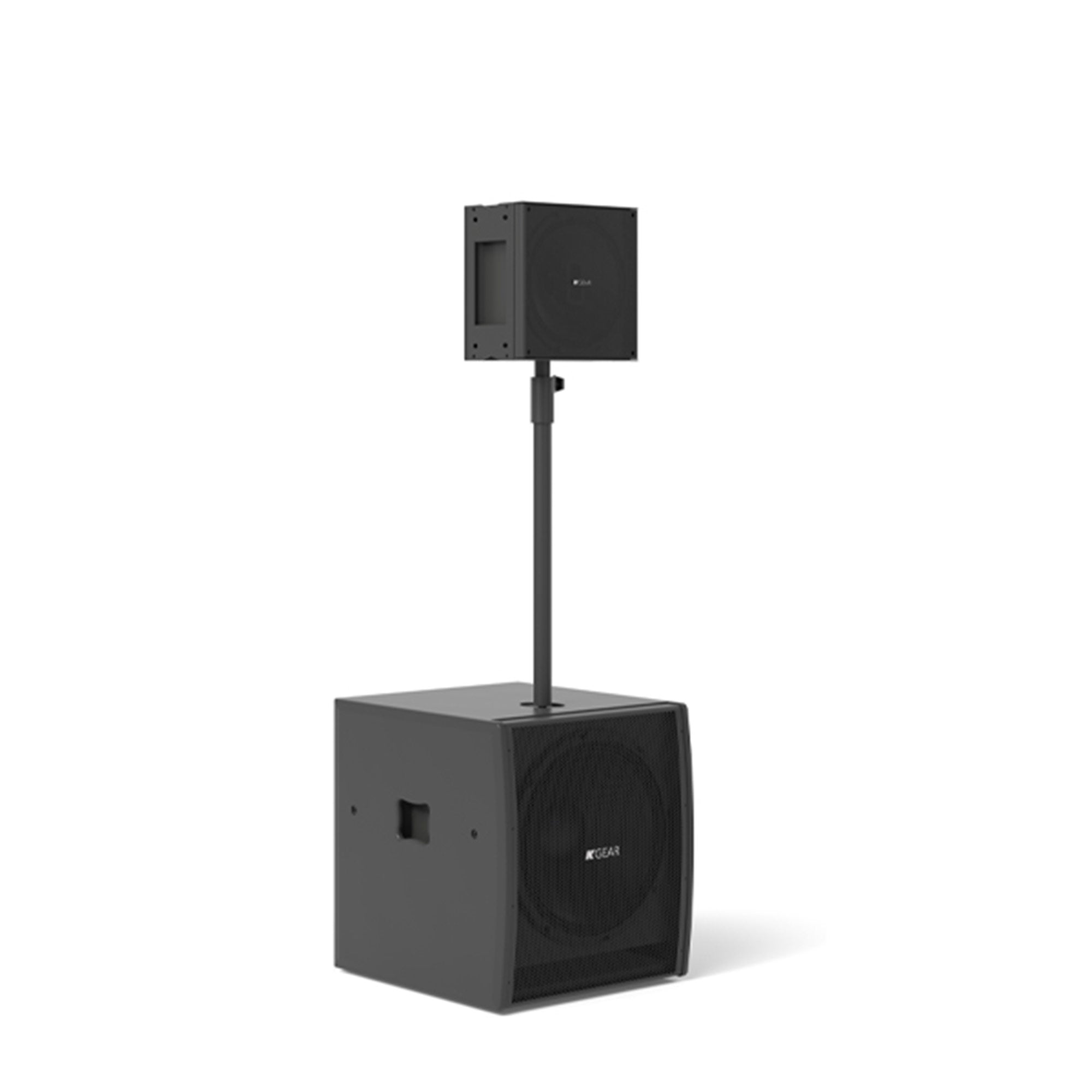

Heavy duty 18" powered subwoofer combined with GH12, our 12" passive coaxial satellite featuring K-array™ SAT® (Slim Array Technology).
It can drive up to 3 GP1812 passive system in a stereo configuration. It features Powersoft™ DSP and power module with ethernet remote control and Armonia™ control software.
Designed for small to medium high performance outdoor/indoor applications both for rental and permanent installations for touring, live bands, auditoriums, pubs and clubs.
High performance to size/weight ratio featuring easy and fast setup possibility.
User Tip: optimize the cost and combine the system with the passive model whether it is for stereo configurations or if you prefer to extend the cluster.
Type | Powered Sub + Satellite system |
Transducers | SUB: 18Ó woofer TOP: 12Ó coaxial woofer, 1Ó compression driver |
Frequency Response | 30 Hz - 20 kHz (-6dB) |
Max SPL | 129 dB |
Coverage | V. 30¡ | H. 90¡ |
Amp Module | 4-channel Class-D |
Output Power | 4x 1500 W @ 4 ½ |
Power Consumption | 500W Rated Load (1/8 Max Output Power) |
Operating Voltage | 100-240V AC, 50-60 Hz |
DSP features | Remote control and tuning Input and Output Delay Parametric input EQ Output parametric filters |
Connectors | Volume potentiometer RJ45 for remote control 2x Combo XLR Input 2x SpeakON Output 1x PowerCon True AC MAINS |
Controls | Volume potentiometer Preset selector Remote control through Powersoft ArmoniaPlus Software |
Dimensions (WxHxD) | 545 x 1690 (min) x 600 mm (21,46 x 66,54 x 23,6 in) |
Weight | 52 kg (114,64 lb) |
Material | Subwoofer: Birch Plywood Satellite: Stainless steel |
Color | Black |
