Description

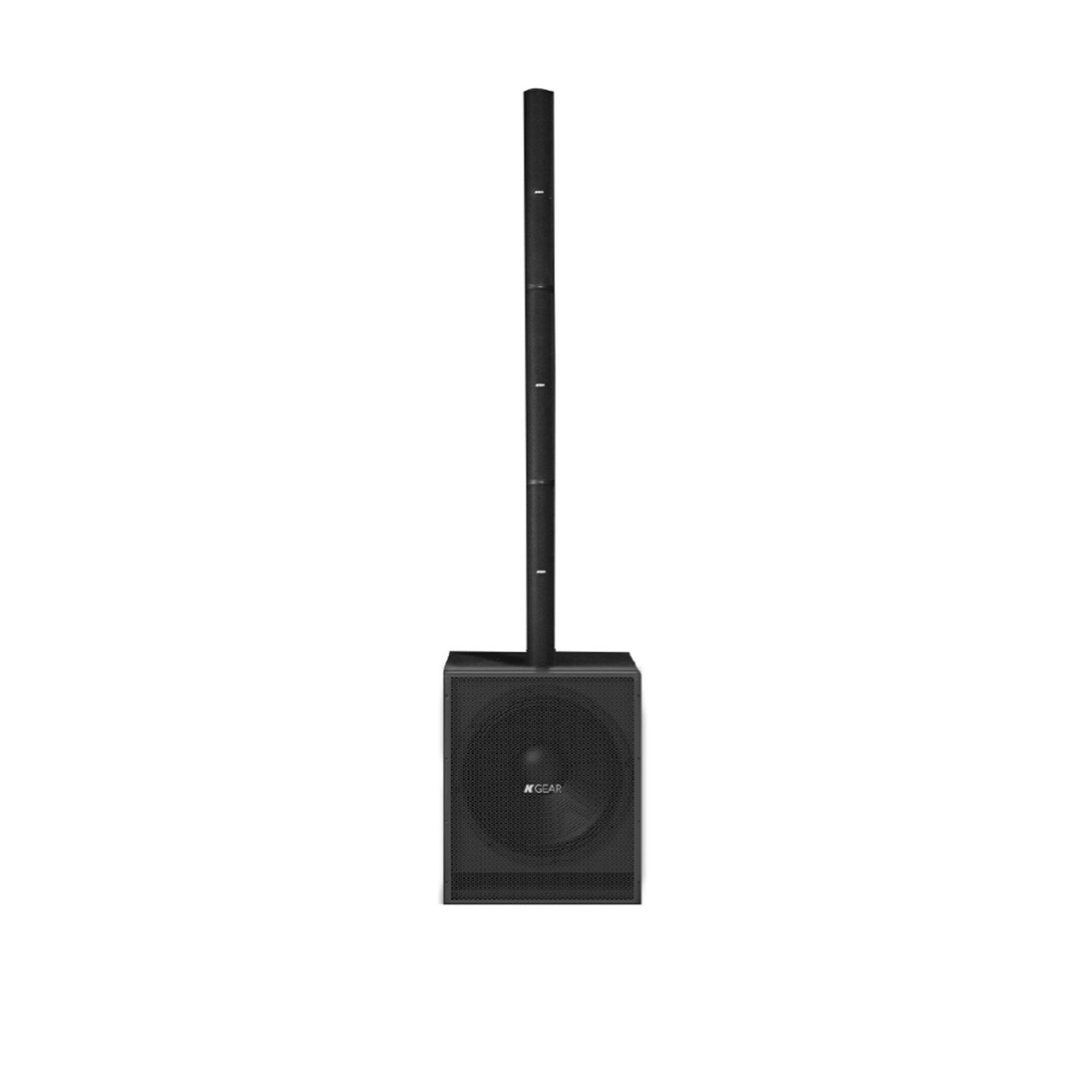

Heavy duty 18" powered subwoofer combined with 3 modular 8x2" transducer array elements featuring PAT® K-array™ technology. It can drive up to 3 GP18 passive system in a stereo configuration. It features Powersoft™ DSP and power module with ethernet remote control and Armonia™ control software.
Designed for high performance outdoor/indoor applications both for rental and permanent installations for touring, live bands, auditorium, and clubs.
High performance to size/weight ratio featuring easy and fast setup possibility.
User Tip: optimize the cost and combine the system with the passive model whether it is for stereo configurations or if you prefer to extend the cluster.
Type | Powered Sub + Column line array system |
Transducers | SUB: 18Ó woofer TOP: 3 modules with 8x2Ó ferrite magnet woofers |
Frequency Response | 30 Hz Ð 20 kHz (-6 dB) |
Max SPL | 125 dB (peak) |
Coverage | V. 20¡ | H. 140¡ |
Amp Module | 4-channel Class-D |
Output Power | 4x 1500 W @ 4 ½ |
Power Consumption | 500W Rated Load (1/8 Max Output Power) |
Operating Voltage | 100-240V AC, 50-60 Hz |
DSP features | Remote control and tuning Input and Output Delay Parametric input EQ Output parametric filters |
Connectors | Volume potentiometer RJ45 for remote control 2x Combo XLR Input 2x SpeakON Output 1x PowerCon True AC MAINS |
Controls | Volume potentiometer Preset selector Remote control through Powersoft ArmoniaPlus Software |
Dimensions (WxHxD) | 545 x 2220 x 600 mm (21,46 x 87,40 x 23,6 in) |
Weight | 43 kg (94,8 lb) |
Material | Subwoofer: Birch Plywood Column: ABS |
Color | Black |
Heavy duty 18" powered subwoofer combined with 3 modular 8x2" transducer array elements featuring PAT® K-array™ technology. It can drive up to 3 GP18 passive system in a stereo configuration. It features Powersoft™ DSP and power module with ethernet remote control and Armonia™ control software.
Designed for high performance outdoor/indoor applications both for rental and permanent installations for touring, live bands, auditorium, and clubs.
High performance to size/weight ratio featuring easy and fast setup possibility.
User Tip: optimize the cost and combine the system with the passive model whether it is for stereo configurations or if you prefer to extend the cluster.
Type | Powered Sub + Column line array system |
Transducers | SUB: 18Ó woofer TOP: 3 modules with 8x2Ó ferrite magnet woofers |
Frequency Response | 30 Hz Ð 20 kHz (-6 dB) |
Max SPL | 125 dB (peak) |
Coverage | V. 20¡ | H. 140¡ |
Amp Module | 4-channel Class-D |
Output Power | 4x 1500 W @ 4 ½ |
Power Consumption | 500W Rated Load (1/8 Max Output Power) |
Operating Voltage | 100-240V AC, 50-60 Hz |
DSP features | Remote control and tuning Input and Output Delay Parametric input EQ Output parametric filters |
Connectors | Volume potentiometer RJ45 for remote control 2x Combo XLR Input 2x SpeakON Output 1x PowerCon True AC MAINS |
Controls | Volume potentiometer Preset selector Remote control through Powersoft ArmoniaPlus Software |
Dimensions (WxHxD) | 545 x 2220 x 600 mm (21,46 x 87,40 x 23,6 in) |
Weight | 43 kg (94,8 lb) |
Material | Subwoofer: Birch Plywood Column: ABS |
Color | Black |
