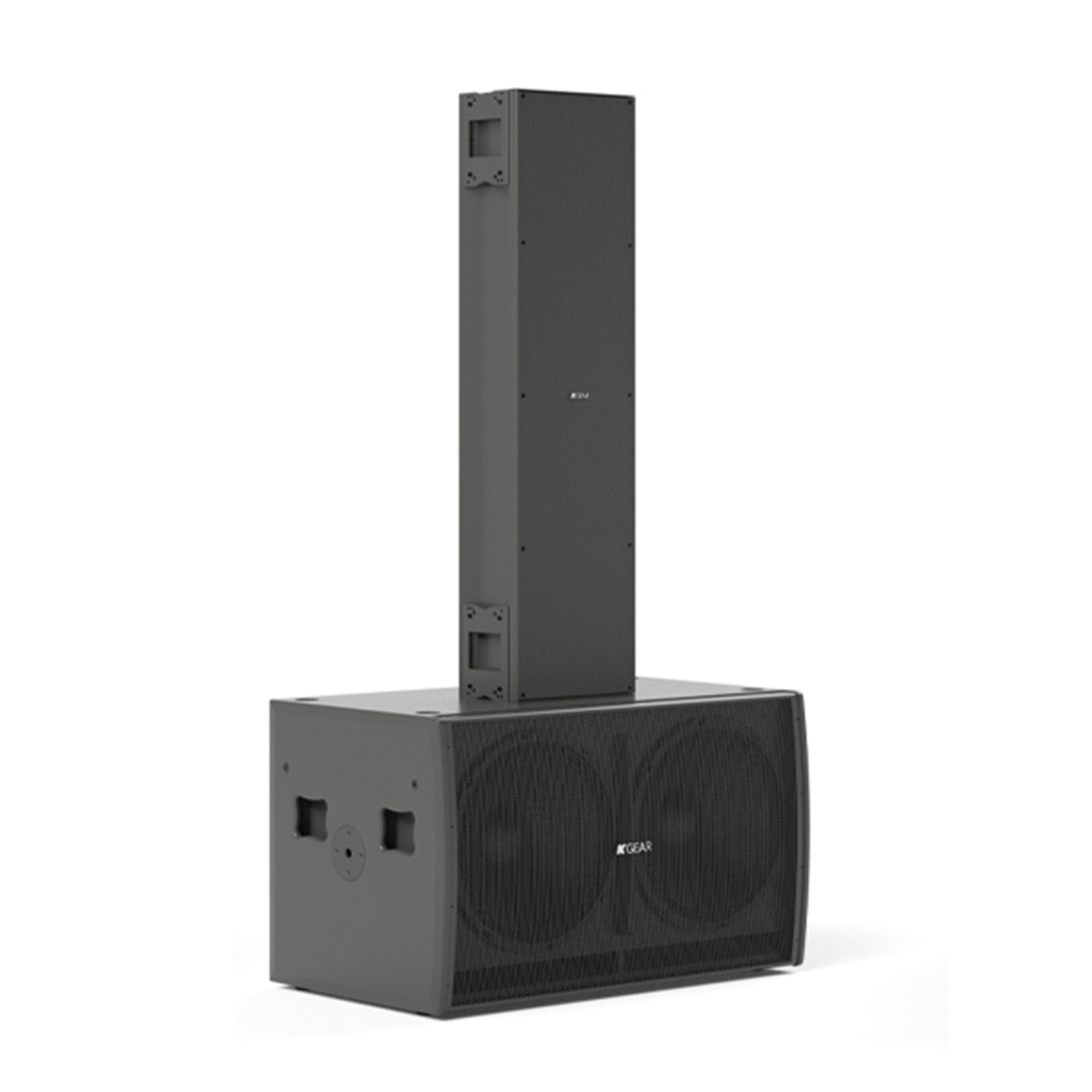

KGear GPX - Passive Slim Array and Subwoofer System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
GPX is a top of the line high performance passive system and comprises of a 2x18" subwoofer combined with GH412, the 4x12" coaxial slim array with K-array™ SAT® (Slim Array Technology), PAT® (Pure Array Technology) and a stainless steel cabinet.
This system can be driven by GPXA active system in a stereo configuration or by GA46 power amplifiers.
Thanks to its extreme performance and the compact format of the array, this system works in a stack configuration, with the array on top of the subwoofer. It is also possible to fly GH412 with our G-FLY flybar accessory, or place it on the ground with our G-BASE accessory.
Perfect for high SPL outdoor/indoor applications in large venues both for rental and permanent installations for touring, auditoriums, stadia, clubs, theme parks.
User Tip: optimize the cost and combine the system with the active model whether it is for stereo configurations or if need to extend the satellite cluster to form an array.
| Type | Passive Sub + Satellite system |
| Transducers | SUB: 2x 18Ó woofer TOP: 4x 12Ó coaxial woofer with 1Ó comp. driver |
| Frequency Response | 30 Hz - 20 kHz (-6dB) |
| Max SPL | 140 dB |
| Coverage | V. 30¡ | H. 90¡ |
| Power Handling | SUB: 1500W | TOP: 750W |
| Nominal Impedance | 8½ (sub) + 8 ½ (slim array) |
| Connectors | 2x SpeakON (paralleled) SUB 2+/2- | TOP: 1+/1- |
| Dimensions (WxHxD) | 1035 x 1905 (min) x 600 mm (40,75 x 75 x 23,6 in) |
| Weight | 116,6kg (257 lb) |
| Material | Subwoofer: Birch Plywood Satellite: Stainless steel |
| Color | Black |
GPX is a top of the line high performance passive system and comprises of a 2x18" subwoofer combined with GH412, the 4x12" coaxial slim array with K-array™ SAT® (Slim Array Technology), PAT® (Pure Array Technology) and a stainless steel cabinet.
This system can be driven by GPXA active system in a stereo configuration or by GA46 power amplifiers.
Thanks to its extreme performance and the compact format of the array, this system works in a stack configuration, with the array on top of the subwoofer. It is also possible to fly GH412 with our G-FLY flybar accessory, or place it on the ground with our G-BASE accessory.
Perfect for high SPL outdoor/indoor applications in large venues both for rental and permanent installations for touring, auditoriums, stadia, clubs, theme parks.
User Tip: optimize the cost and combine the system with the active model whether it is for stereo configurations or if need to extend the satellite cluster to form an array.
| Type | Passive Sub + Satellite system |
| Transducers | SUB: 2x 18Ó woofer TOP: 4x 12Ó coaxial woofer with 1Ó comp. driver |
| Frequency Response | 30 Hz - 20 kHz (-6dB) |
| Max SPL | 140 dB |
| Coverage | V. 30¡ | H. 90¡ |
| Power Handling | SUB: 1500W | TOP: 750W |
| Nominal Impedance | 8½ (sub) + 8 ½ (slim array) |
| Connectors | 2x SpeakON (paralleled) SUB 2+/2- | TOP: 1+/1- |
| Dimensions (WxHxD) | 1035 x 1905 (min) x 600 mm (40,75 x 75 x 23,6 in) |
| Weight | 116,6kg (257 lb) |
| Material | Subwoofer: Birch Plywood Satellite: Stainless steel |
| Color | Black |
