Description

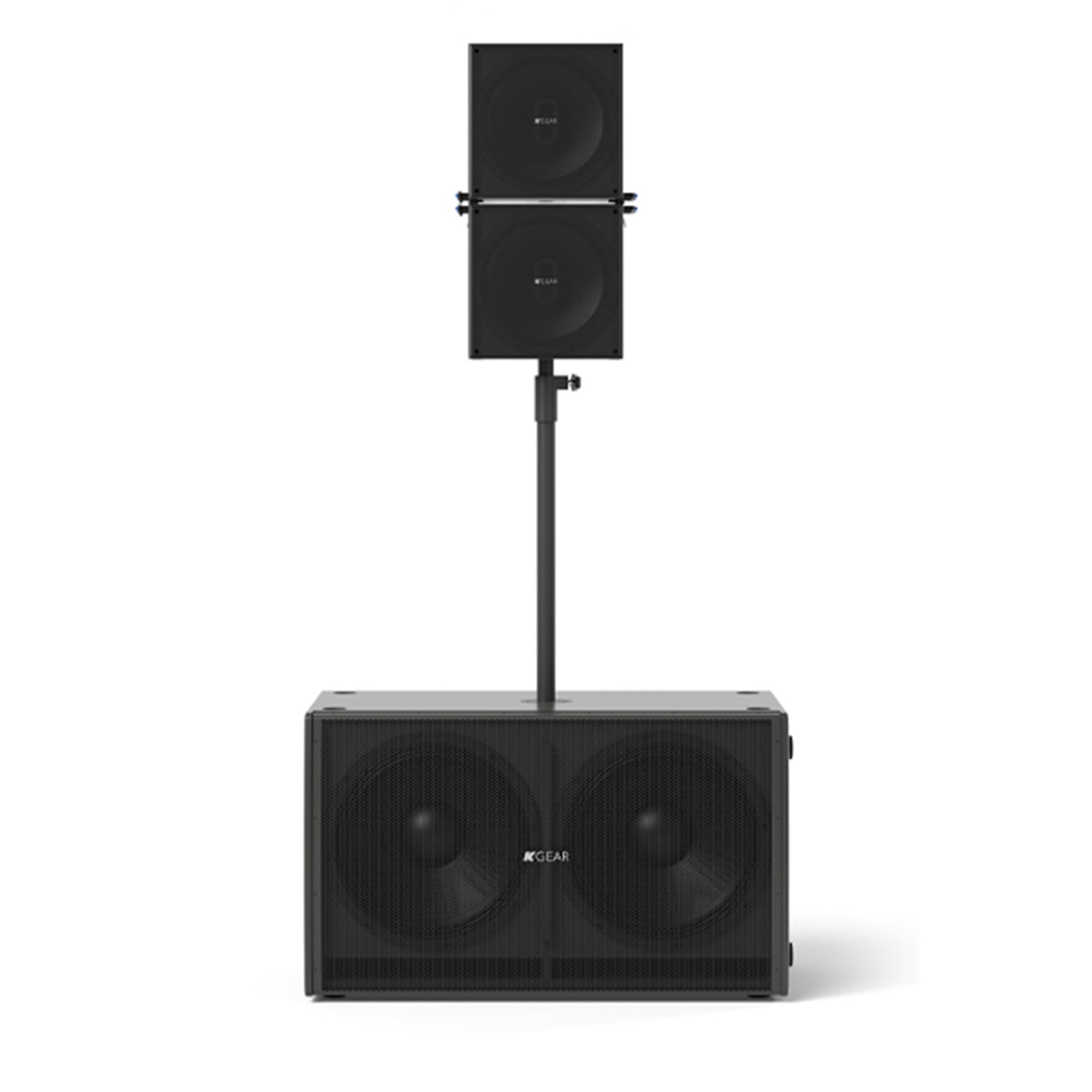

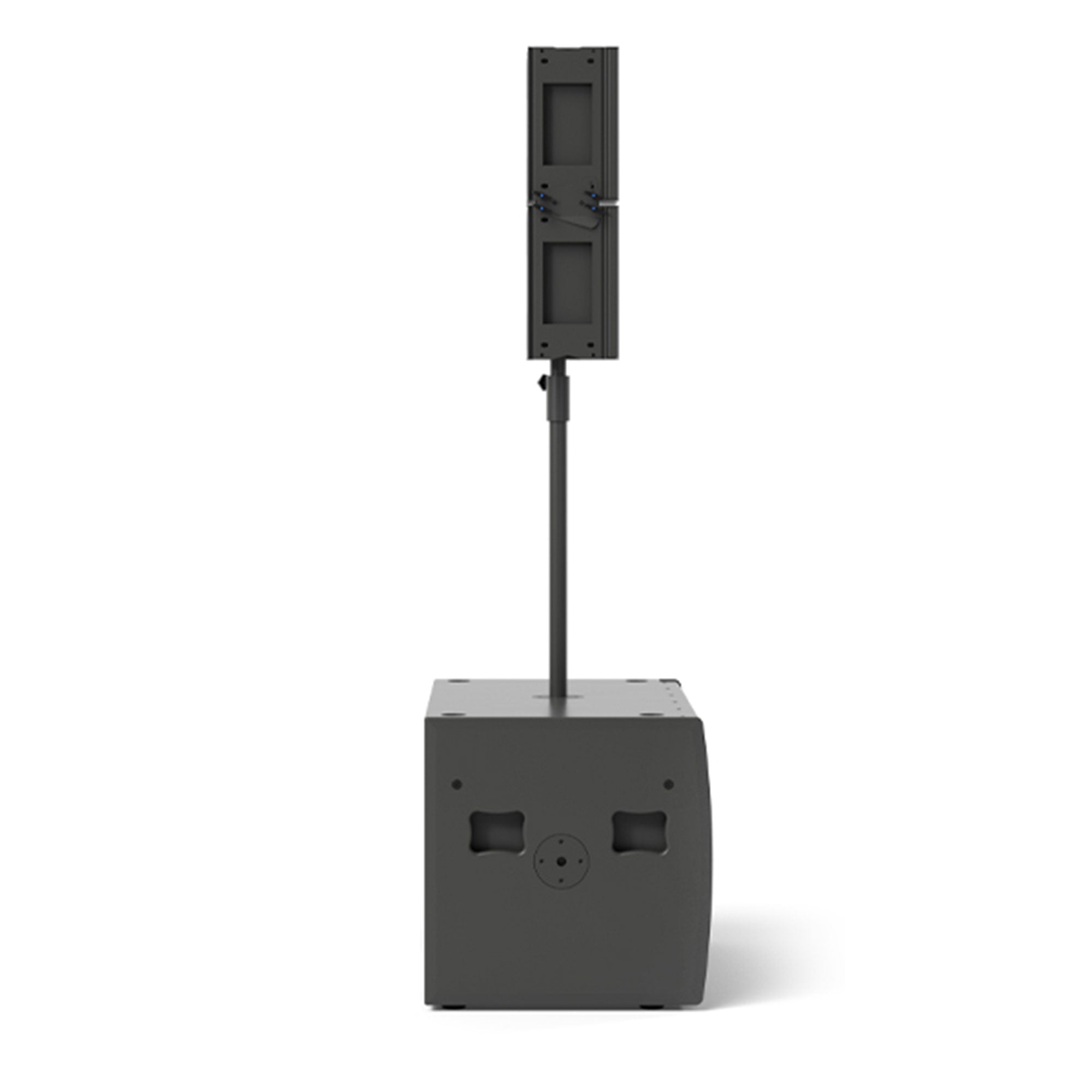

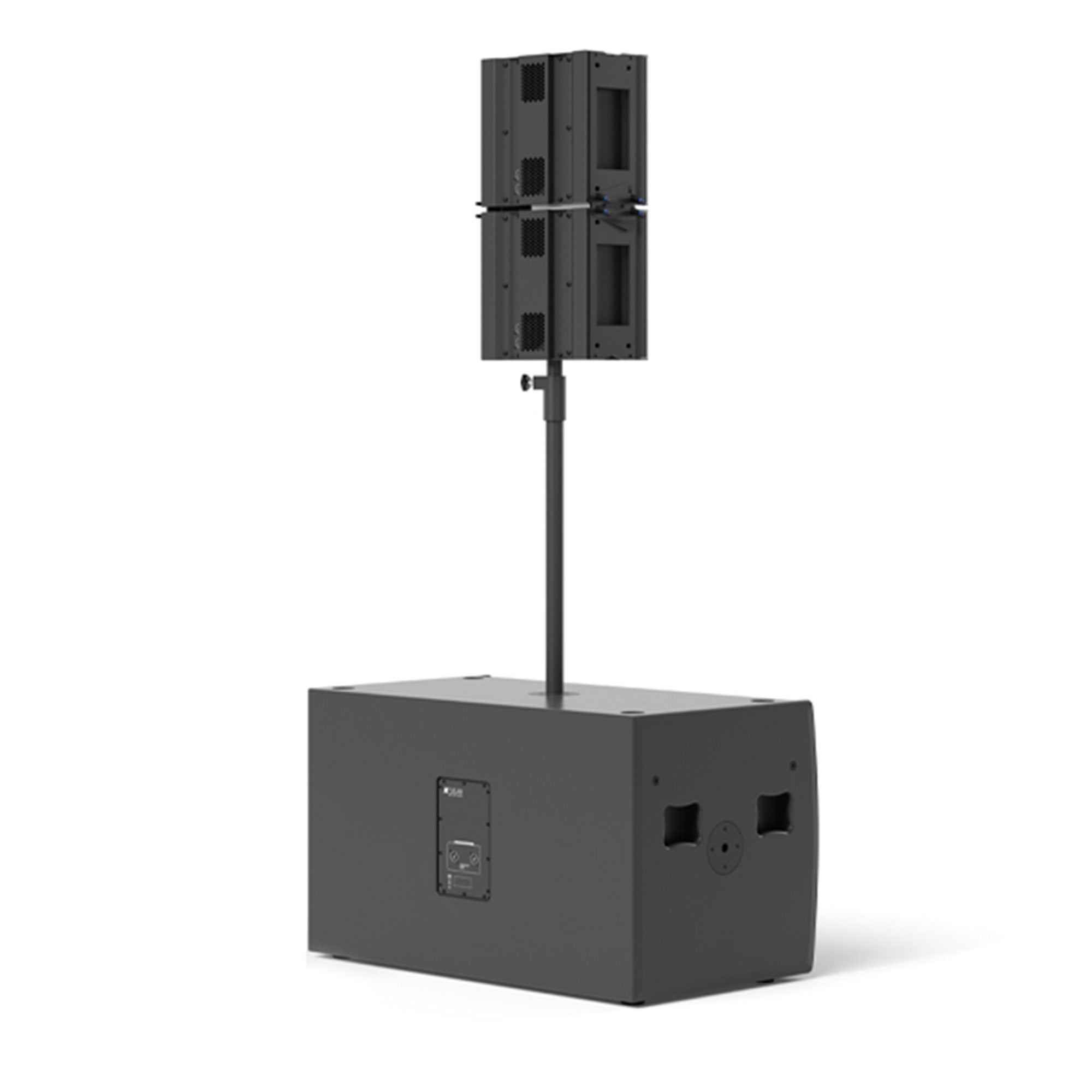

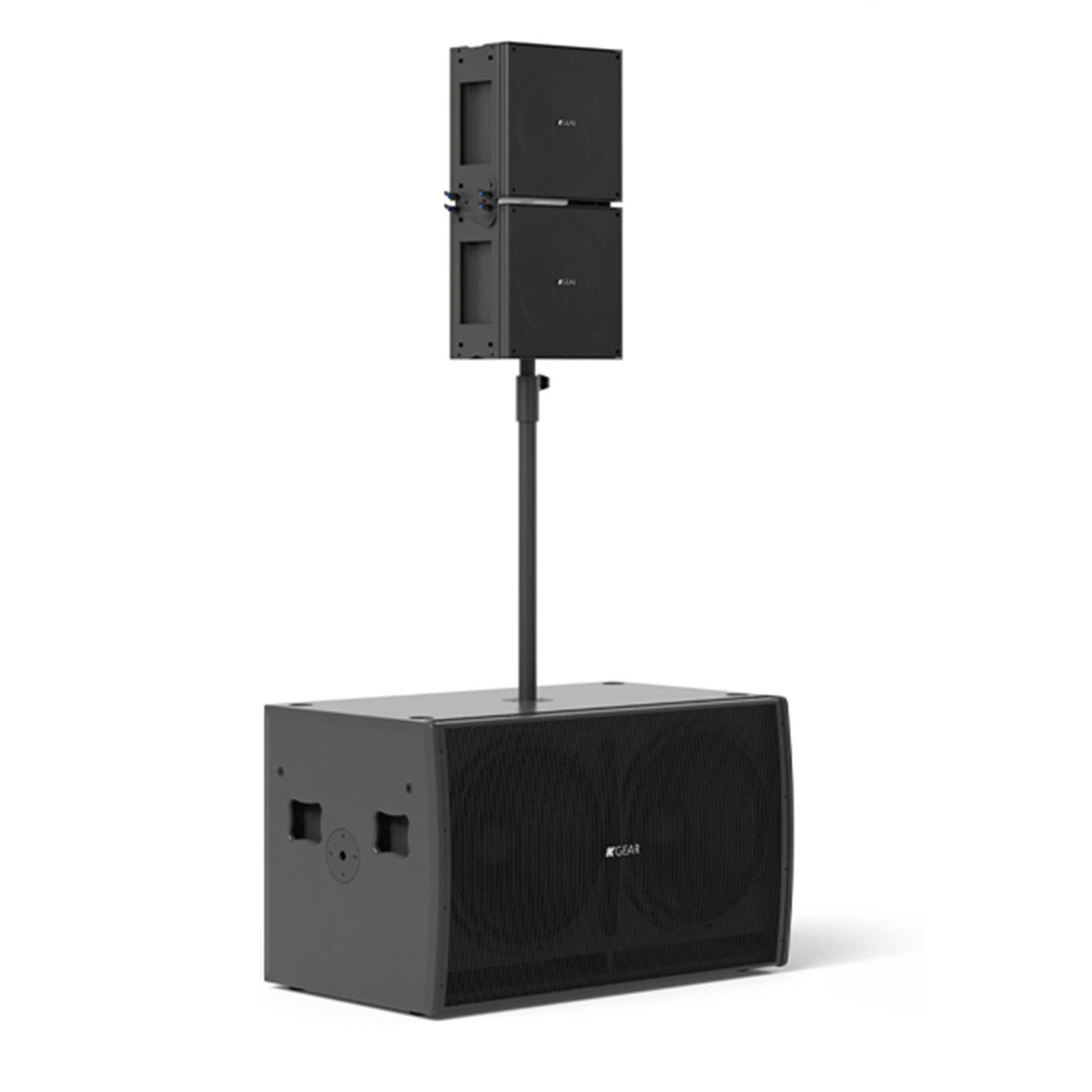

GPZ is a passive system that includes a 2x18" powered subwoofer combined with 2 GH12, our 12" passive coaxial satellites featuring K-array™ SAT® (Slim Array Technology) and a stainless steel cabinet.
This system can be driven by GPZA active system in a stereo configuration or by GA43 and GA46 power amplifiers.
Thanks to the impressive overall performance and the compact format of the satellites, this system is perfect for high performance outdoor/indoor applications both for rental and permanent installations for touring, large auditoriums, stadia, clubs and pubs, theme parks.
User Tip: optimize the cost and combine the system with the active model whether it is for stereo configurations or if need to extend the satellite cluster to form an array.
Type | Passive Sub + Satellite system |
Transducers | SUB: 2x 18Ó woofer TOP: 2x 12Ó coaxial woofer with 1Ó comp. driver |
Frequency Response | 30 Hz - 20 kHz (-6dB) |
Max SPL | 137 dB |
Coverage | V. 30¡ | H. 90¡ |
Power Handling | SUB: 1500W | TOP: 400W |
Nominal Impedance | 8½ (sub) + 16 ½ (2x 32 ½ paralleled satellites) |
Connectors | 2x SpeakON (paralleled) SUB 2+/2- | TOP: 1+/1- |
Dimensions (WxHxD) | 1035 x 2040 (min) x 600 mm (40,75 x 80,31 x 23,6 in) |
Weight | 90kg (198,42 lb) |
Material | Subwoofer: Birch Plywood Satellites: Stainless steel |
Color | Black |
