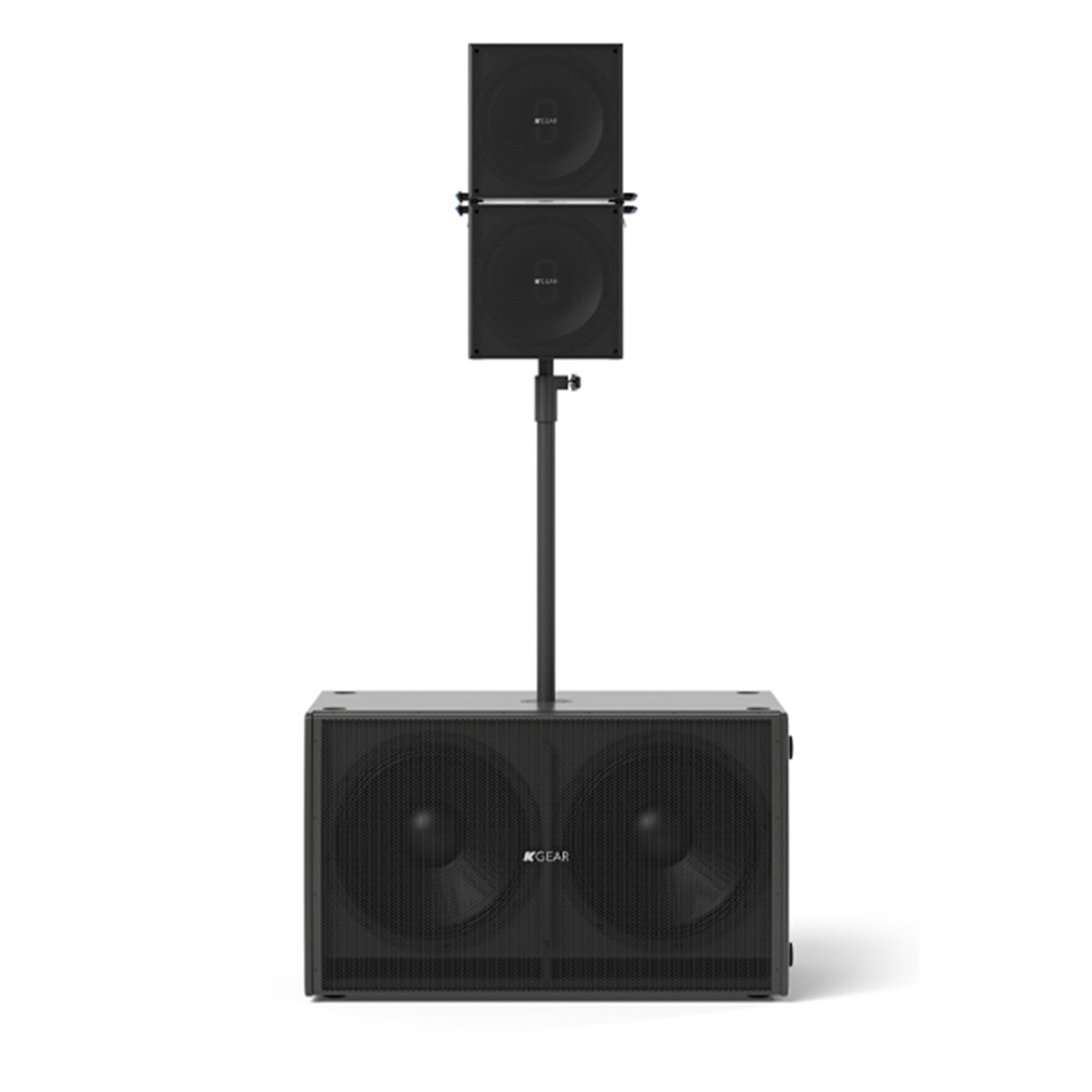

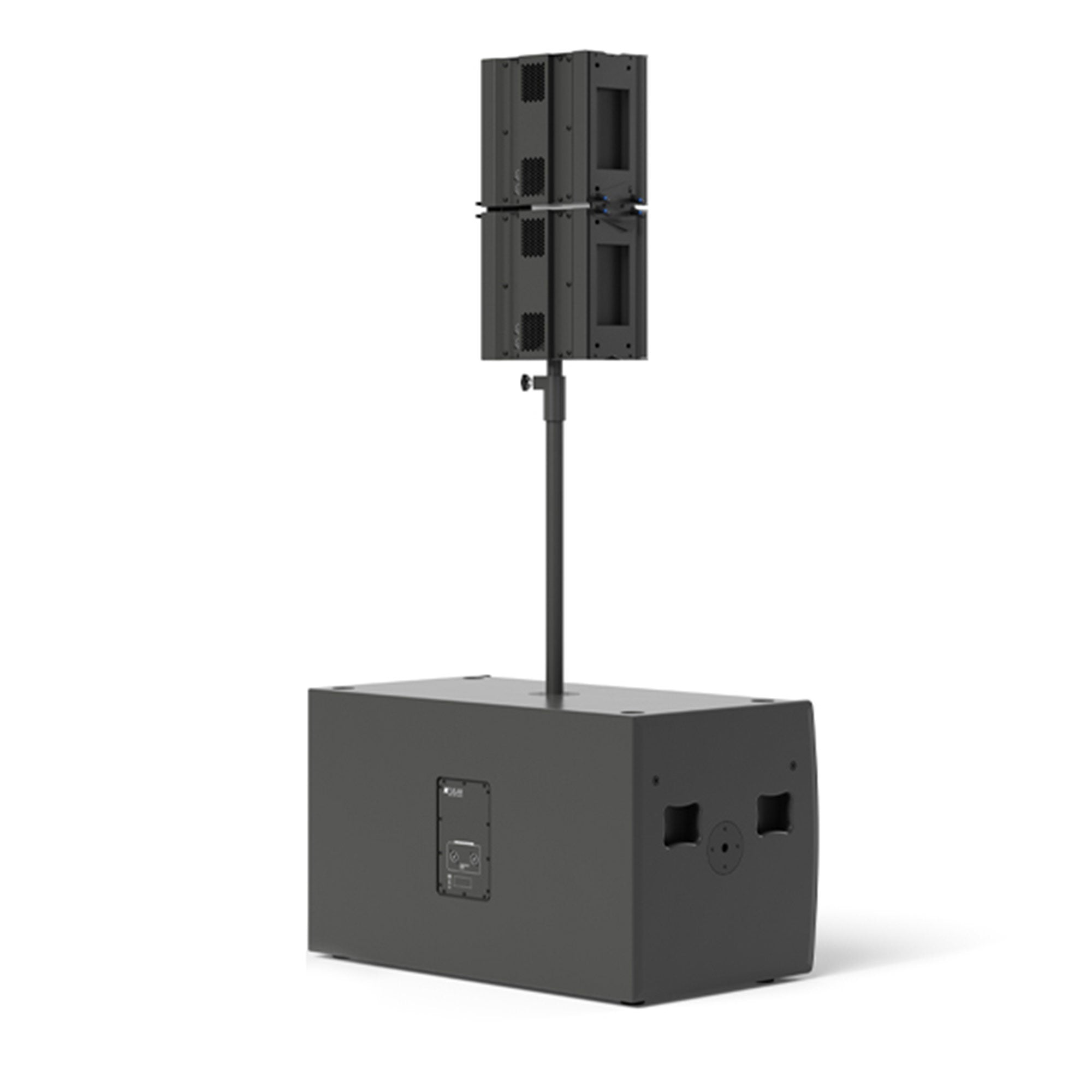

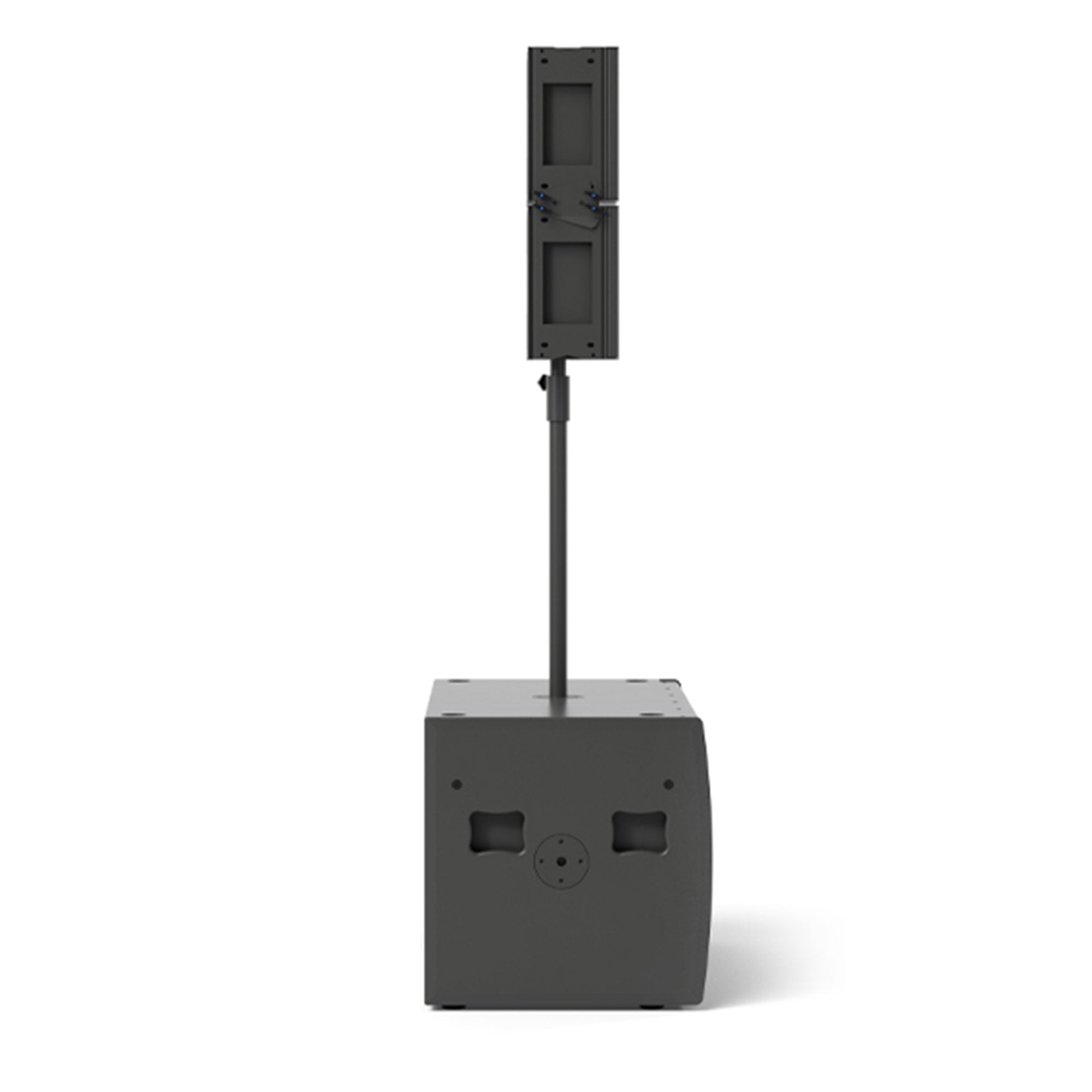

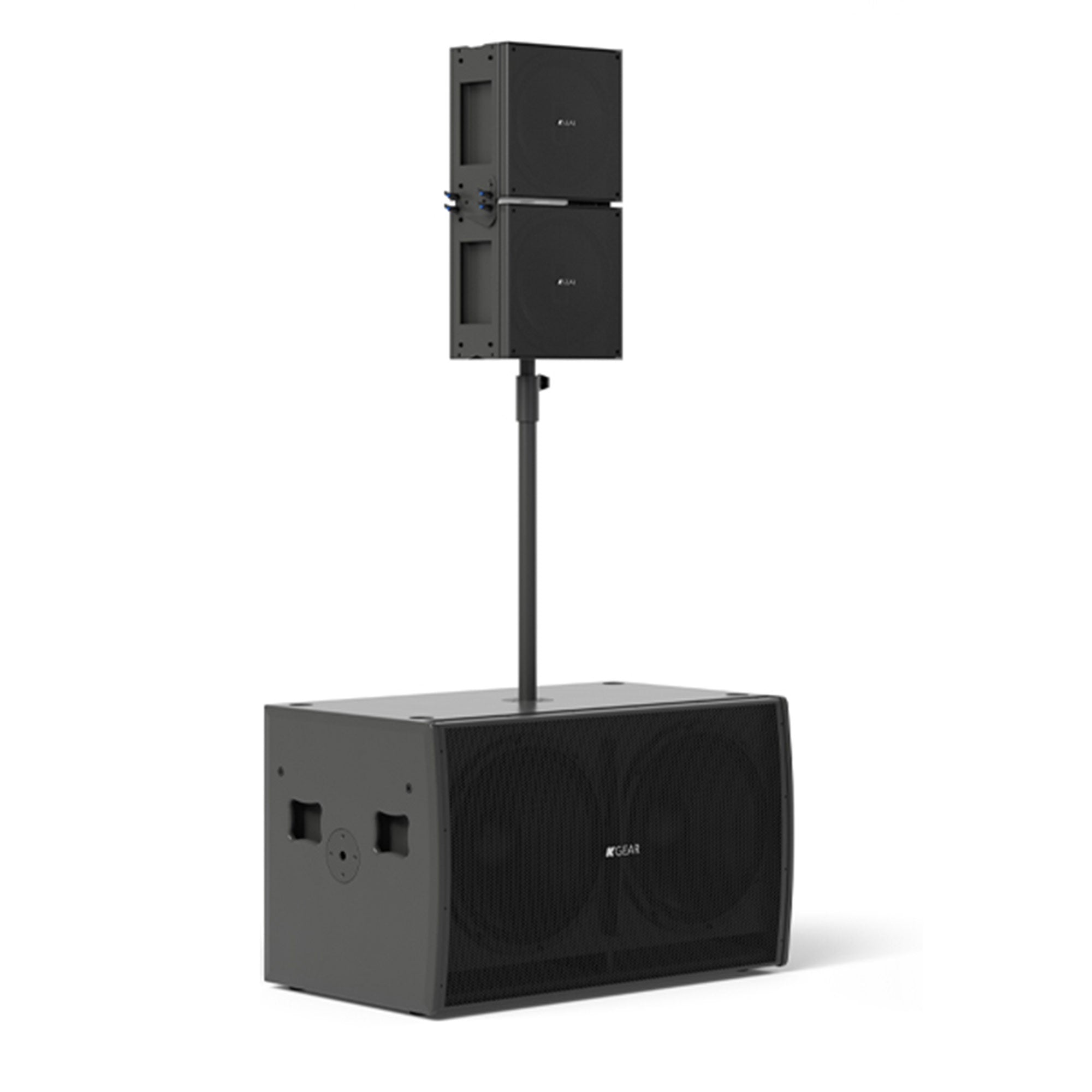

KGear GPZA - Active Slim Array and Subwoofer System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
GPZA is an active system that includes a 2x18" powered subwoofer combined with 2 GH12, our 12" passive coaxial satellites featuring K-array™ SAT® (Slim Array Technology) and a stainless steel cabinet.
With its built-in 4x1500W RMS amplifier, this system can drive a GPZ passive system in a stereo configuration. It features Powersoft™ DSP and power module, controlled via ethernet with Armonia™ control software.
Thanks to the impressive overall performance and the compact format of the satellites, this system is perfect for high performance outdoor/indoor applications both for rental and permanent installations for touring, large auditoriums, stadia, clubs and pubs, theme parks.
User Tip: optimize the cost and combine the system with the passive model whether it is for stereo configurations or if need to extend the satellite cluster to form an array.
| Type | Powered Sub + Satellite system |
| Transducers | SUB: 2x 18Ó woofer TOP: 2x 12Ó coaxial woofer with 1Ó comp. driver |
| Frequency Response | 30 Hz - 20 kHz (-6dB) |
| Max SPL | 137 dB |
| Coverage | V. 30¡ | H. 90¡ |
| Amp Module | 4-channel Class-D |
| Output Power | 4x 1500 W @ 4 ½ |
| Power Consumption | 500W Rated Load (1/8 Max Output Power) |
| Operating Voltage | 100-240V AC, 50-60 Hz |
| DSP features | Remote control and tuning Input and Output Delay Parametric input EQ Output parametric IIR filters |
| Connectors | Volume potentiometer RJ45 for remote control 2x Combo XLR Input 2x SpeakON Output 1x PowerCon True AC MAINS |
| Controls | Volume potentiometer Preset selector Ethernet remote control through Powersoftª Armon’aPlus Software |
| Dimensions (WxHxD) | 1035 x 2040 (min) x 600 mm (40,75 x 80,31 x 23,6 in) |
| Weight | 90kg (198,42 lb) |
| Material | Subwoofer: Birch Plywood Satellites: Stainless steel |
| Color | Black |
GPZA is an active system that includes a 2x18" powered subwoofer combined with 2 GH12, our 12" passive coaxial satellites featuring K-array™ SAT® (Slim Array Technology) and a stainless steel cabinet.
With its built-in 4x1500W RMS amplifier, this system can drive a GPZ passive system in a stereo configuration. It features Powersoft™ DSP and power module, controlled via ethernet with Armonia™ control software.
Thanks to the impressive overall performance and the compact format of the satellites, this system is perfect for high performance outdoor/indoor applications both for rental and permanent installations for touring, large auditoriums, stadia, clubs and pubs, theme parks.
User Tip: optimize the cost and combine the system with the passive model whether it is for stereo configurations or if need to extend the satellite cluster to form an array.
| Type | Powered Sub + Satellite system |
| Transducers | SUB: 2x 18Ó woofer TOP: 2x 12Ó coaxial woofer with 1Ó comp. driver |
| Frequency Response | 30 Hz - 20 kHz (-6dB) |
| Max SPL | 137 dB |
| Coverage | V. 30¡ | H. 90¡ |
| Amp Module | 4-channel Class-D |
| Output Power | 4x 1500 W @ 4 ½ |
| Power Consumption | 500W Rated Load (1/8 Max Output Power) |
| Operating Voltage | 100-240V AC, 50-60 Hz |
| DSP features | Remote control and tuning Input and Output Delay Parametric input EQ Output parametric IIR filters |
| Connectors | Volume potentiometer RJ45 for remote control 2x Combo XLR Input 2x SpeakON Output 1x PowerCon True AC MAINS |
| Controls | Volume potentiometer Preset selector Ethernet remote control through Powersoftª Armon’aPlus Software |
| Dimensions (WxHxD) | 1035 x 2040 (min) x 600 mm (40,75 x 80,31 x 23,6 in) |
| Weight | 90kg (198,42 lb) |
| Material | Subwoofer: Birch Plywood Satellites: Stainless steel |
| Color | Black |
