KLANG Immersive Package - KLANG:vokal and KLANG:kontroller Bundle


  • Dale #:

    KLNG-XKGIPMS
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

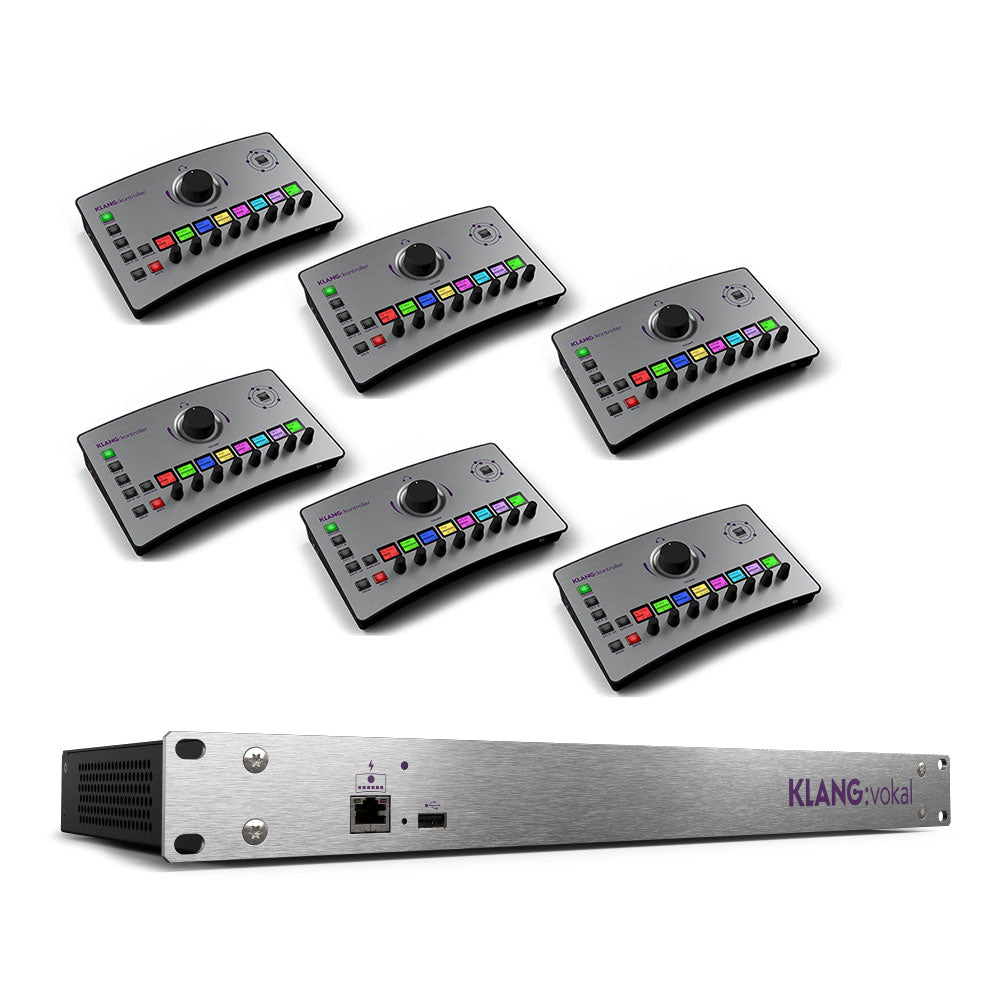

Bring immersive mixing to the next level. This inclusive package comprises the KLANG:vokal immersive IEM processor with six KLANG:kontroller personal mixers. Being compatible with all KLANG Immersive In-Ear Mixing Processors, KLANG:kontroller is the first hardware controller with full control ri... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Bring immersive mixing to the next level. This inclusive package comprises the KLANG:vokal immersive IEM processor with six KLANG:kontroller personal mixers.

Being compatible with all KLANG Immersive In-Ear Mixing Processors, KLANG:kontroller is the first hardware controller with full control right at your fingertips. It delivers fast tactile user control of channels, groups and immersive mixing via an intuitive interface. The times of outdated name tags and dialling through all channels are over with 8 displays providing clear channel names and color coding.

Relative DCA group mixing and full single channel control via eight push rotary encoders provides important, fast access. The studio grade headphone amplifier delivers crystal clear audio for in-ear monitors and high impedance headphones, with both 3.5mm (1/8”) as well as 6.3mm (1/4”) stereo TRS connectors. KLANG:kontroller gives musicians full control of all relevant functions, while the engineer can still overview and control all mixes via the KLANG:app or DiGiCo SD or Q series consoles.

To perfect the immersive experience, binaural True Ambient microphones are built into the unit. These can be blended into the immersive in-ear mix, along with a local stereo aux input for, for example, a click track or playback from a phone. The mix can be sent back to the Dante network or, alternatively, the ambient microphones or aux input can be shared with other musicians.

Features:

  • Compatible with all KLANG Immersive In-Ear Mixing Processors
  • Fast tactile user control of Groups, Channel and Immersive mixing
  • Displays for Channel labels with colour coding, status, metering
  • Binaural TrueAmbient Microphones
  • High-Power headphone output with fast level control
  • Stand alone or mic stand mounted
  • Dante audio connectivity
  • Robust physical KLANG control surface
  • Dedicated balanced audio outputs for monitor outputs or butt kickers
  • Local aux input that can be easily be sent back to the immersive processor for distribution and sharing

KLANG:vokal is designed specifically to match the feature set of KLANG:kontroller but can also work as a stand alone immersive processor. Based on KLANG’s powerful, new generation, ultra-low latency FPGA core, KLANG:vokal offers 12 mixes of 24 mono or stereo inputs at 48kHz and 96kHz, including the revolutionary Root-Intensity EQs. The musicians can pick up to 24 mono or stereo channels out of 64 Dante and MADI inputs. Mixes are sent via Dante to KLANG:kontroller or can also be sent back via MADI or Dante to a mixing console.

Maximum Flexibility and user friendliness make KLANG:vokal and KLANG:kontroller the perfect match for any House of Worship or Theater application.

Features:

  • 12 Immersive In-Ear Mixes
  • 24 Mono or Stereo Inputs, chosen per Mix from up to 64 Mono Inputs
  • High End Personal Monitoring System
  • Natural immersive sound through binaural technology
  • KLANG Root Intensity EQs for all 64 Mono Inputs and all 12 Mixes

More +

Product Specs

Controls 8x Push Rotary Encoders for Mixing and Configuration
8x Push Buttons for Mute, Solo, Channel and Group Banks, Configuration
Network Interface 2x2ch Dante Ultimo
Connections 1x Neutrik EtherCON
2x XLR line level Outputs
1x Stereo Aux line level input
Powering PoE powered or DC power supply (included)
Headphone / IEM Output 3.5mm (1/8") Stereo Headphone output (front)
6.3mm (1/4") Stereo Headphone output (rear, if connected it mutes front 3.5mm (1/8") output)
Updates USB port for Software Updates and Preset Exchange
Audio Formats 96 kHz | 48 kHz
Weight 1.1kg
Size body 27.9 / 17.0 / 5.7 cm

Network Interface 64x64ch Dante HC (48kHz and 96kHz)
Connections MADI BNC Input and Output (64x64ch @48kHz or 32x32ch @96kHz)
Word Clock Input and Output
2x USB ports (front and rear) for Updates and Showfile exchange
2x Ethercon combined Dante and Control Network Ports
2x Ethercon combined Dante and Control Network Ports with Multicast Filter
1x PoE enabled Dante and Control Port (front) for direct KLANG:kontroller operation
1x IEC Power Supply 110–240VAC
Processing Latency 1/4ms
Digital Audio 96 kHz | 48 kHz
Rack Dimensions 1 RU
Weight 3.6kg
Size body 44.0 / 4.5 / 27.5 cm
Front panel (width) 48.5cm | 19 inches
