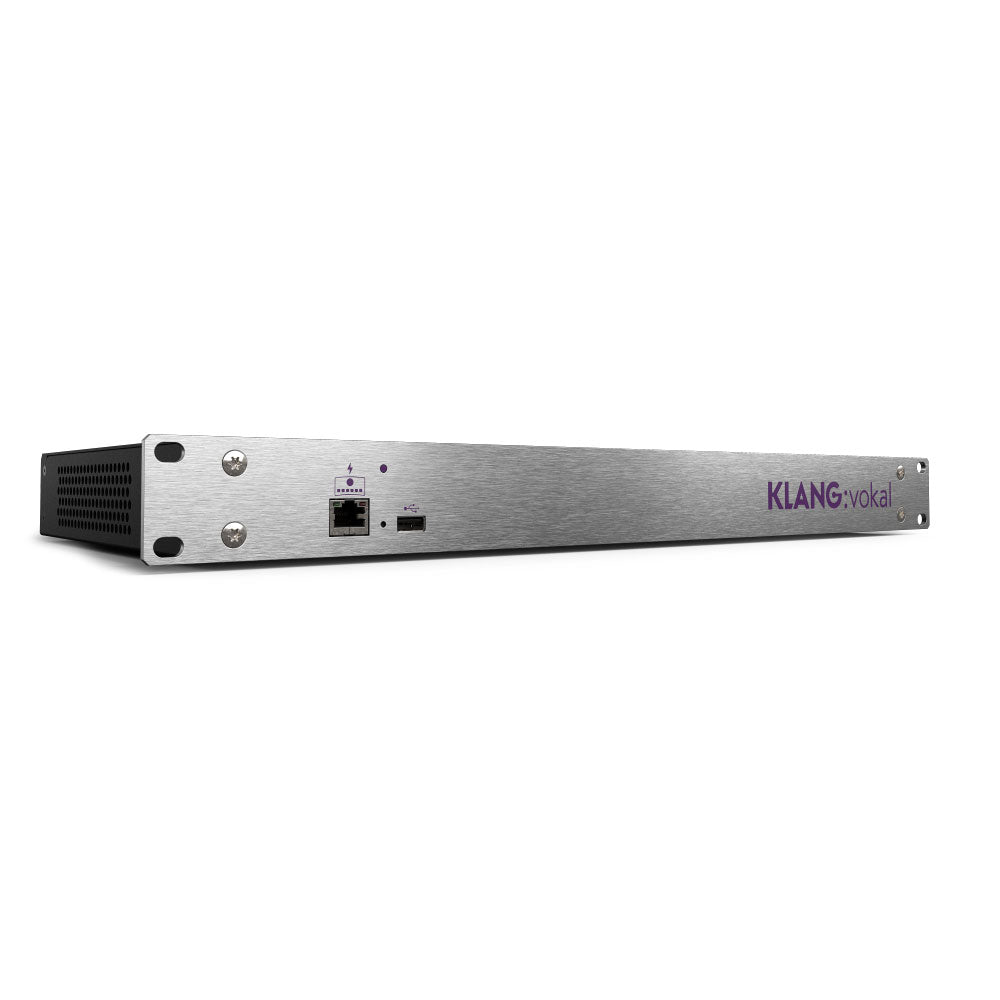

KLANG Vokal - Immersive In-Ear Mixing Processor
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
KLANG:vokal is designed specifically to match the feature set of KLANG:kontroller but can also work as a stand alone immersive processor. Based on KLANG’s powerful, new generation, ultra-low latency FPGA core, KLANG:vokal offers 12 mixes of 24 mono or stereo inputs at 48kHz and 96kHz, including the revolutionary Root-Intensity EQs. The musicians can pick up to 24 mono or stereo channels out of 64 Dante and MADI inputs. Mixes are sent via Dante to KLANG:kontroller or can also be sent back via MADI or Dante to a mixing console.
Maximum Flexibility and user friendliness make KLANG:vokal and KLANG:kontroller the perfect match for any House of Worship or Theater application.
Features:
- 12 Immersive In-Ear Mixes
- 24 Mono or Stereo Inputs, chosen per Mix from up to 64 Mono Inputs
- High End Personal Monitoring System
- Natural immersive sound through binaural technology
- KLANG Root Intensity EQs for all 64 Mono Inputs and all 12 Mixes
| Network Interface | 64x64ch Dante HC (48kHz and 96kHz) |

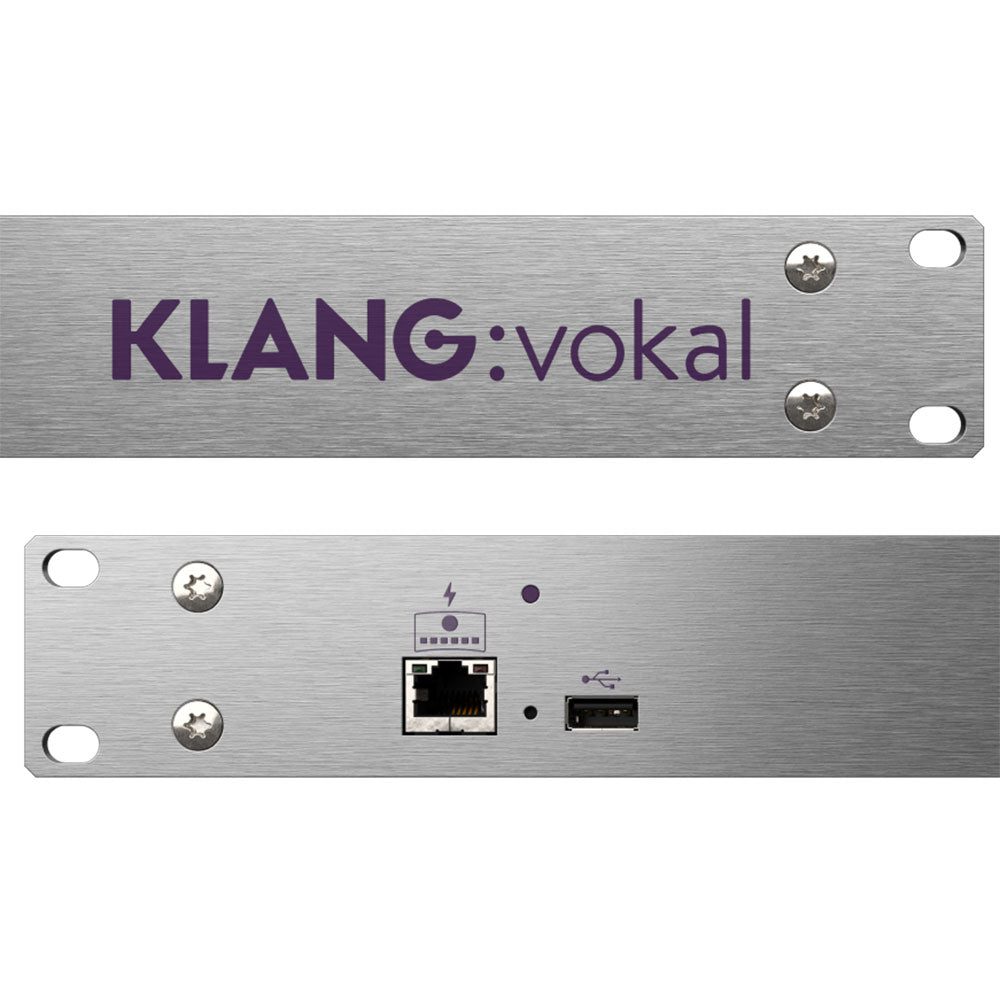

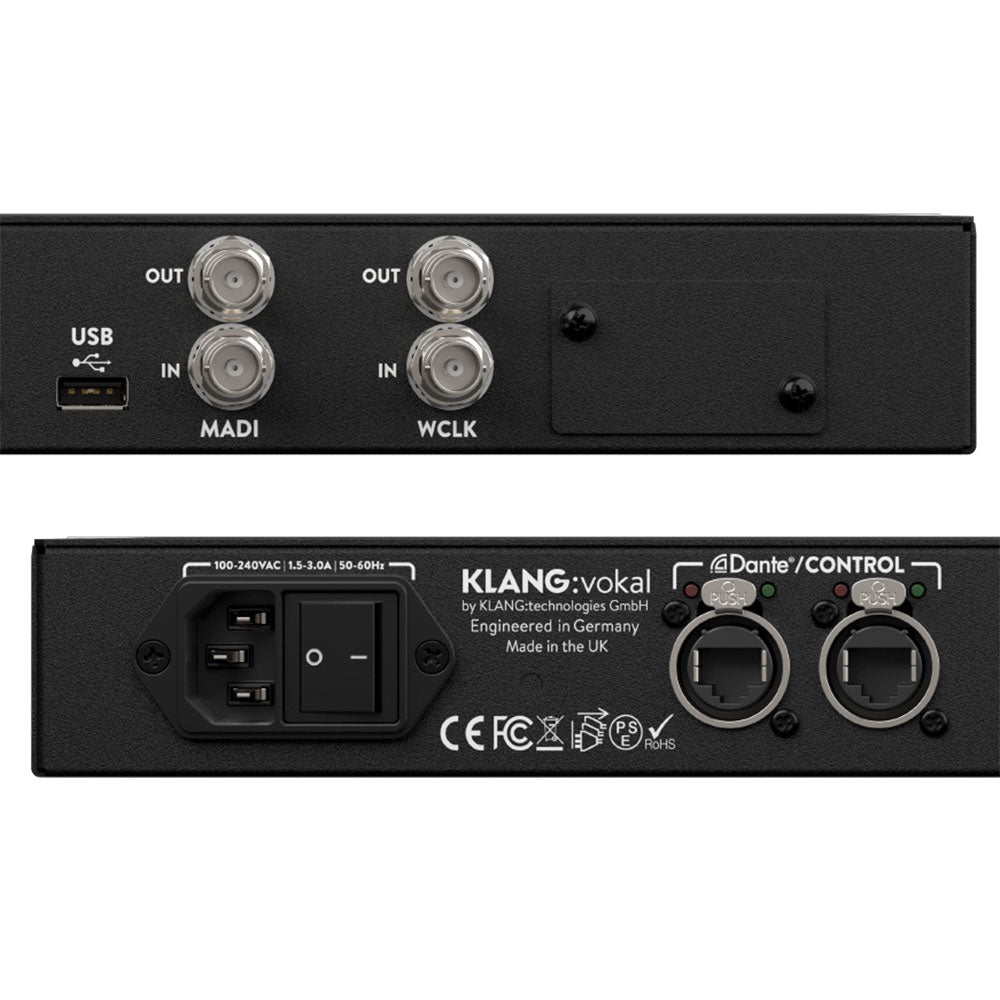

| Connections | MADI BNC Input and Output (64x64ch @48kHz or 32x32ch @96kHz) Word Clock Input and Output 2x USB ports (front and rear) for Updates and Showfile exchange 2x Ethercon combined Dante and Control Network Ports 2x Ethercon combined Dante and Control Network Ports with Multicast Filter 1x PoE enabled Dante and Control Port (front) for direct KLANG:kontroller operation 1x IEC Power Supply 110Ð240VAC |
| Processing Latency | 1/4ms |
| Digital Audio | 96 kHz | 48 kHz |
| Rack Dimensions | 1 RU |
| Weight | 3.6kg |
| Size body | 44.0 / 4.5 / 27.5 cm |
| Front panel (width) | 48.5cm | 19 inches |
KLANG:vokal is designed specifically to match the feature set of KLANG:kontroller but can also work as a stand alone immersive processor. Based on KLANG’s powerful, new generation, ultra-low latency FPGA core, KLANG:vokal offers 12 mixes of 24 mono or stereo inputs at 48kHz and 96kHz, including the revolutionary Root-Intensity EQs. The musicians can pick up to 24 mono or stereo channels out of 64 Dante and MADI inputs. Mixes are sent via Dante to KLANG:kontroller or can also be sent back via MADI or Dante to a mixing console.
Maximum Flexibility and user friendliness make KLANG:vokal and KLANG:kontroller the perfect match for any House of Worship or Theater application.
Features:
- 12 Immersive In-Ear Mixes
- 24 Mono or Stereo Inputs, chosen per Mix from up to 64 Mono Inputs
- High End Personal Monitoring System
- Natural immersive sound through binaural technology
- KLANG Root Intensity EQs for all 64 Mono Inputs and all 12 Mixes
| Network Interface | 64x64ch Dante HC (48kHz and 96kHz) |
| Connections | MADI BNC Input and Output (64x64ch @48kHz or 32x32ch @96kHz) Word Clock Input and Output 2x USB ports (front and rear) for Updates and Showfile exchange 2x Ethercon combined Dante and Control Network Ports 2x Ethercon combined Dante and Control Network Ports with Multicast Filter 1x PoE enabled Dante and Control Port (front) for direct KLANG:kontroller operation 1x IEC Power Supply 110Ð240VAC |
| Processing Latency | 1/4ms |
| Digital Audio | 96 kHz | 48 kHz |
| Rack Dimensions | 1 RU |
| Weight | 3.6kg |
| Size body | 44.0 / 4.5 / 27.5 cm |
| Front panel (width) | 48.5cm | 19 inches |
