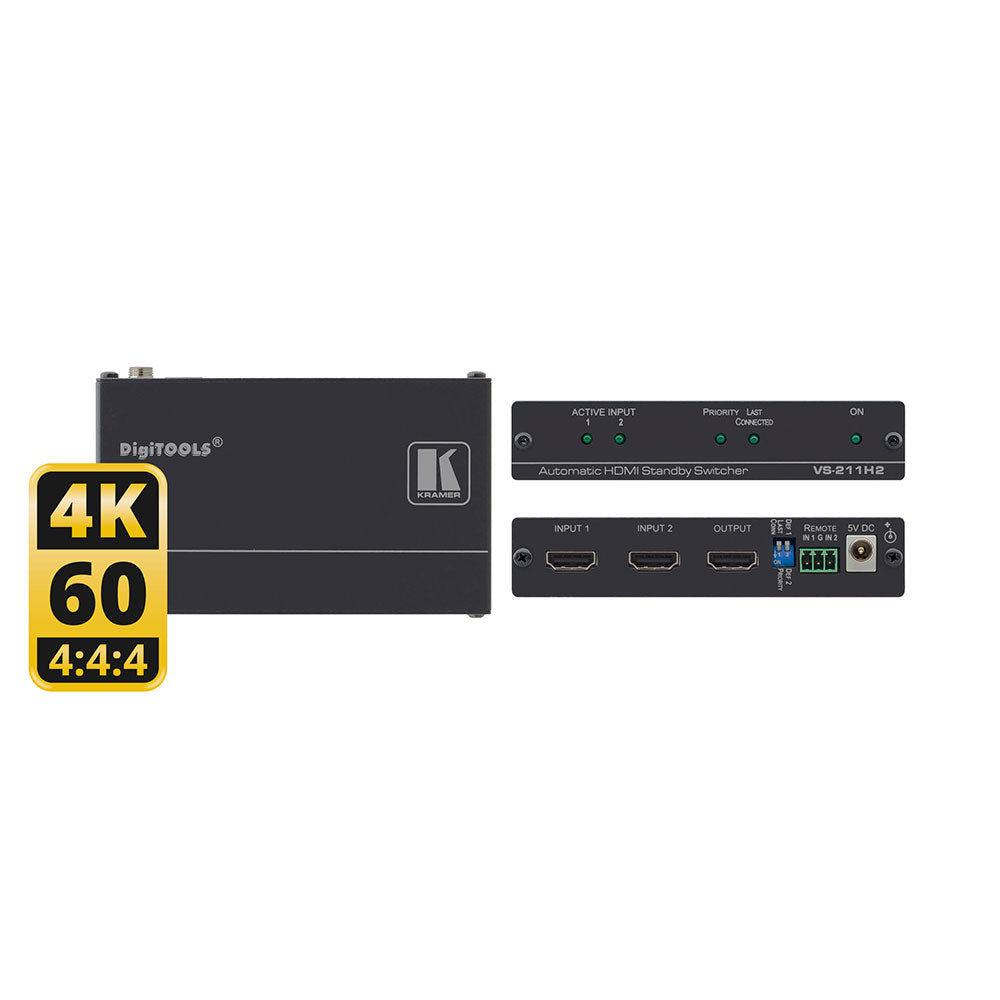

Kramer VS-211H2 2x1 4K HDR HDCP 2.2 HDMI Auto Switcher
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
VS−211H2 is a high−performance automatic switcher for 4K HDR, HDCP 2.2, HDMI 2.0 video signals. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.
Features:
- Max. Data Rate — 17.82Gbps (5.94Gbps per data channel).
- Max. Resolution — 4K@60Hz (4:4:4).
- Kramer Equalization and re–Klocking Technology.
- HDR Support.
- HDTV Compatible.
- HDMI 2.0 and HDCP 2.2 Compliant.
- 3D Pass–Though.
| INPUTS | 2 HDMI connectors |
| OUTPUTS | 1 HDMI connector |
| MAX. DATA RATE | 17.82GBPS (5.94Gbps per graphic channel) |
| MAX. RESOLUTION | 4K@60Hz (4:4:4) |
| STANDARDS COMPLIANCE | HDR10, HDCP 2.2 (does not support conversion to HDCP 1.4), HDMI 2.0 |
| CONTROLS | Status/priority DIPÐswitches, contact closure remote control |
| REGULATORY CERTIFICATION | EMC EN 55032 IEC 60950Ð1(ed.2) IEC 60950Ð1(ed.2)am1 IEC 60950Ð1(ed.2)am2 |
| OPERATING TEMPERATURE | 0¡ to +40¡C (32¡ to 104¡F) |
| STORAGE TEMPERATURE | Ð40¡ to +70¡C (Ð40¡ to 158¡F) |
| HUMIDITY | 10% to 90%, RHL nonÐcondensing |
| POWER CONSUMPTION | 5V DC, 560mA |
| INCLUDED ACCESSORIES | Power supply 5.2V DC/4A desktop |
| PRODUCT DIMENSION | 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H |
| PRODUCT WEIGHT | 0.2kg (0.4lbs) approx. |
| SHIPPING DIMENSION | 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H |
| SHIPPING WEIGHT | 0.6kg (1.4lbs) approx. |
VS−211H2 is a high−performance automatic switcher for 4K HDR, HDCP 2.2, HDMI 2.0 video signals. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.
Features:
- Max. Data Rate — 17.82Gbps (5.94Gbps per data channel).
- Max. Resolution — 4K@60Hz (4:4:4).
- Kramer Equalization and re–Klocking Technology.
- HDR Support.
- HDTV Compatible.
- HDMI 2.0 and HDCP 2.2 Compliant.
- 3D Pass–Though.
| INPUTS | 2 HDMI connectors |
| OUTPUTS | 1 HDMI connector |
| MAX. DATA RATE | 17.82GBPS (5.94Gbps per graphic channel) |
| MAX. RESOLUTION | 4K@60Hz (4:4:4) |
| STANDARDS COMPLIANCE | HDR10, HDCP 2.2 (does not support conversion to HDCP 1.4), HDMI 2.0 |
| CONTROLS | Status/priority DIPÐswitches, contact closure remote control |
| REGULATORY CERTIFICATION | EMC EN 55032 IEC 60950Ð1(ed.2) IEC 60950Ð1(ed.2)am1 IEC 60950Ð1(ed.2)am2 |
| OPERATING TEMPERATURE | 0¡ to +40¡C (32¡ to 104¡F) |
| STORAGE TEMPERATURE | Ð40¡ to +70¡C (Ð40¡ to 158¡F) |
| HUMIDITY | 10% to 90%, RHL nonÐcondensing |
| POWER CONSUMPTION | 5V DC, 560mA |
| INCLUDED ACCESSORIES | Power supply 5.2V DC/4A desktop |
| PRODUCT DIMENSION | 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H |
| PRODUCT WEIGHT | 0.2kg (0.4lbs) approx. |
| SHIPPING DIMENSION | 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H |
| SHIPPING WEIGHT | 0.6kg (1.4lbs) approx. |
