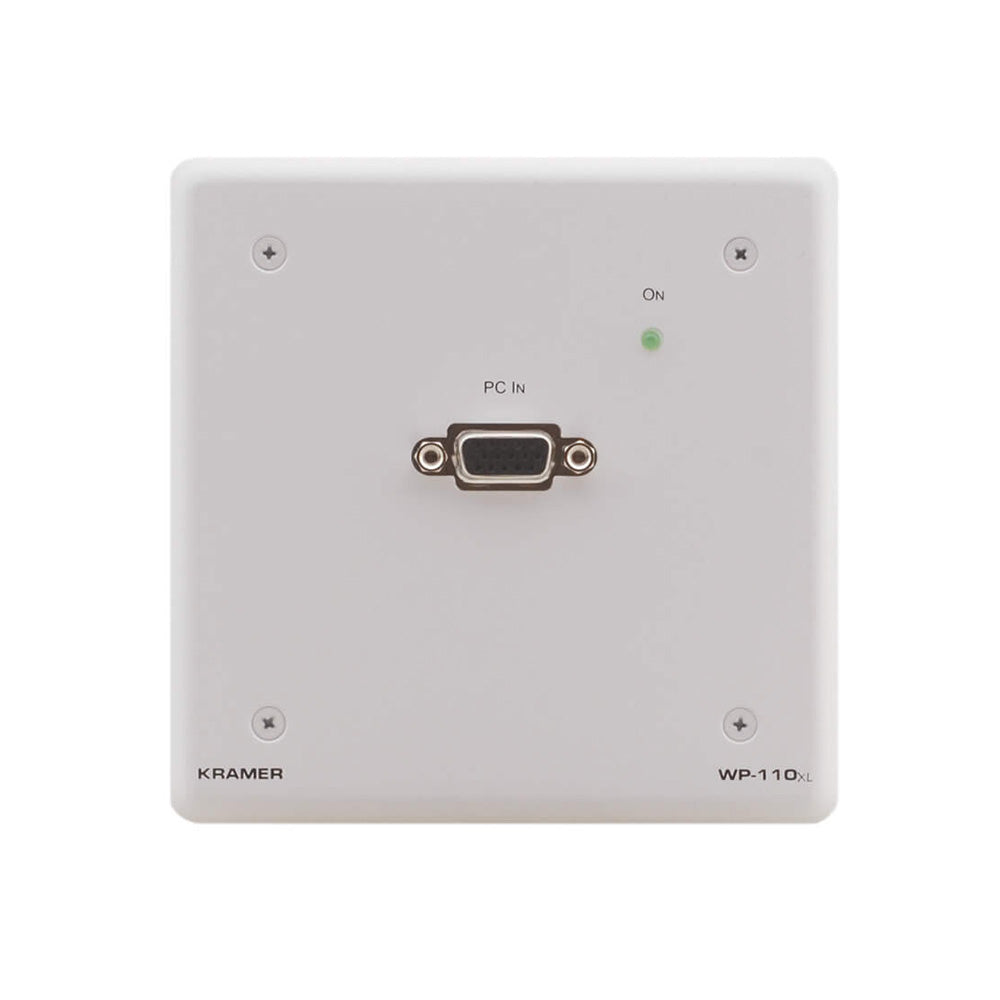

Kramer WP-110xl HD15 Over Twisted Pair Extender Transmitter in Wall Plate
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The WP-110xl is an extended range wall plate transmitter for computer graphics video signals with resolutions up to and exceeding UXGA. It converts a computer graphics video signal into a twisted pair signal that it transmits to a compatible Kramer receiver.
Features:
- HDTV Compatible.
- Max. Resolution — WUXGA & 1080p.
- Extended Transmission Range — Up to 250m (820ft).
- EDID Capture — Copies and stores the EDID from a display device.
- Power Connect™ System — A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
- Increased Interference Protection — Against noise, spikes and interference in adverse environments.
- Cable — UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
- Dimensions — 11.4cm x 3.5 cm x 11.4cm (4.49" x 1.4" x 4.49") US; 15.2cm x 3.5cm x 8.0/8.6cm (5.98" x 1.4" x 3.15/3.39") EU W, D, H.
| INPUT | 1 VGA/UXGA on a 15Ðpin HD connector |
| OUTPUT | 1 twisted pair on an RJÐ45 connector |
| VIDEO RESOLUTION | Up to WUXGA, 1080p |
| RANGE | Up to 250m (820ft) |
| COUPLING | AC |
| POWER CONSUMPTION | 12V DC, 70mA |
| OPERATING TEMPERATURE | 0¡ to +40¡C (32¡ to 104¡F) |
| STORAGE TEMPERATURE | Ð40¡ to +70¡C (Ð40¡ to 158¡F) |
| HUMIDITY | 10% to 90%, RHL nonÐcondensing |
| WALL PLATE SIZE | 2 gang EU/US |
| INCLUDED ACCESSORIES | Power supply |
| OPTIONS | 19Ó rack adapters for EU and US wall plates Kramer onÐwall boxes |
| PRODUCT DIMENSION | 15.10cm x 3.10cm x 8.60cm (5.94" x 1.22" x 3.39" ) W, D, H |
| PRODUCT WEIGHT | 0.2kg (0.4lbs) approx |
| SHIPPING DIMENSION | 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H |
| SHIPPING WEIGHT | 0.7kg (1.5lbs) approx |
The WP-110xl is an extended range wall plate transmitter for computer graphics video signals with resolutions up to and exceeding UXGA. It converts a computer graphics video signal into a twisted pair signal that it transmits to a compatible Kramer receiver.
Features:
- HDTV Compatible.
- Max. Resolution — WUXGA & 1080p.
- Extended Transmission Range — Up to 250m (820ft).
- EDID Capture — Copies and stores the EDID from a display device.
- Power Connect™ System — A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
- Increased Interference Protection — Against noise, spikes and interference in adverse environments.
- Cable — UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
- Dimensions — 11.4cm x 3.5 cm x 11.4cm (4.49" x 1.4" x 4.49") US; 15.2cm x 3.5cm x 8.0/8.6cm (5.98" x 1.4" x 3.15/3.39") EU W, D, H.
| INPUT | 1 VGA/UXGA on a 15Ðpin HD connector |
| OUTPUT | 1 twisted pair on an RJÐ45 connector |
| VIDEO RESOLUTION | Up to WUXGA, 1080p |
| RANGE | Up to 250m (820ft) |
| COUPLING | AC |
| POWER CONSUMPTION | 12V DC, 70mA |
| OPERATING TEMPERATURE | 0¡ to +40¡C (32¡ to 104¡F) |
| STORAGE TEMPERATURE | Ð40¡ to +70¡C (Ð40¡ to 158¡F) |
| HUMIDITY | 10% to 90%, RHL nonÐcondensing |
| WALL PLATE SIZE | 2 gang EU/US |
| INCLUDED ACCESSORIES | Power supply |
| OPTIONS | 19Ó rack adapters for EU and US wall plates Kramer onÐwall boxes |
| PRODUCT DIMENSION | 15.10cm x 3.10cm x 8.60cm (5.94" x 1.22" x 3.39" ) W, D, H |
| PRODUCT WEIGHT | 0.2kg (0.4lbs) approx |
| SHIPPING DIMENSION | 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H |
| SHIPPING WEIGHT | 0.7kg (1.5lbs) approx |
