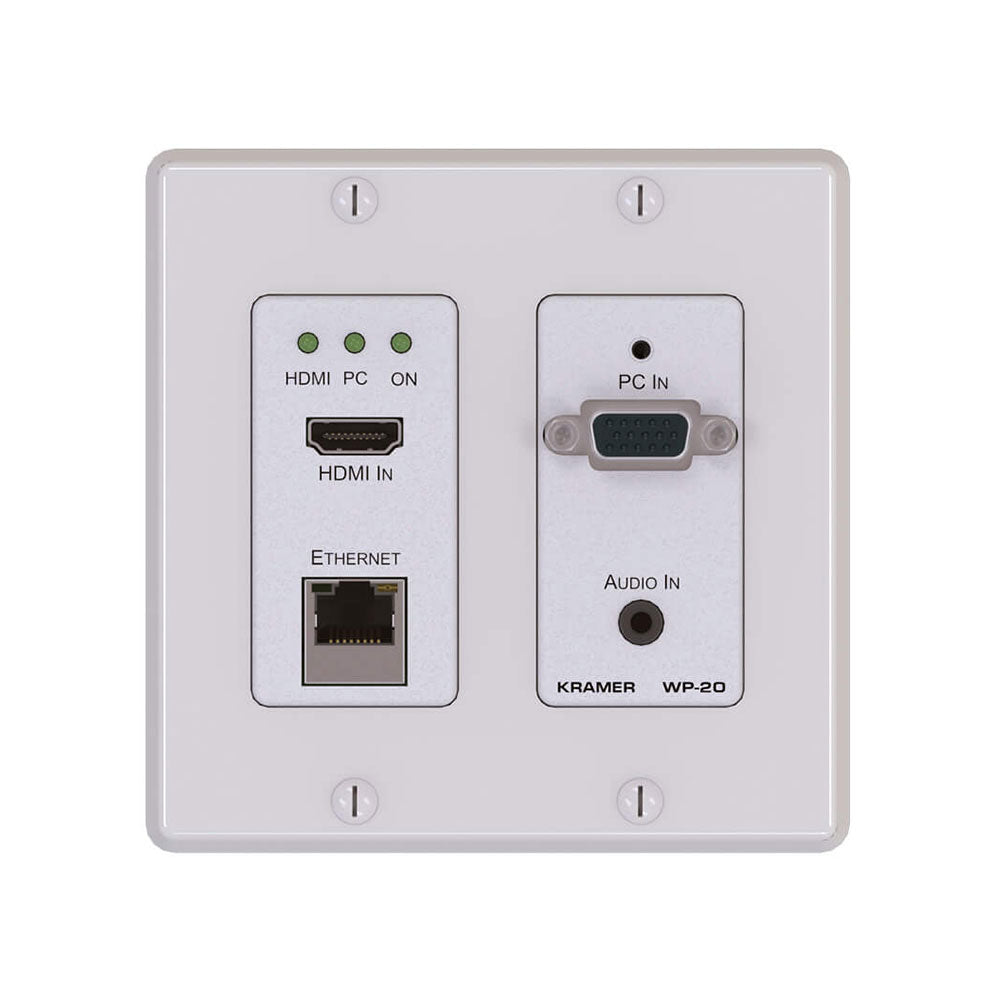

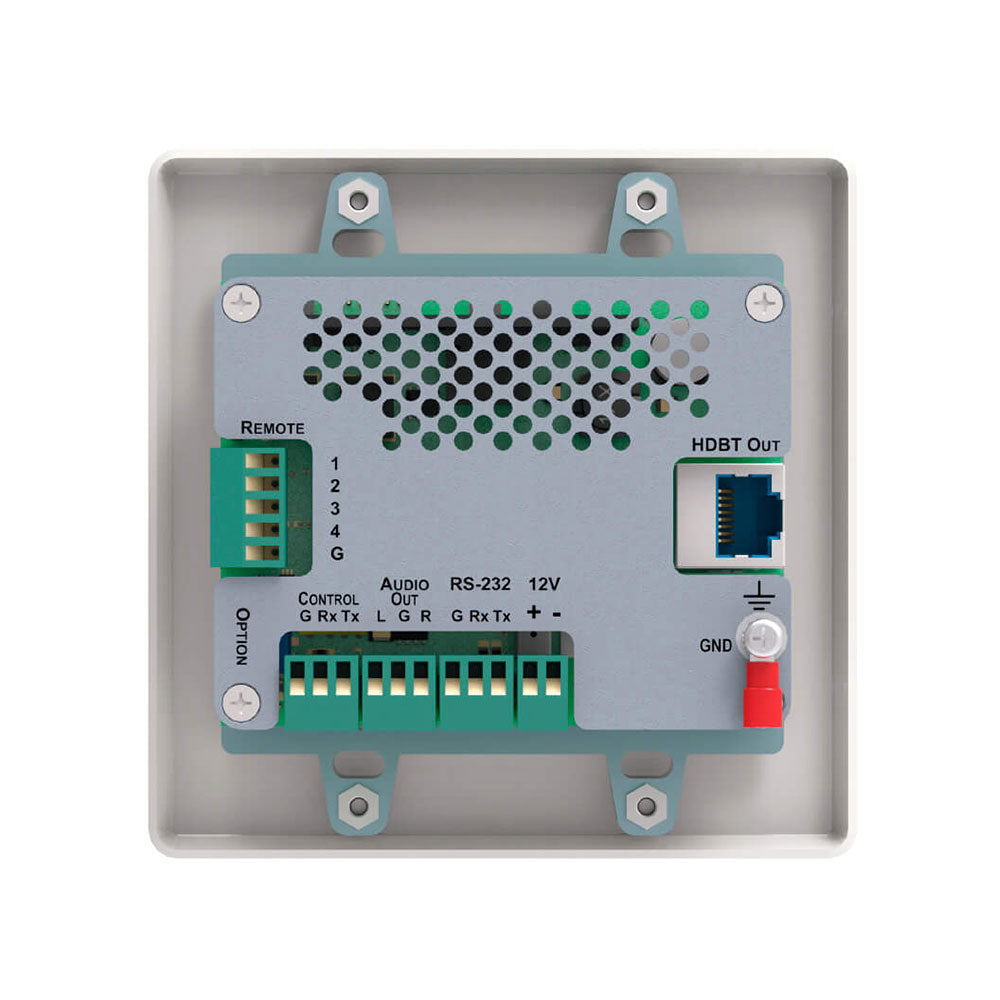

Kramer WP-20 HDMI and VGA Switcher and PoE Acceptor with Automation (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Kramer WP-20 HDMI and VGA Switcher and PoE Acceptor with Automation (White)
Sale price$900.00
Regular price$1,125.00
Description
WP?20 is a 4K UHD, HDBaseT active wall plate with step?in auto switcher for HDMI, VGA and analog audio signals that supports resolutions up to 4K@60Hz (4:2:0). The device has EDID management, easy control options and audio embedding. The unit is a fully?featured step?in auto?switcher with the convenience and simplicity of a wall plate. Designed for deployment in any size room, the WP?20 is easy to install with browser?based configuration and single PoE cable for Ethernet connectivity and powering.
Features:
- Simple and Powerful Maestro Room Automation — Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.
- Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
- Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.
- HDTV Compatible.
- HDCP Compliant — Works with sources that support HDCP repeater mode.
- HDMI Support — Deep Color, x.v.Color™ and 3D.
- Automatic Live Input Detection — Based on video clock presence.
- Automatic Input Selection — Based on manual selection or last connected input.
- Automatic Analog Audio Detection and Embedding.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Kramer Equalization and re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- Range — Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables.
- Lockable EDID.
- Flexible Control Options — Via Kramer Protocol 3000, Ethernet and embedded Web pages over RS–232.
- Digital Audio Format Support.
- Mounting Option — For wall mounting, use Kramer's OWB–2G.
Applications:
- Display systems requiring simple input selection
- Remote monitoring of computer activity in schools and businesses
- Rental/staging applications
- Multimedia and presentation source selection
| INPUTS | 1 HDMI on an HDMI connector, 1 VGA on a 15Ðpin HD (F) connector, 1 unbalanced stereo audio on a 3.5mm mini jack |
| OUTPUTS | 1 HDBaseT on an RJÐ45 connector, 1 unbalanced stereo audio on a 3.5mm mini jack |
| PORTS | 1 RSÐ232 3Ðpin terminal block, 1 Ethernet on an RJÐ45 connector |
| CONTROLS | Remote switches for input switching and volume control, reset switch |
| STANDARDS | HDMI with Deep Color, x.v.Colorª and 3D HDCPÑworks with sources that support HDCP repeater mode HDBT certified |
| MAXIMUM ANALOG AUDIO LEVEL | 3.1Vpp |
| THD | 0.013% |
| SNR | Ð70dB |
| ROOM AUTOMATION | Kramer Maestro V1.0 |
| SUPPORTED WEB BROWSERS | Windows 7 and higher: Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35 MAC: Chrome version 35, Firefox version 27, Safari version 7 |
| MAXIMUM TRANSMISSION DISTANCE | 180m (590ft) up to 1080p @60Hz @24bpp in extended mode, 130m (430ft) up to 1080p @60Hz @36bpp in normal mode |
| POWER CONSUMPTION | 12V DC, 850mA |
| OPERATING TEMPERATURE | 0¡ to +40¡C (32¡ to 104¡F) |
| STORAGE TEMPERATURE | Ð40¡ to +70¡C (Ð40¡ to 158¡F) |
| HUMIDITY | 10% to 90%, RHL nonÐcondensing |
| COOLING | Convection |
| ENCLOSURE TYPE | Aluminum |
| ENVIRONMENTAL REGULATORY COMPLIANCE | RoHs and WEEE |
| VIBRATION | ISTA 1A in carton (International Safe Transit Association) |
| COMPLIANCE STANDARDS | CE |
| INCLUDED ACCESSORIES | Power adapter |
| OPTIONS | Faceplates: WPÐ20ÐBLNK(W) P/N 68Ð80371099, WPÐ20ÐBLNK(B) P/N 68Ð80371199 |
| WARRANTY | 7 years parts and labor |
| PRODUCT DIMENSION | US: 11.59cm x 5.10cm x 11.43cm (4.56" x 2.01" x 4.50" ) W, D, H UK: 15.10cm x 4.00cm x 8.60cm (5.94" x 1.57" x 3.39" ) W, D, H EU: 15.10cm x 4.00cm x 8.00cm (5.94" x 1.57" x 3.15" ) W, D, H |
| PRODUCT WEIGHT | US: 0.2kg (0.5lbs) approx. UK: 0.3kg (0.6lbs) approx. EU: 0.3kg (0.6lbs) approx. |
| SHIPPING DIMENSION | US: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H UK: 25.60cm x 11.80cm x 11.40cm (10.08" x 4.65" x 4.49" ) W, D, H EU: 25.60cm x 11.80cm x 11.40cm (10.08" x 4.65" x 4.49" ) W, D, H |
| SHIPPING WEIGHT | US: 0.5kg (1.1lbs) approx. UK: 0.9kg (1.9lbs) approx. EU: 0.9kg (1.9lbs) approx. |
