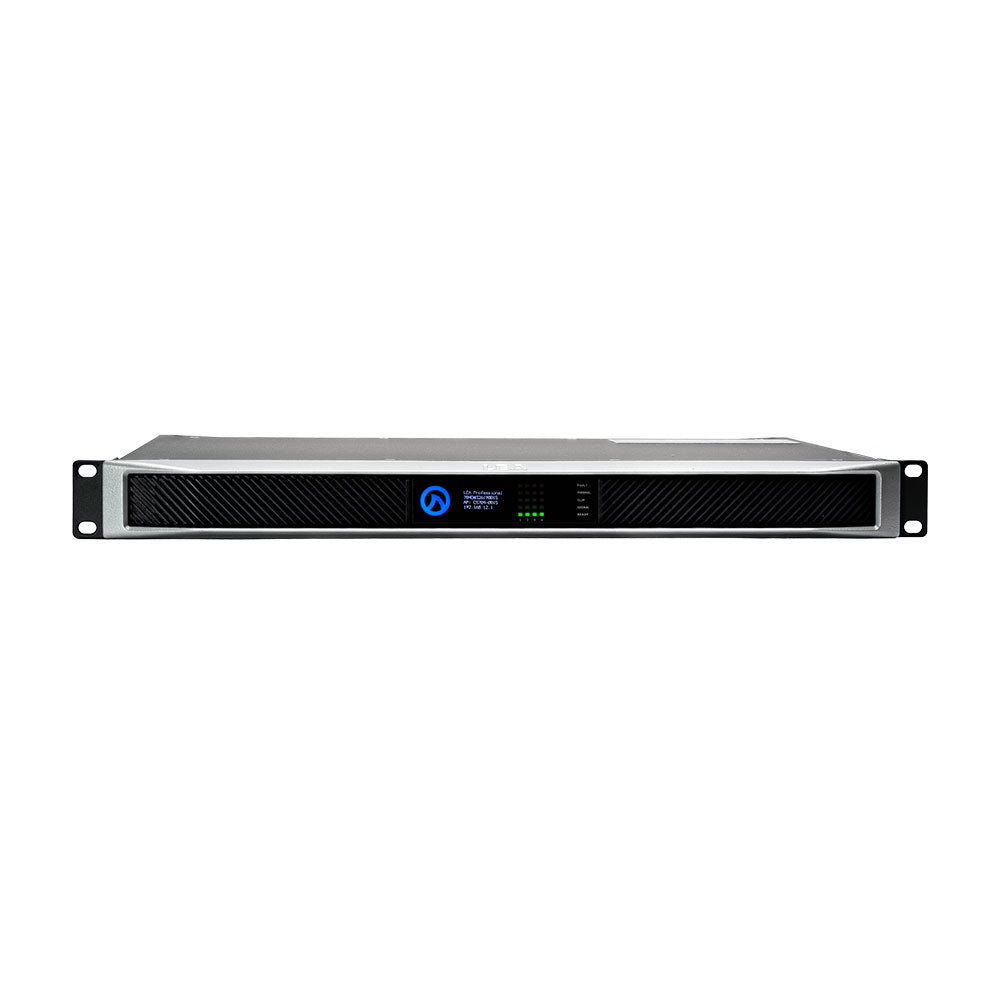

LEA Professional Connect 702D - 2-Channel IoT-Enabled Install Power Amplifier with Dante


  • Dale #:

    LEA-CONNECT702D
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Introducing the world's first Internet of Things- (IoT) enabled, professional-grade amplifier family - the DANTE CONNECT SERIES. Perfectly suited for small to medium scale installations, these two, four, and eight channel amps feature direct HiZ (70V or 100V) or LoZ selectable by channel. With th... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Introducing the world's first Internet of Things- (IoT) enabled, professional-grade amplifier family - the DANTE CONNECT SERIES. Perfectly suited for small to medium scale installations, these two, four, and eight channel amps feature direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built in WiFi access point, connect to the venue's WiFi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.

Then there's the Cloud...DANTE CONNECT SERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.

The DANTE CONNECT SERIES also features analog inputs and Dante inputs and external I/O control for remote on/off and fault monitoring.

Features:

  • Web Browser-based UI - works on any device with no software to download
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
  • 3 Ways to Connect 1.) Built in WiFi Access Point 2.) Connects to existing WiFi network 3.) Local Area Network Ethernet connection
  • 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real time load monitoring
  • Universal Switch Mode Power Supply with PFC. Operation from 100VAC - 240VAC +/-15%
  • Analog fully routable inputs
  • External I/O Port for Remote On/Off and fault monitoring
  • Highly Efficient Class D Output Stage for low AC Current draw

More +

Product Specs

Channels 2
Power Rating 2 ohms: 350W
4 ohms: 700W
8 ohms: 700W
70V/100V: 700W
Inputs Analog: Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity (2CH = 2 inputs, 4CH = 4 inputs, 8CH = 8 inputs)
Dante: 8 x 8 Dante at 96kHz or 48kHz, Multicast or Unicast
AES 67: Configurable via the Dante Controller Software
THD+N 0.1% (20Hz to 20kHz)
Frequency Response +/- 0.5 dB @ 4?, 8?, 70V, 100V, -2.5dB @ 20kHz at 2?
Signal to Noise Level 105dB (20Hz to 20kHz referenced to 8?)
Crosstalk 70dB (20Hz to 20kHz)
Amplifier Output Classification Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
DSP Architecture Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
Input Matrix Routable matrix; any input to any output with primary and secondary input priority
Crossovers Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
Parametric EQ 8 Band Parametric EQ per channel
Output Delay 100ms per channel
Output Protection DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
User Adjustable Limiting Peak Voltage and RMS Voltage
Load Monitoring Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
User Interface Web Browser User Interface, 3rd Party API control, or CLOUD control
External I/O External I/O In: Toggles Remote On/Off
External I/O Out: Indicates Amplifier Health
AC Mains 100VAC - 240VAC +/- 15% 50Hz or 60Hz
Power Supply Universal Switch Mode Power Supply with Power Factor Correction (No PFC in 84D, 164D, 88D, and 168D)
Dimensions (L x W x H) Product: 14.25" x 19" x 1U (362mm x 482mm x 1U) x 1U (362mm x 482mm x 1U)
Shipping: 20" x 22.75" x 3.75" (508mm x 578mm x 95.25mm)
Weight 352D and 702D: 10lbs / 3.4kg | Shipping: 17.4lbs / 7.9kg
354D and 704D: 14lbs / 4kg | Shipping: 18.7lbs / 8.5kg
84D and 164D: COMING SOON | COMING SOON
88D and 168D: COMING SOON | Shipping: COMING SOON
Cooling Front to Rear Variable Fan Speed Cooling
Fan Noise at idle is 50dB @ 1m
Fan Noise at 50% is 57dB @1m
Fan Noise at full speed is 63dB @ 1m
