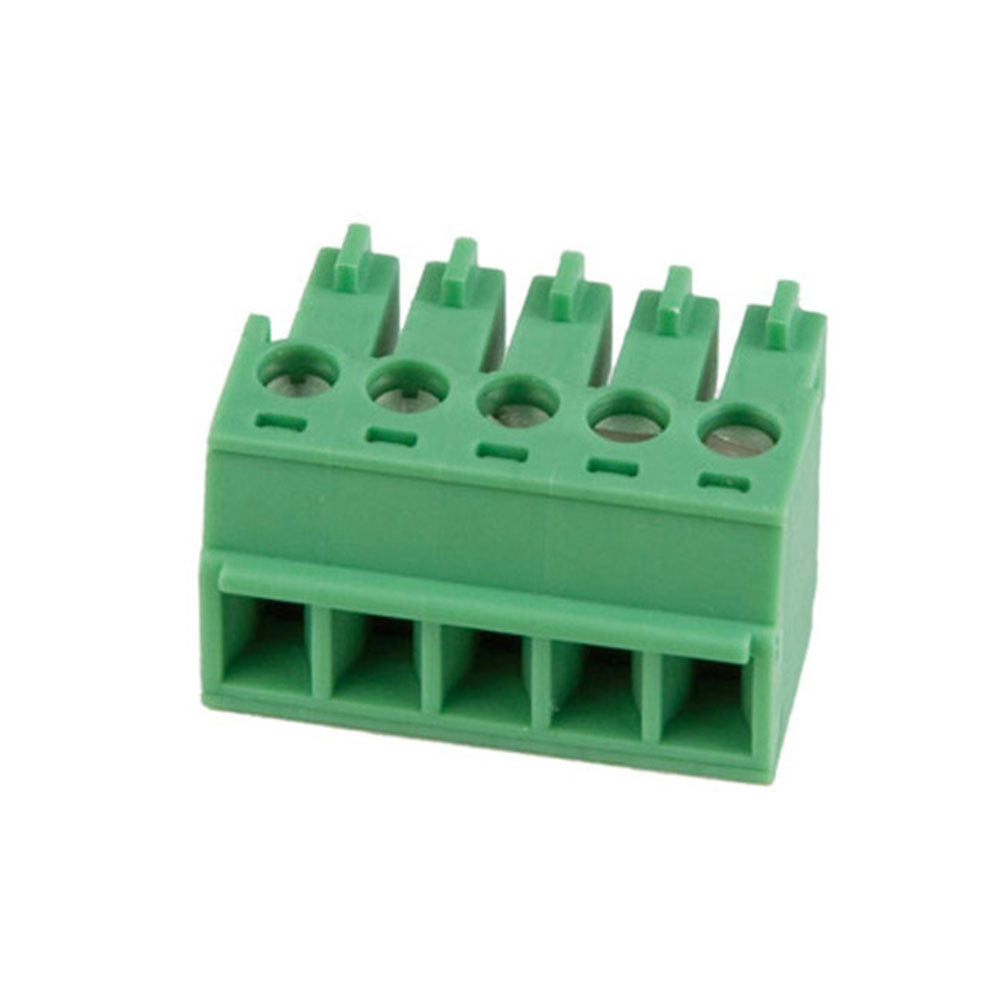

Lectrosonics 21580 - 5-Pin Euroblock Connector for DM Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Lectrosonics 21580 5-pin depluggable connector for use with DM Series Processors. The analog audio inputs and outputs for DM Series units are connected through these 5 pin connectors. Strip the insulation of your cable back 1/8 to 3/16 of an inch, but do not tin (apply solder to) the leads. Insert the wire into a the de-pluggable connector, leaving less than 1 mm of bare wire exposed, then tighten the retaining screw.
Lectrosonics 21580 5-pin depluggable connector for use with DM Series Processors. The analog audio inputs and outputs for DM Series units are connected through these 5 pin connectors. Strip the insulation of your cable back 1/8 to 3/16 of an inch, but do not tin (apply solder to) the leads. Insert the wire into a the de-pluggable connector, leaving less than 1 mm of bare wire exposed, then tighten the retaining screw.
