Lectrosonics ALP690 - Passive LPDA Antenna
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

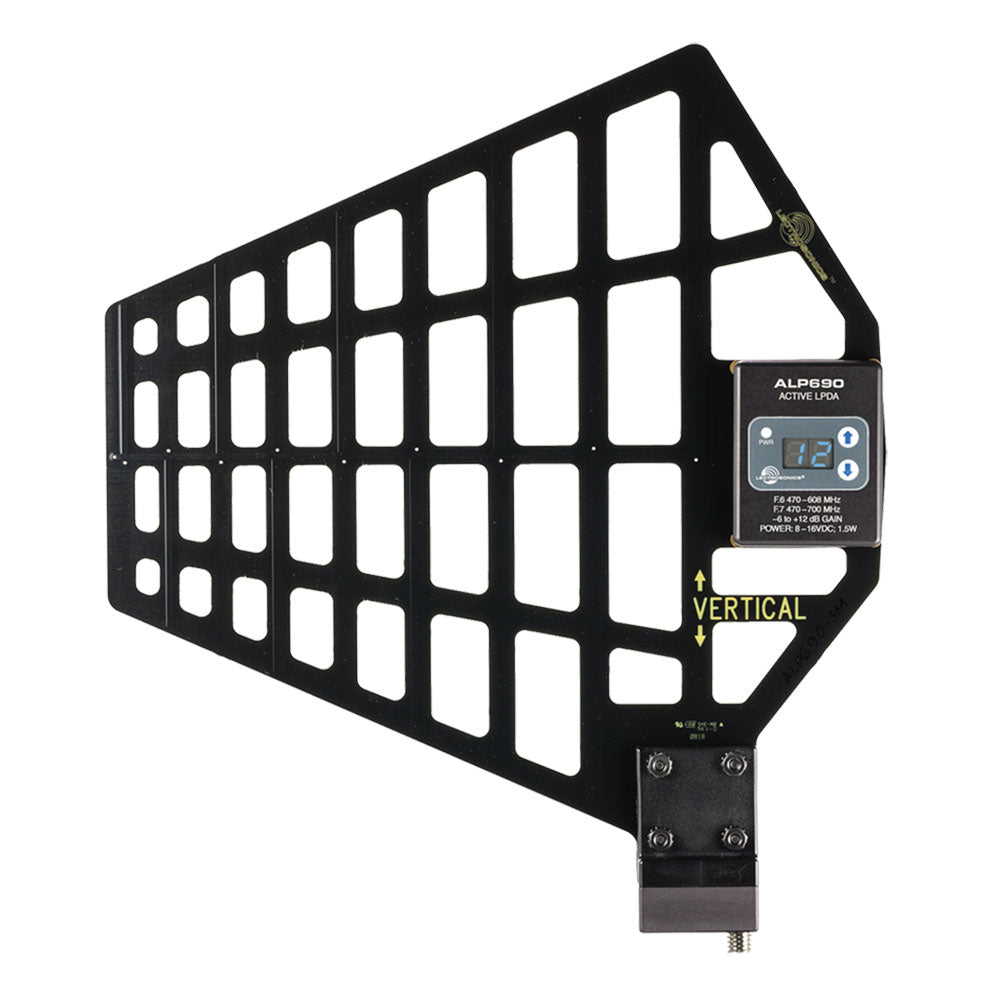

The ALP690 is a high-performance LPDA (log periodic dipole array) antenna with a built-in RF amplifier for use with wireless microphone receivers in location or studio production. The design delivers +4 dBd of gain in a directional pattern to extend operating range, and the amplifier applies gain to overcome loss in long coaxial cable runs.
The antenna is formed with copper traces on a .133" thick glass epoxy high-pressure thermoset plastic laminate material with a durable finish. The skeletal structure reduces wind loading in outdoor use.
The antenna is powered by DC bias inserted on the coaxial cable connected to the 50 ohm BNC jack. This power can be supplied by a Venue Series receiver, an active multicoupler or an inline BIAS-T.
Features:
- Broad bandwidth for multi-channel systems
- Directional pattern with 4 dBd RF gain
- Built-in RF amplifier with adjustable gain for offsetting cable loss
- Keypad and membrane switches with LED readout for quick setup
- Automatically switches to passive mode when no DC power is present on the coaxial cable
- Durable finish and weather tolerant construction for indoor/outdoor use
- Skeletal structure reduces wind loading
- Versatile mounting options with the supplied mount and optional mounting adapter kit
| Pattern Gain | +7 dBi (isotropic) +4 dBd (over dipole) |
| Passband | Passive: 450 - 850 MHz Active: 470 - 608 or 470 - 700 MHz, selectable |
| RF Amplifier Gain Range | -6 to +12 dB in 1 dB steps |
| Third Order Intercept | +27 dBm @ input; +41 dBm output |
| Weight | 13 ozs.; 355 grams |
| Power Requirements | DC bias on center pin of coaxial cable; 8V to 16V DC; 1.5 W max.; polarity protected |
The ALP690 is a high-performance LPDA (log periodic dipole array) antenna with a built-in RF amplifier for use with wireless microphone receivers in location or studio production. The design delivers +4 dBd of gain in a directional pattern to extend operating range, and the amplifier applies gain to overcome loss in long coaxial cable runs.
The antenna is formed with copper traces on a .133" thick glass epoxy high-pressure thermoset plastic laminate material with a durable finish. The skeletal structure reduces wind loading in outdoor use.
The antenna is powered by DC bias inserted on the coaxial cable connected to the 50 ohm BNC jack. This power can be supplied by a Venue Series receiver, an active multicoupler or an inline BIAS-T.
Features:
- Broad bandwidth for multi-channel systems
- Directional pattern with 4 dBd RF gain
- Built-in RF amplifier with adjustable gain for offsetting cable loss
- Keypad and membrane switches with LED readout for quick setup
- Automatically switches to passive mode when no DC power is present on the coaxial cable
- Durable finish and weather tolerant construction for indoor/outdoor use
- Skeletal structure reduces wind loading
- Versatile mounting options with the supplied mount and optional mounting adapter kit
| Pattern Gain | +7 dBi (isotropic) +4 dBd (over dipole) |
| Passband | Passive: 450 - 850 MHz Active: 470 - 608 or 470 - 700 MHz, selectable |
| RF Amplifier Gain Range | -6 to +12 dB in 1 dB steps |
| Third Order Intercept | +27 dBm @ input; +41 dBm output |
| Weight | 13 ozs.; 355 grams |
| Power Requirements | DC bias on center pin of coaxial cable; 8V to 16V DC; 1.5 W max.; polarity protected |
