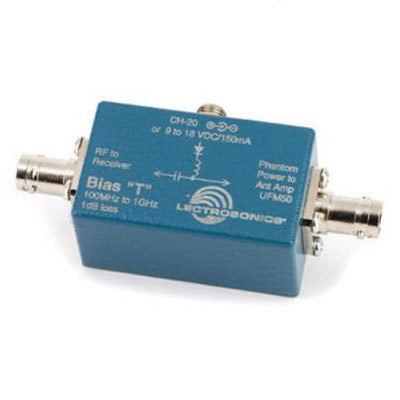

Lectrosonics BIAST - DC Power Module for Coaxial Antenna Cable
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The BIAS T is used to apply DC power to a coaxial antenna line for remotely powering the UFM230 filter/amp. The DC power applied to the BIAS T (9 to 16 VDC) appears on the input port of the BIAS T to power the UFM230 through the coaxial cable, but is isolated from the output port so it will not be applied to the input of the receiver.
The BIAS T is normally placed near the receiver being fed by the coaxial cable, where power is available. The UFM230 filter/amp and antenna are placed at the opposite end of the coaxial cable, close to the antenna.
- Power supply (not included with BiasT)
- 110V AC input
- 12V DC regulated output required for powering the BIAS T
(CH20, DCR12/A8U and DCR12/A4U will work.)
http://www.lectrosonics.com/images/Manuals/biastman.pdf
The BIAS T is used to apply DC power to a coaxial antenna line for remotely powering the UFM230 filter/amp. The DC power applied to the BIAS T (9 to 16 VDC) appears on the input port of the BIAS T to power the UFM230 through the coaxial cable, but is isolated from the output port so it will not be applied to the input of the receiver.
The BIAS T is normally placed near the receiver being fed by the coaxial cable, where power is available. The UFM230 filter/amp and antenna are placed at the opposite end of the coaxial cable, close to the antenna.
- Power supply (not included with BiasT)
- 110V AC input
- 12V DC regulated output required for powering the BIAS T
(CH20, DCR12/A8U and DCR12/A4U will work.)
http://www.lectrosonics.com/images/Manuals/biastman.pdf
