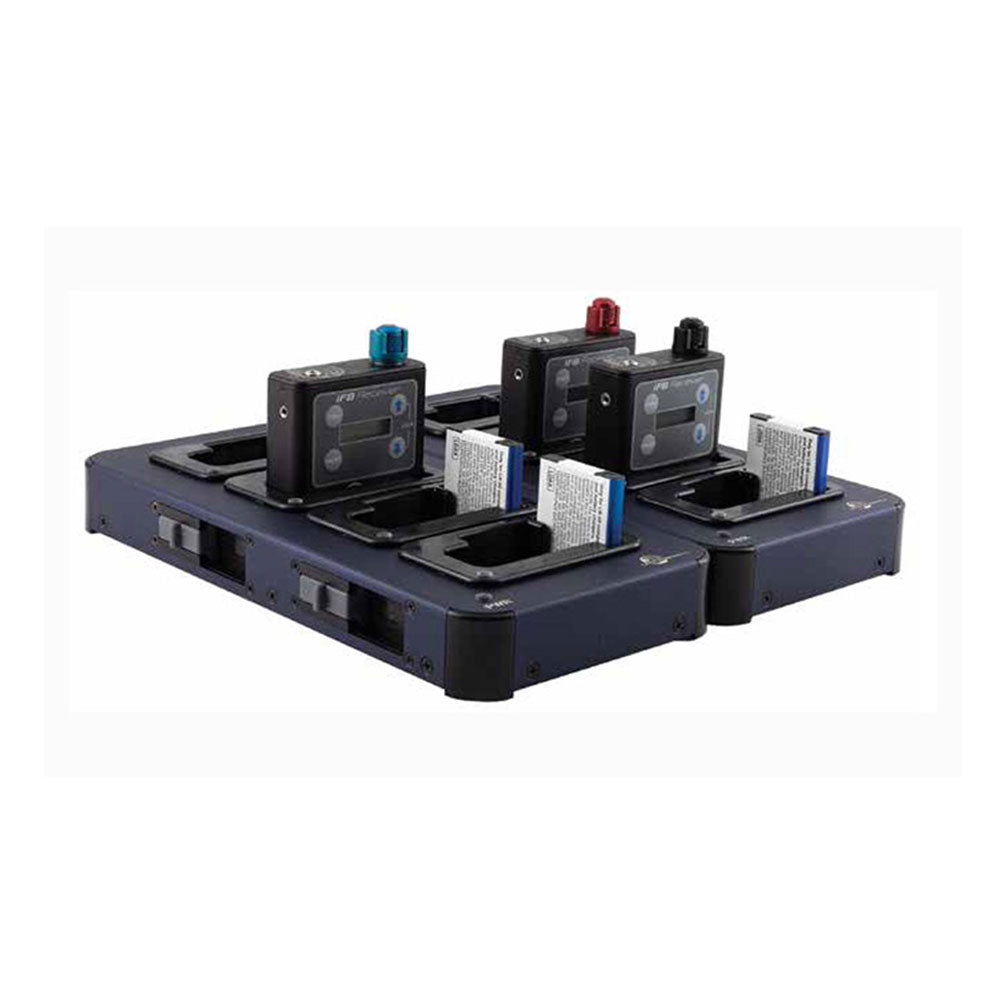

Lectrosonics CHSIFBR1B - IFBR1B Receiver Battery Charging Station
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This battery charging station provides a convenient and organized means of recharging any combination of up to 4 LB-50 batteries or IFBR1B receivers. Each charging module may be daisy-chained to 3 additional modules using a single DCR5/A9U power supply for a total of up to 16 units charging at once (LB50's and/or IFBR1Bs). The CHSIFBR1B charging station features an individual LED on each charging module. Red indicates the battery is charging and green indicates the battery is completely charged. Each charging module is reverse polarity protected and individually fused (10A one-time fuse).
NOTE: The CHSIFBR1B does not ship standard with the DCR5/9AU power supply Ð it must be ordered separately.
Features:
- Each module charges up to 4 LB-50 Lithium Ion batteries or IFBR1B receivers
- Connect up to 4 CHSIFBR1Bs using a single power supply (16 batteries/IFBR1Bs charging at once)
- Individual charging circuits and status indicators
| Dimensions | 4.82 in. wide (122.30 mm) (including connectors) 1.20 in. deep (30.43 mm) 9.00 in. high (228.60 mm) |
| Weight | 1.04 lbs. (471.74 grams) |
| Battery charging time | 3 hours |
| Power supply | DCR5/9AU |
| Power requirements | 100-240VAC, 50-60Hz, 2A max |
This battery charging station provides a convenient and organized means of recharging any combination of up to 4 LB-50 batteries or IFBR1B receivers. Each charging module may be daisy-chained to 3 additional modules using a single DCR5/A9U power supply for a total of up to 16 units charging at once (LB50's and/or IFBR1Bs). The CHSIFBR1B charging station features an individual LED on each charging module. Red indicates the battery is charging and green indicates the battery is completely charged. Each charging module is reverse polarity protected and individually fused (10A one-time fuse).
NOTE: The CHSIFBR1B does not ship standard with the DCR5/9AU power supply Ð it must be ordered separately.
Features:
- Each module charges up to 4 LB-50 Lithium Ion batteries or IFBR1B receivers
- Connect up to 4 CHSIFBR1Bs using a single power supply (16 batteries/IFBR1Bs charging at once)
- Individual charging circuits and status indicators
| Dimensions | 4.82 in. wide (122.30 mm) (including connectors) 1.20 in. deep (30.43 mm) 9.00 in. high (228.60 mm) |
| Weight | 1.04 lbs. (471.74 grams) |
| Battery charging time | 3 hours |
| Power supply | DCR5/9AU |
| Power requirements | 100-240VAC, 50-60Hz, 2A max |
