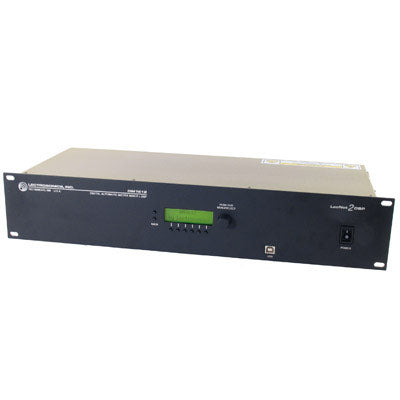

Lectrosonics DM1612F Digital Matrix Audio Processor


  • Dale #:

    LECT-DM1612F
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The DM1612F is a powerful digital audio processing, mixing and routing system. The primary applications are sound reinforcement and conferencing in boardrooms, courtrooms, worship centers, distance learning systems, hotels and other applications with multiple microphones and loudspeakers. The des... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The DM1612F is a powerful digital audio processing, mixing and routing system. The primary applications are sound reinforcement and conferencing in boardrooms, courtrooms, worship centers, distance learning systems, hotels and other applications with multiple microphones and loudspeakers. The design represents a milestone in DSP technology in its basic architecture and in its processing speed and efficiency.

The basic architecture consists of 16 mic/line inputs and 12 outputs with a full DSP-based crosspoint matrix that allows every input to be routed to any or all outputs. Following the A-D conversion at each input, the signal passes through multiple DSP filters, ADFE (automatic digital feedback eliminator), a compressor and a digital delay. In the matrix, gain is adjustable from -69 to +20 dB in 1 dB steps at each crosspoint. Each of the 12 outputs provides a digital delay, multiple DSP filters and a compressor/limiter.

AMX® is a registered trademark of AMX Corp.
Crestron® is a registered trademark of Crestron Electronics, Inc.

  • 16 mic/line inputs, 12 line outputs
    (4 outputs are mic/line switchable)
  • 16 x 12 digital matrix mixing; gain is adjustable from
    -69 to +20 dB
  • Proportional gain auto mixing algorithm with AutoSkew™
    - US Patent 5,414,776 and 5,402,500
  • Auto mixing operates at the output of the matrix - each input channel can participate differently in each output mix
  • Each output has its own NOM mixing bus
  • 6 filter stages plus compressor, ADFE and delay on each input
  • 9 filter stages plus compressor, limiter and delay on each output
  • 128 macros available for storing up to 64 commands per macro
  • USB and RS-232 interfaces for setup and control
  • Digital I/O ports for daisy chaining and to connect other LecNet 2 devices
  • AMX© and CRESTRON™ compatible
  • Simultaneous LecNet2 and Third-Party control
  • Continuous fan cooling

More +

Product Specs

Audio inputs
Gain-10 dB to +60 dB, programmable in 1 dB steps
Input impedance2.5 k Ohm
Phantom voltage15 V, programmable
Connector5-pin Phoenix
Audio outputsFloating balanced, either side can be grounded
Nominal level0 dBu all outputs, -40 dBu selectable on outputs 9 through 12
Output impedance
Line Only• 50 Ohms differential line level only outputs
Mic/Line• 600 Ohm differential programmable outputs at line level
• 130 Ohm differential programmable outputs at microphone level
Input Dynamic Range96 dB at -50 dBu input level 102 dB at all other levels
(unweighted 20 - 20 kHz)
Output Dynamic Range105 dB (unweighted 20 - 20 kHz)
Audio Performance
IMD + noise0.1% max.0.02% nominal input level
THD + noise0.1% (worst case) 0.02% nominal input level
EIN-126 dBu
Connectors
Audio I/O5-pin Phoenix
ExpansionRJ45
Logic I/O:DB25
SerialStandard USB and mini TRS
Proprietary network
Physical levelLVDS (Low Voltage DIfferential Signal) high speed
ConnectorFour RJ-45
Cable qualityShielded CAT-5
Transmission speed50 Mbits/s
 Programmable control inputs
Number of inputs:22
Analog voltage range0-5V
Logic inputTTL, LVTTL, CMOS, LVCMOS
 Programmable control outputs
Number of logic outputs16
Logic controlactive low
Max sink current100 mA
Max supply voltage40 V
Supply voltage for control I/O5 V
Max current750 mA
Power requirements100-240 VAC, 47-63 Hz
Power consumption30 Watts
Fan CoolingContinuous; DM1612F and DM1624F only
Dimensions
DM812(1.75 in. high) (7.5 in. deep) (19 in. wide)
DM1612F(3.5 in. high) (7.5 in. deep) (19 in. wide)
DM1624F(3.5 in. high) (7.5 in. deep) (19 in. wide)
Weight
DM812(3lb 12oz) (1.7012 kg )
DM1612F(5lb 4oz) (2.3814 kg )
DM1624F(5lb 6oz) (2.4381 kg)

More +
