Lectrosonics DSQD - 4-Channel Digital Wireless Receiver with Dante

Dale #:
LECT-DSQD
Availability:
Not in Stock - Reserve Yours
This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

The DSQD Half Rack Receiver with analog and digital Dante¨ network audio outputs utilizes the Lectrosonics signature digital architecture with remarkable audio quality and ultra-low latency. The receiver includes an extended operating range rivaling the best analog and Digital Hybrid Wireless¨ sy... Read More

Retail Price: $7,938.00 Our Price: $5,675.00

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828

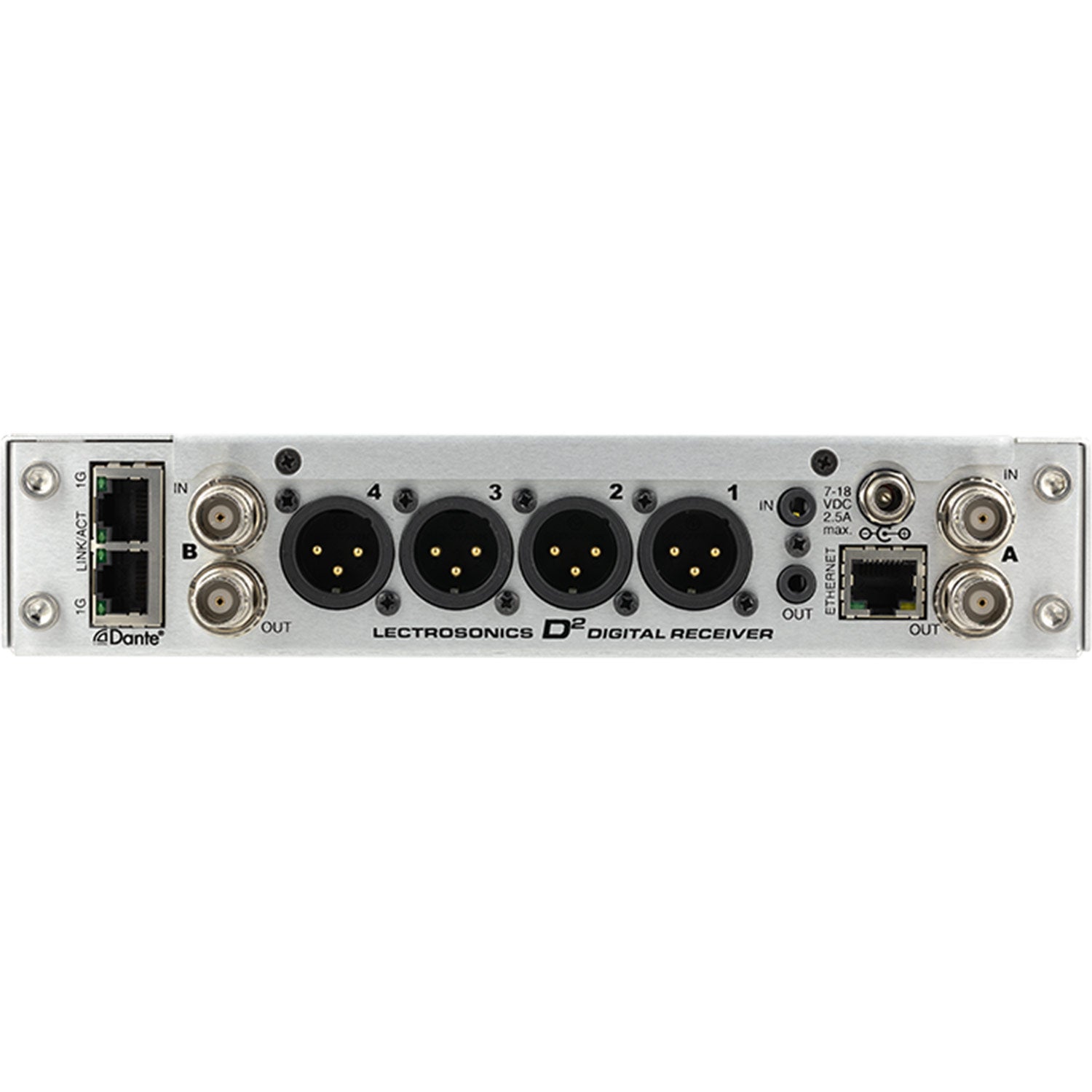

The DSQD Receiver is a four-channel design with a host mainframe that contains the DSP, microprocessor, antenna multicoupler and control interface. Antenna ports on the rear panel accept input from remote antennas, with a loop-thru output to another mainframe using the internal multicoupler. A kit is also available to mount antenna inputs (BNC connectors) on the front panel.

Features:

Four-channel, half-rack design
Continuously tunable tracking filters covering 470.100 - 614.375 MHz
Compatible with stereo and mono digitalÊtransmitters, and Digital Hybrid Wireless¨
transmitters.Ê
Built-in wideband antenna multicoupler with loop-thru for additional receivers
Antenna bias power enabled from the front panel (fused and over-temperature protected)
IR bi-directional port for transmitter setup
Analog and Digital audio outputs with TalkBack (in applicable RX modes)
Ethernet and USB interface

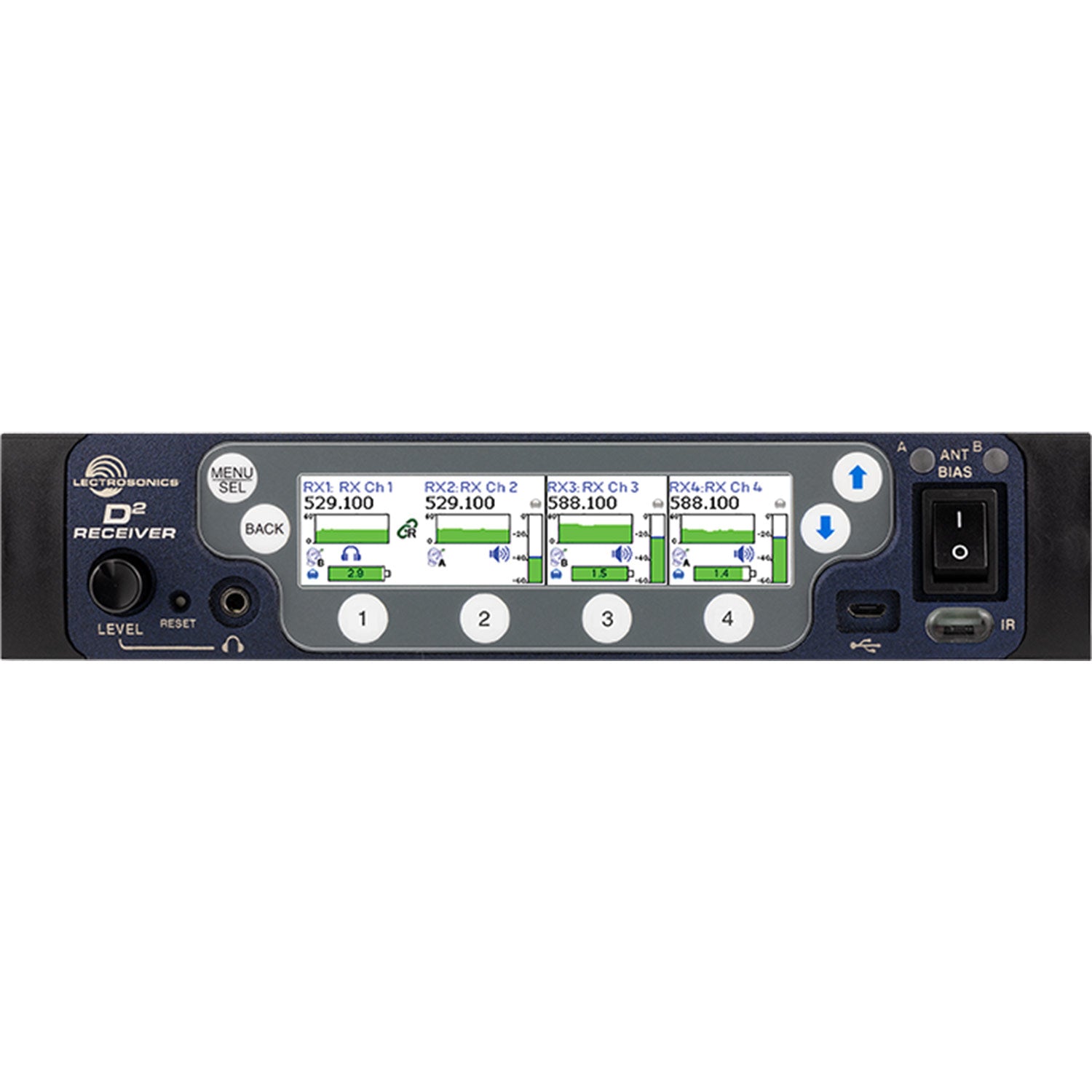

DSQD Front Panel

Headphone Monitor
Monitor any individual audio channel, or a stereo mix between pairs. Volume knob recesses into front panel.

LCD Control Panel
Easy navigation of all setup parameters is provided by a full color, backlit, LCD screen and membrane push buttons. The high resolution display provides fantastic monitoring of all receiver parameters.

2-Way IR
A bidirectional IrDA interface allows quick syncing of settings and encryption keys to transmitters with the push of a button.

USB Port
Easily interface to Wireless Designer or third-party software via the standard USB port, greatly accelerating setup time and expanding system monitoring capabilities.

LED Indicators
Two LEDs provide positive indication of antenna bias power state.

More +

Operating Spectrum	470.100 - 614.375 MHz
Frequency Adjustment Range	25 kHz steps
Sampling Size and Rate	24-bit, 48 kHz
Digital Modulation	8PSK with Forward Error Correction
Data Encoding	Proprietary ADPCM
Encryption	AES 256-CTR (per FIPS 197 and FIPS 140-2)
Latency	Digital Source	1.0 ms plus Dante network
	Analog Source	<1.4 ms
Audio Performance	Frequency Response	20 Hz - 20 KHz, +\-1 dB
	THD+N	0.05% (1 KHz @ -10 dBFS)
	Dynamic Range	108 dB A-wtd, NR=NORMAL
	Adjacent Channel Isolation	>85 dB
Diversity Technique	Noiseless antenna switching
Sensitivity	-98 dBm for 10-5 BER
Antenna Inputs/Outputs	Dual BNC female, 50 ohm impedance
Audio Outputs	XLR	Balanced, -35 to +8 dBu
	Headphone	1/4 inch phone jack
	Dante	RJ45
External DC Power	7 to 18 VDC; 2.5A (max)
Weight	1.95 lbs.; 880 grams
Dimensions	8.375 x 1.75 x 7.375 in. 213 x 44.5 x 187 mm.
